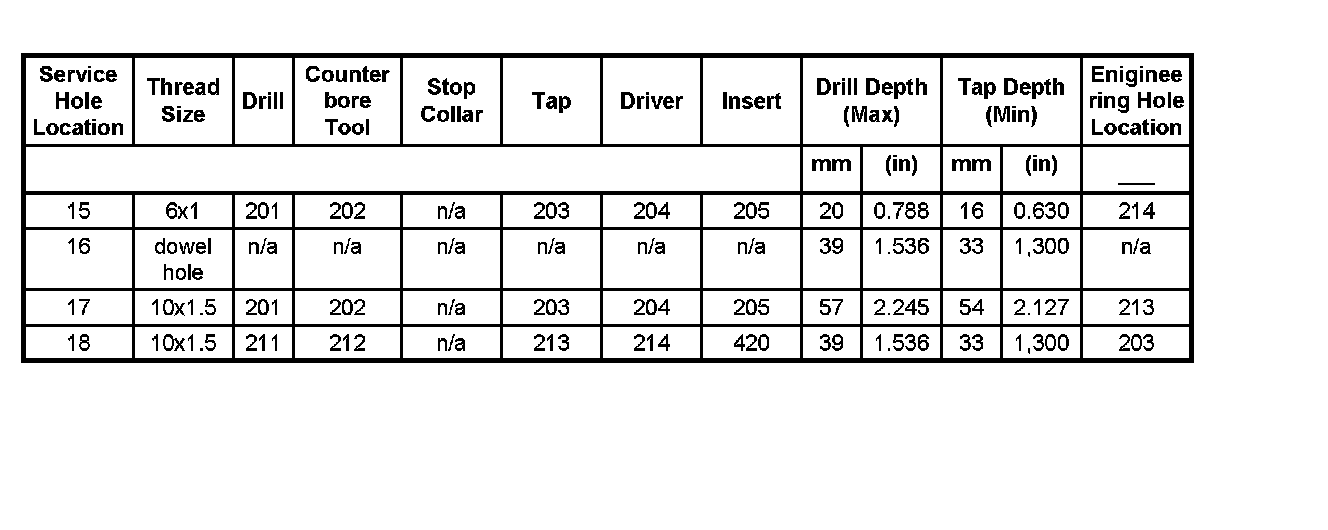

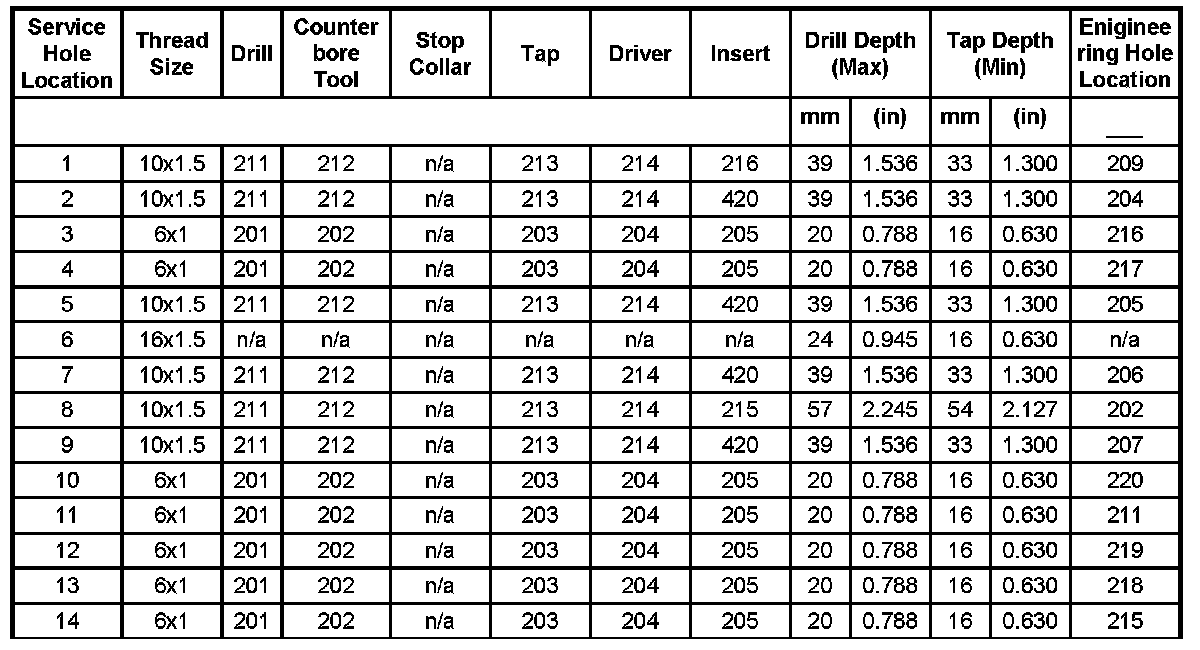

Thread Repair Specifications
>>

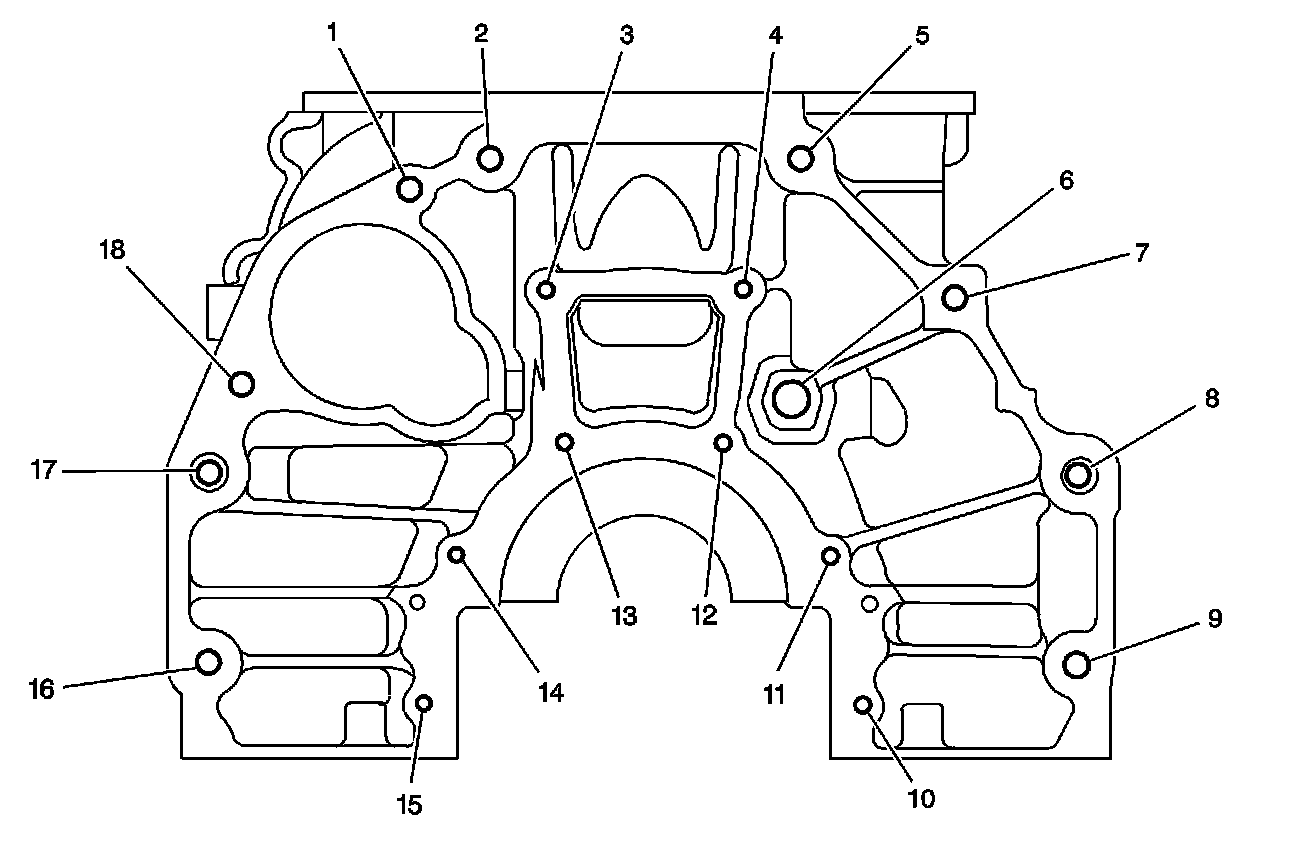

Engine Block - Rear View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Block - Rear View
Engine Block - Rear View
