Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the engine cover

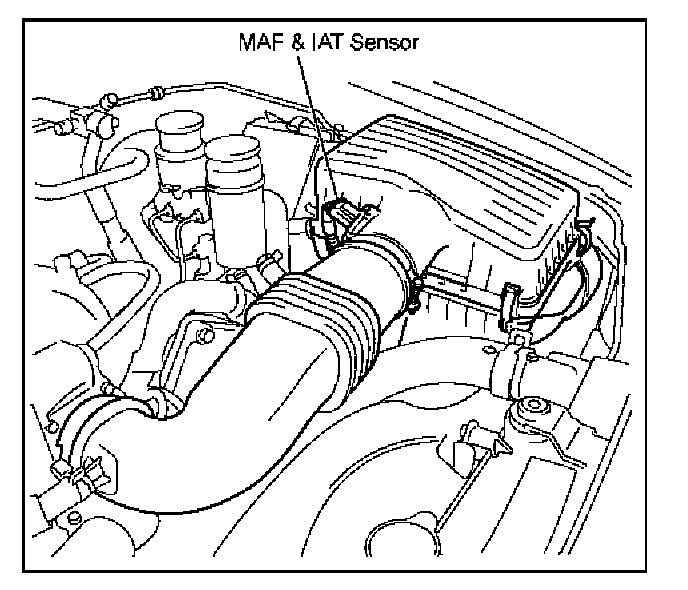

3. The MAF/IAT sensor is located in the intake air duct, behind the throttle body.




4. Disconnect the electrical connector from the IAT sensor.
5. Remove two bolts and the MAF/IAT sensor from the intake air duct.

Installation Procedure

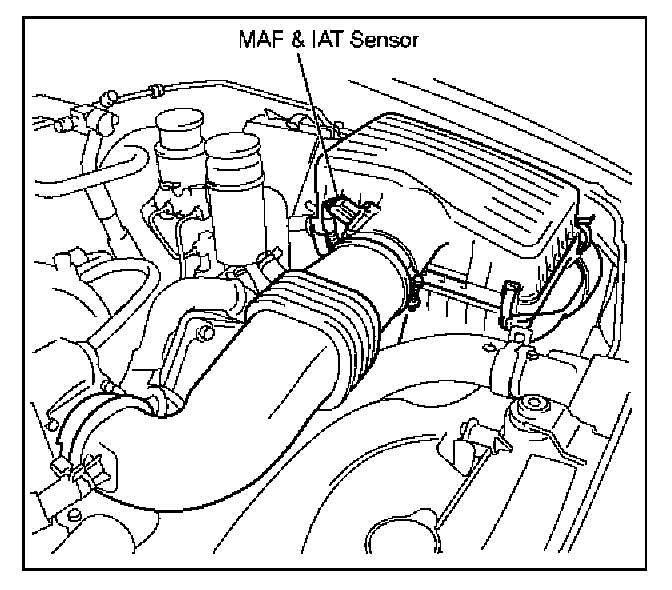

1. Install the MAF/IAT sensor and mounting bolts.




2. Correct the IAT electrical connector.
3. Install the engine cover.
4. Connect the negative battery cable.
