Knock Sensor: Service and Repair

REMOVAL
1. Disconnect battery ground cable
2. Remove common chamber.
- Refer to removal procedure for Common Chamber.
3. Wiring connector from knock sensor.

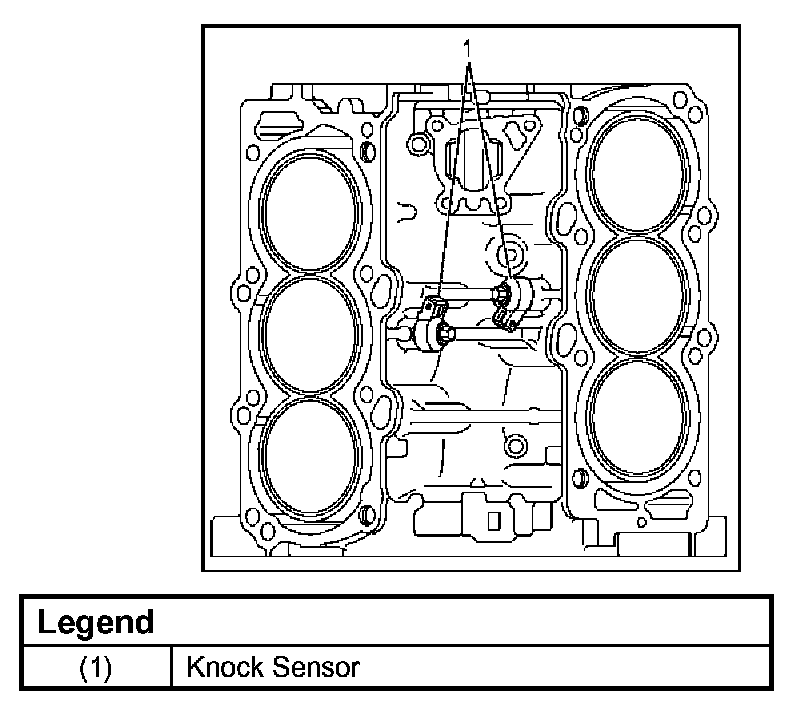

4. Remove knock sensor from cylinder block.

INSTALLATION
1. Install knock sensor into the cylinder block.

Torque: 20 Nm (14.8 lb ft)

2. Reconnect wiring connector to knock sensor.
3. Install common chamber.
- Refer to installation procedure for Common Chamber.
