Knock Sensor: Testing and Inspection

Knock Sensing System Check

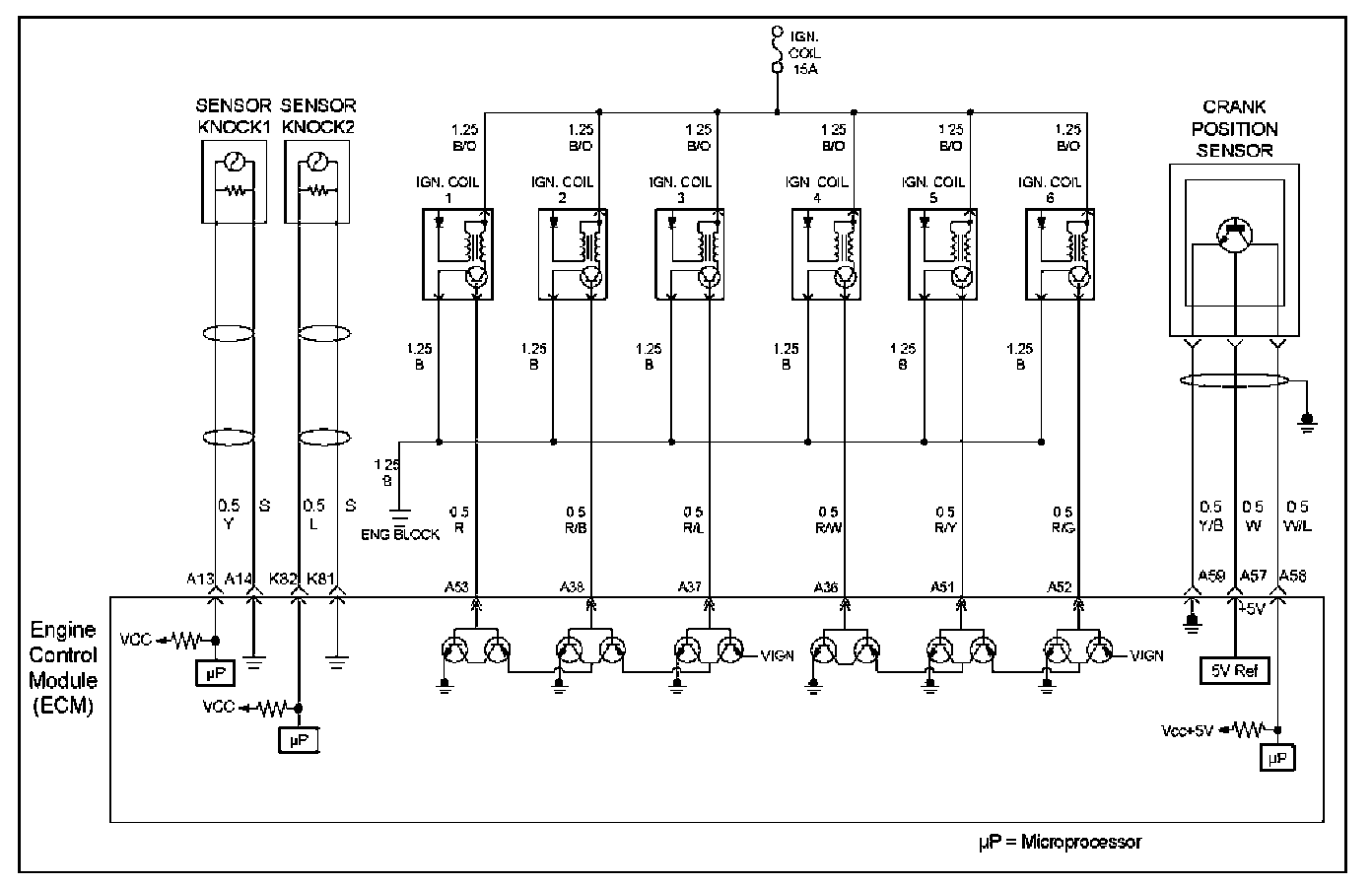

Circuit Description




If the low octane fuel or the bad fuel is used, engine knocking will occur. The knock sensor is used to monitor whether the knocking is occurring or not and its signal is sent to ECM. Two knock sensors are located on the engine block between the left bank and the right bank (one sensor is on the each bank) When ECM detects the knocking based on the knock signal from the sensor, ECM makes spark retard until the knock disappears.

Diagnostic Aids
The low octane fuel or the bad fuel may make the engine knock. If the engine knock occurs, the specification of the fuel, which is use, should be checked.

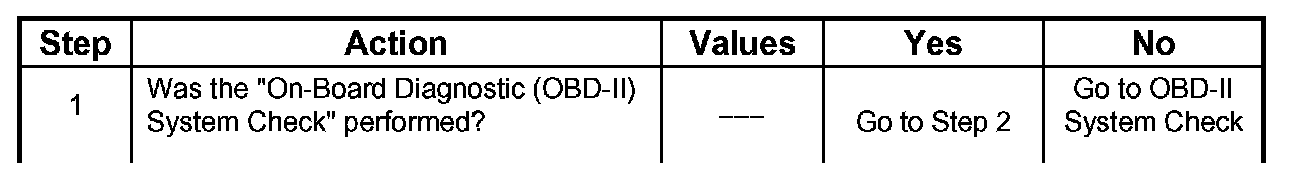

Step 1:

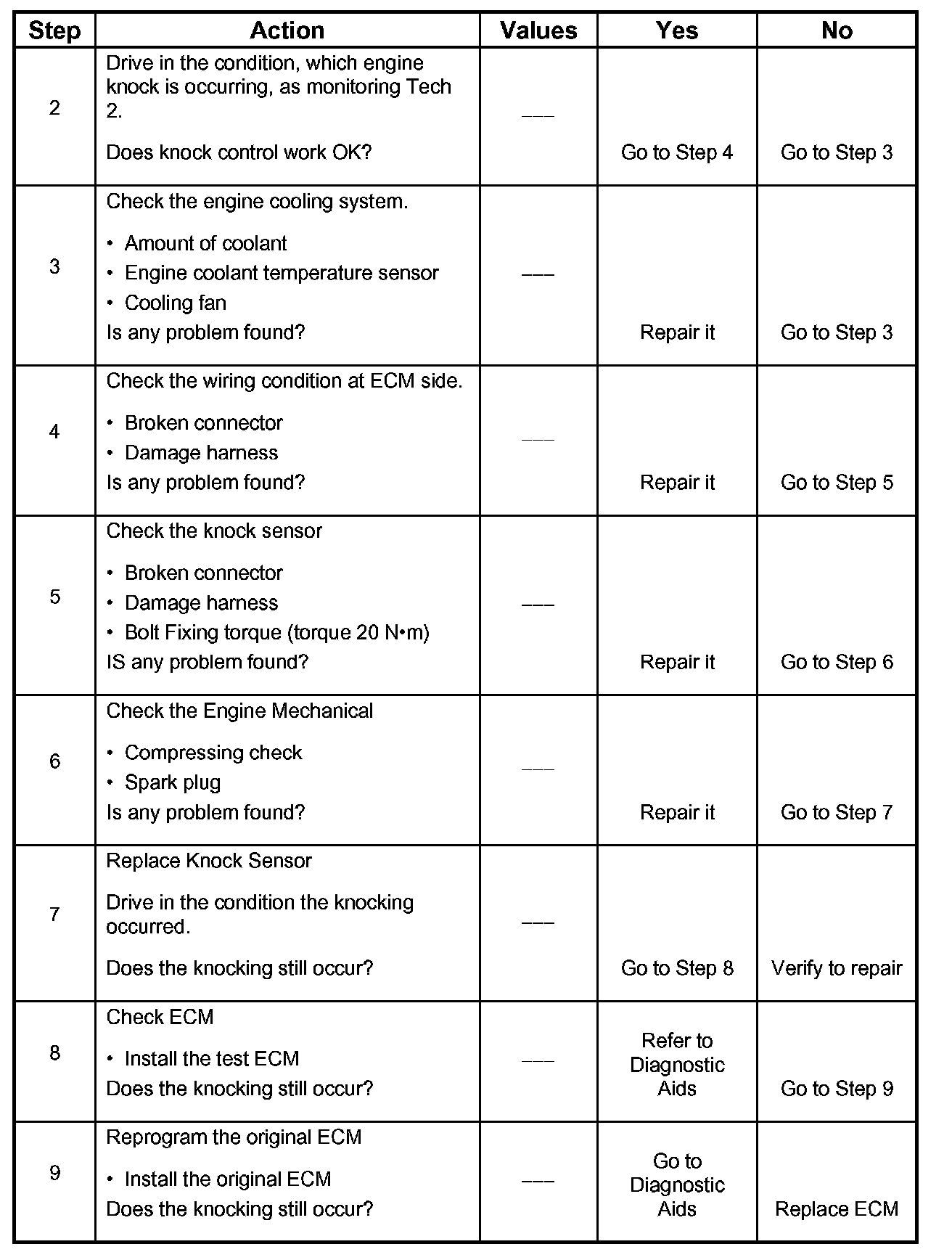

Steps 2 - 9:

Knock Sensing System Check
