Throttle Position Sensor: Service and Repair

Throttle Position (TP) Sensor

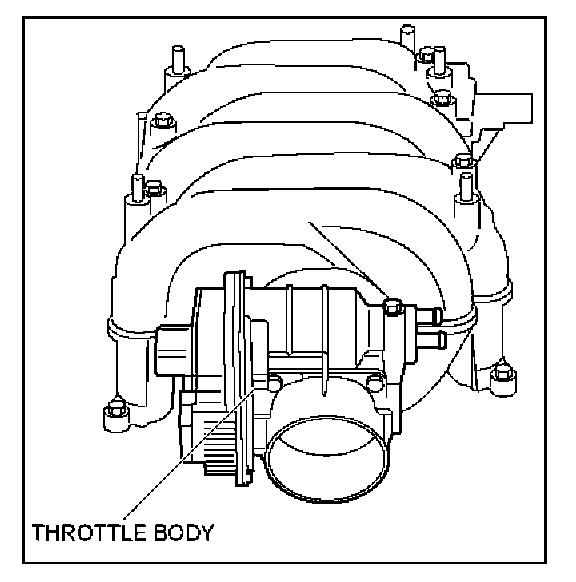

Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the TPS electrical connector.




3. Remove the bolts and the TP sensor from the throttle body.

NOTE: Do not clean the TP sensor by soaking it in solvent. The sensor will be damaged as a result.

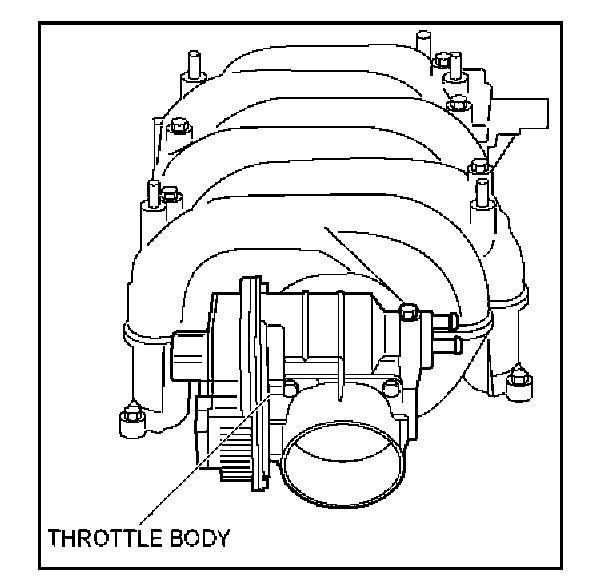

Installation Procedure




1. Connect the TP electrical connector.
2. Install the negative battery cable.
