(A) Advance (Initial Position)

The spool valve moves to right-hand side, the vane pump rotates to advance side.

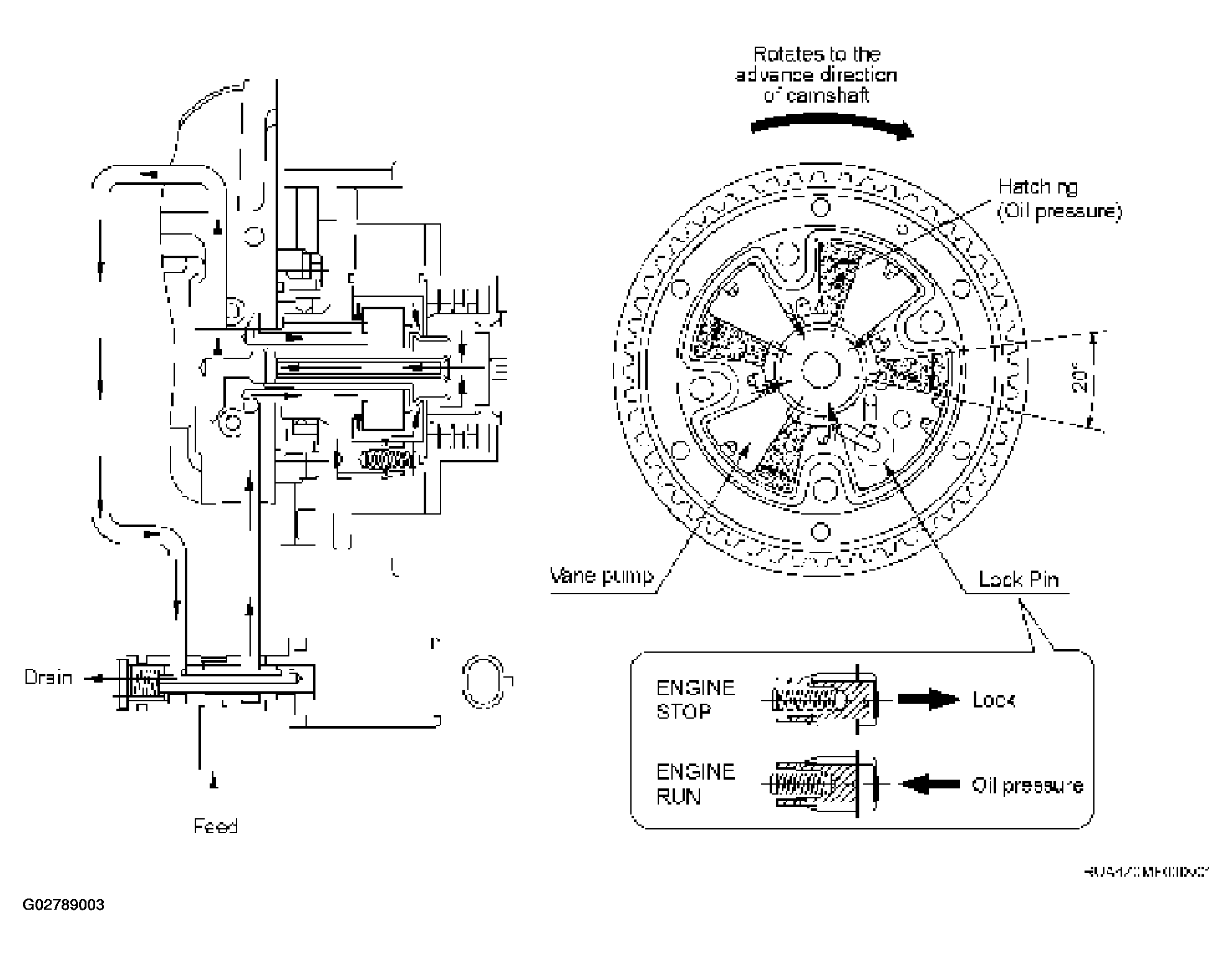

Fig 1: Identifying Spool Valve Moves To Right-Hand Side
G02789003Courtesy of ISUZU MOTOR CO.
