(B) Retard

The spool valve of OCV moves to left-hand side, the vane pump rotates to retard side.

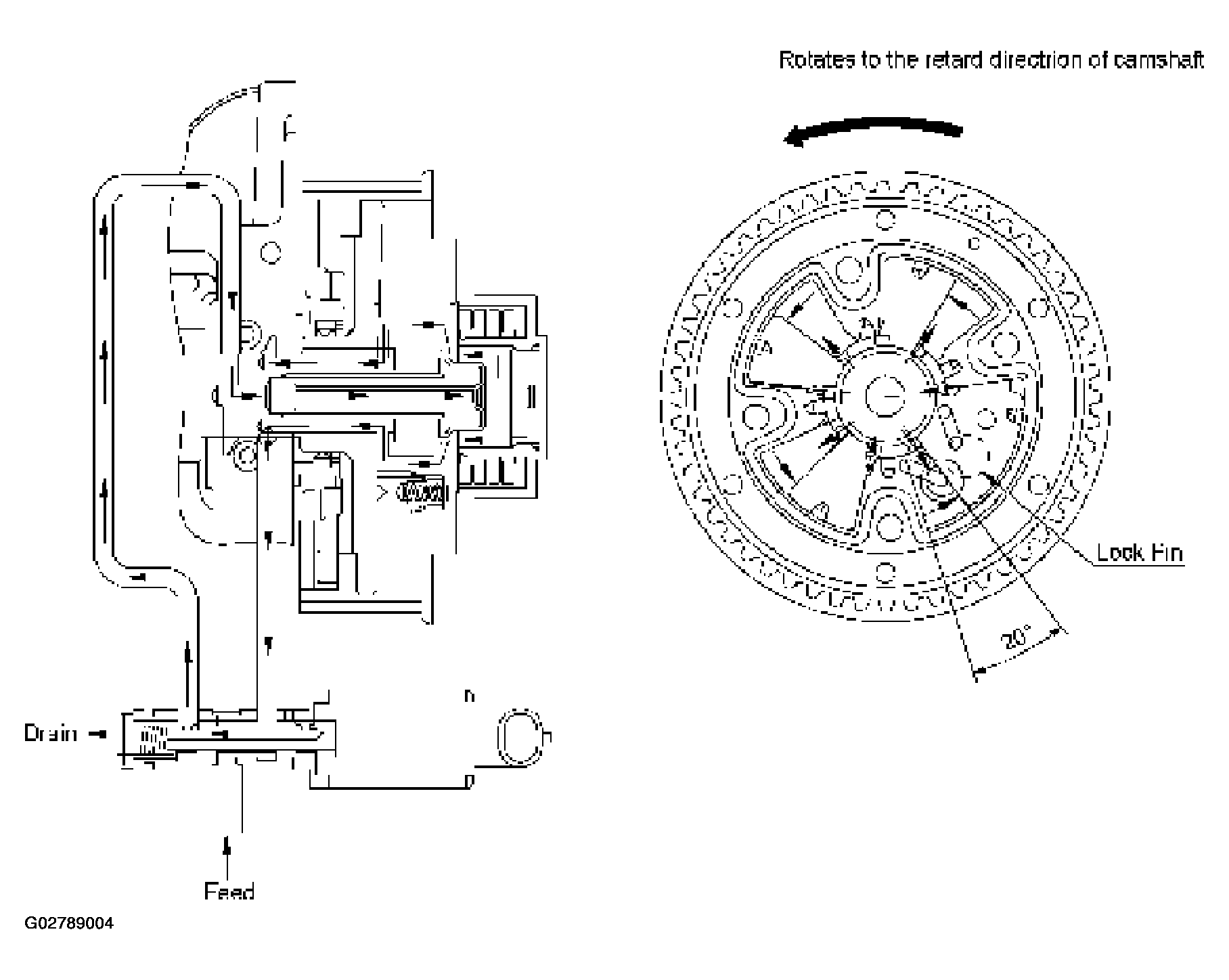

Fig 1: Identifying Spool Valve Of OCV Moves To Left-Hand Side
G02789004Courtesy of ISUZU MOTOR CO.
