Test Description

Number(s) below refer to the step number(s) on the Diagnostic Chart .

1. 2. This step verifies that the problem is present at idle.
2. 4. A voltage reading of less than 4 or over 5 volts at the MAF sensor signal circuit indicates a fault in the wiring or a poor connection.
3. 5. This verifies that ignition feed voltage and a good ground are available at the MAF sensor.

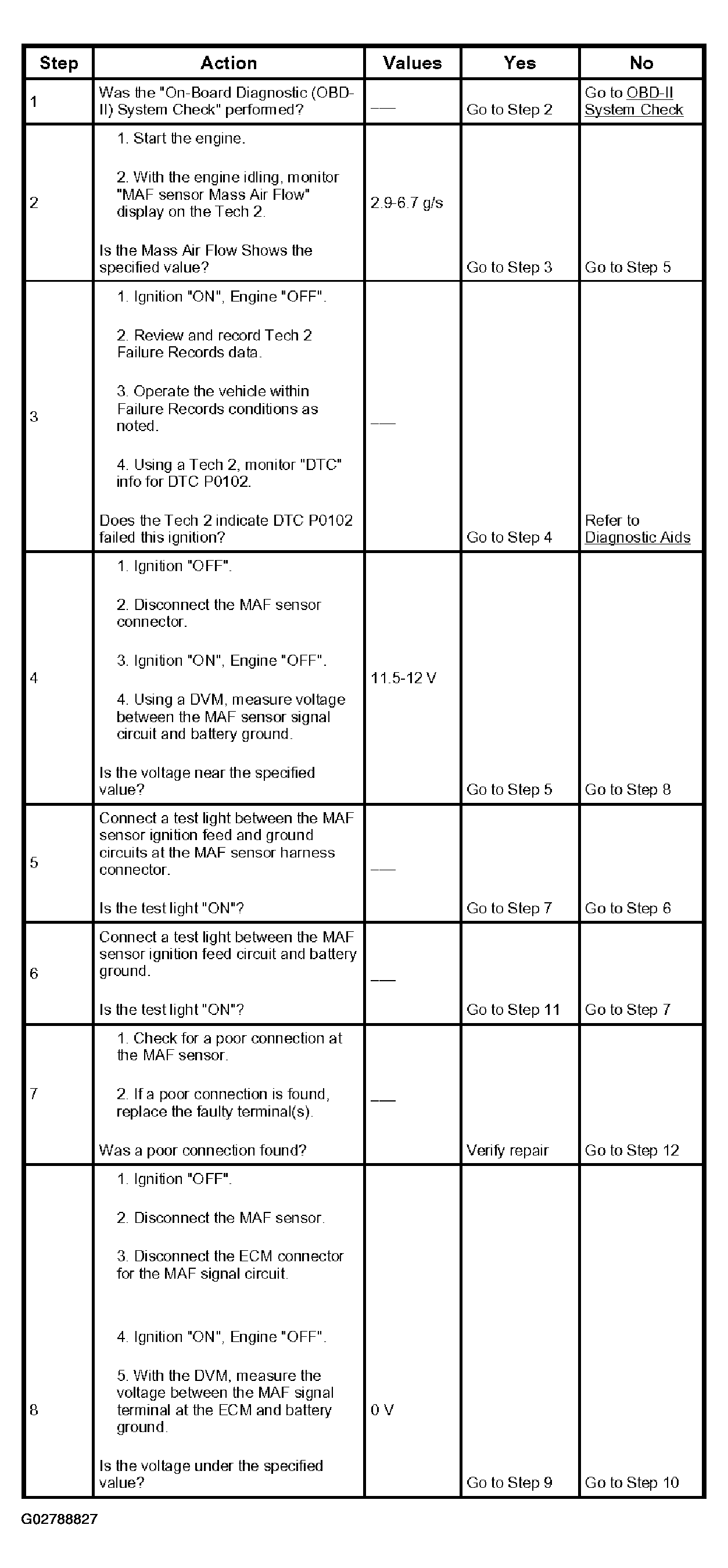

Fig 1: Identifying Diagnostic Chart (DTC P0102 - Mass Air Flow (MAF) Sensor Circuit Low Input) (1 Of 2)

Courtesy of ISUZU MOTOR CO.

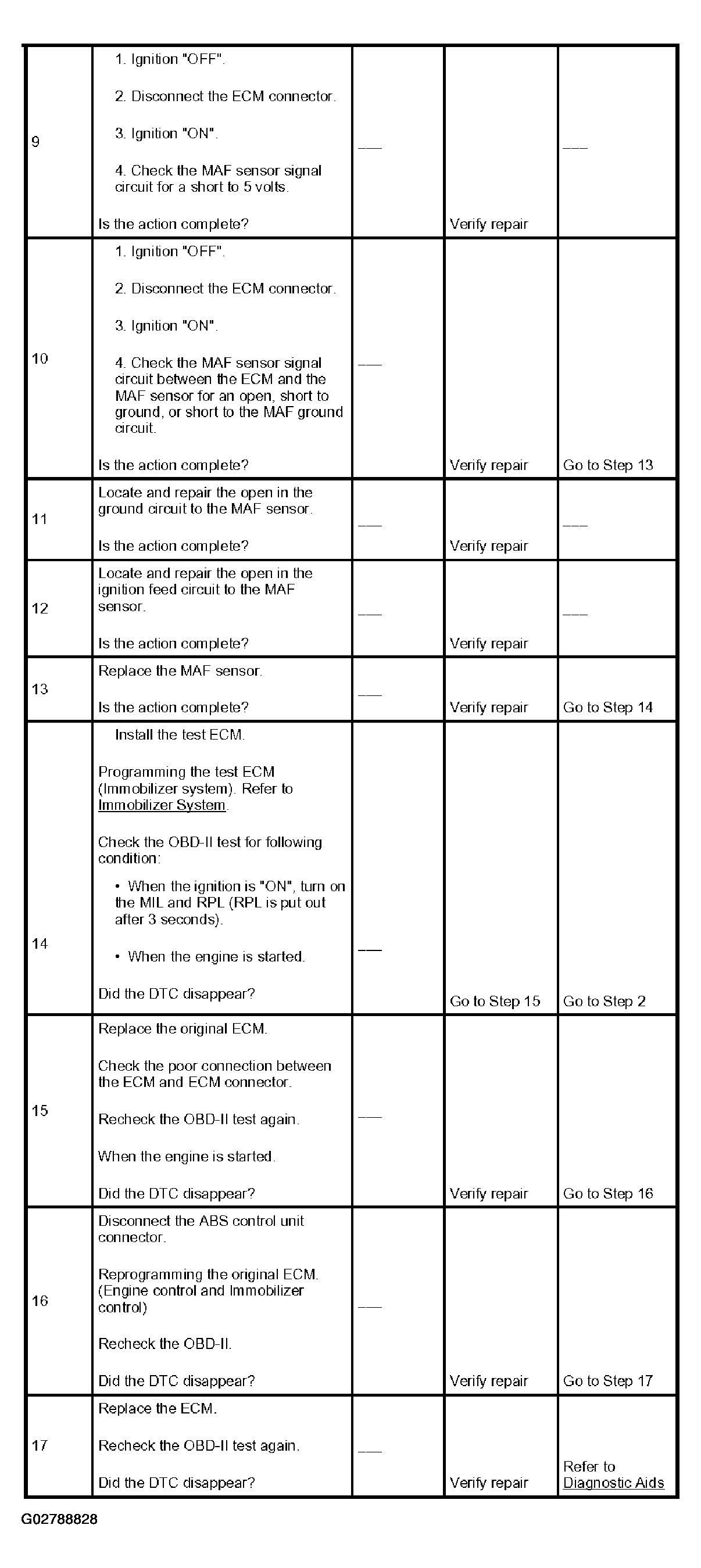

Fig 2: Identifying Diagnostic Chart (DTC P0102 - Mass Air Flow (MAF) Sensor Circuit Low Input) (2 Of 2)

Courtesy of ISUZU MOTOR CO.
