Disassembled View

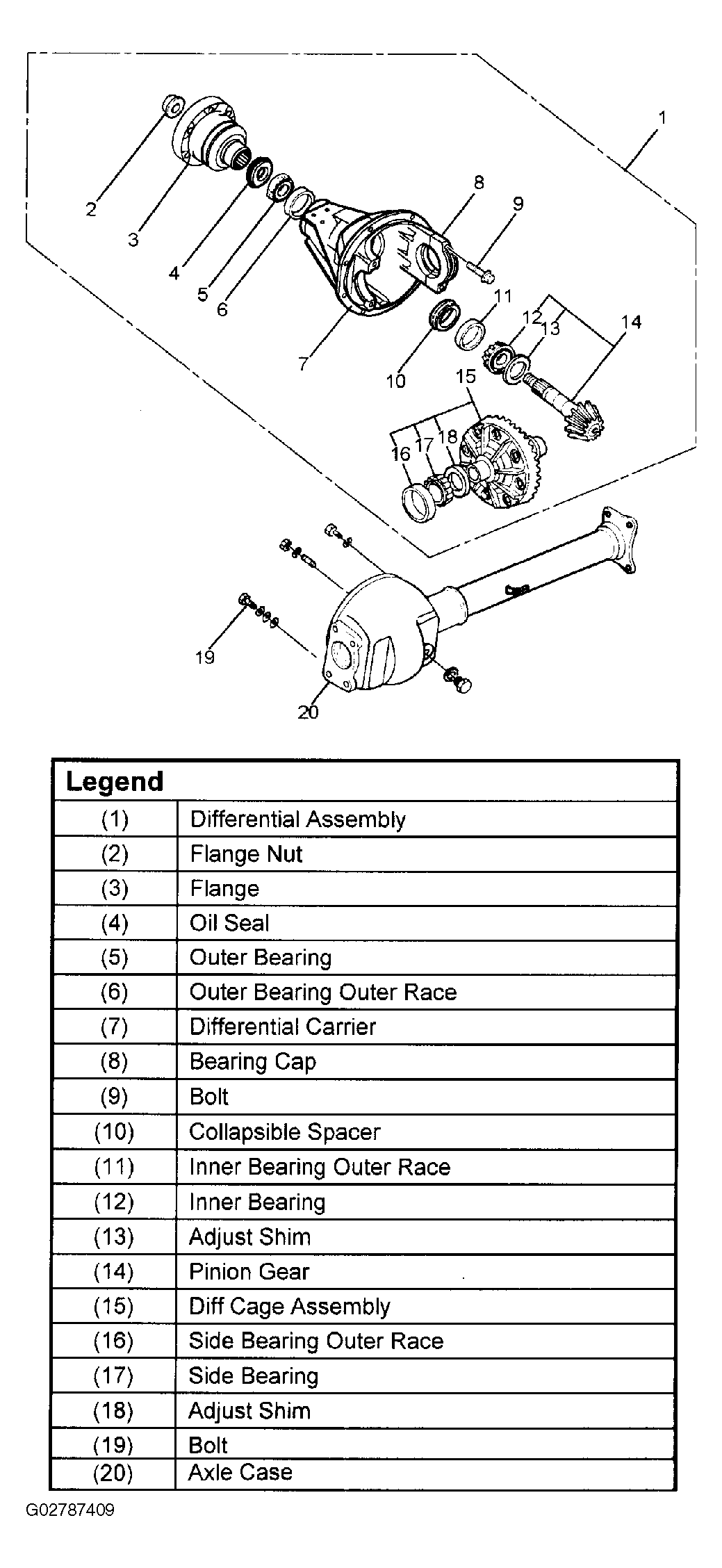

Fig 1: Disassembled View Of Differential Assembly
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
