Torque Specifications

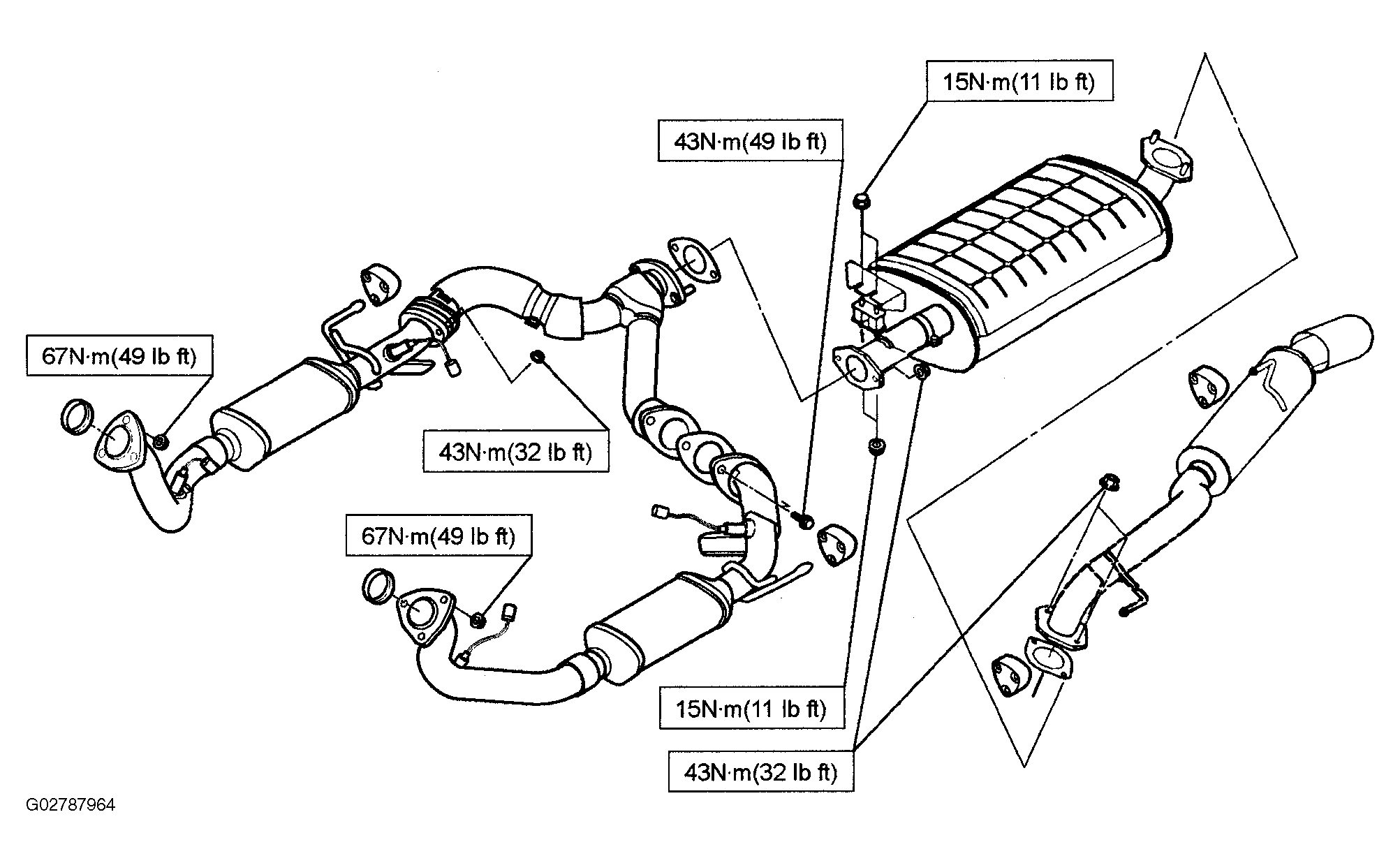

Fig 1: Rear Exhaust Pipe And Associated Parts With Torque Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
