Torque Specifications

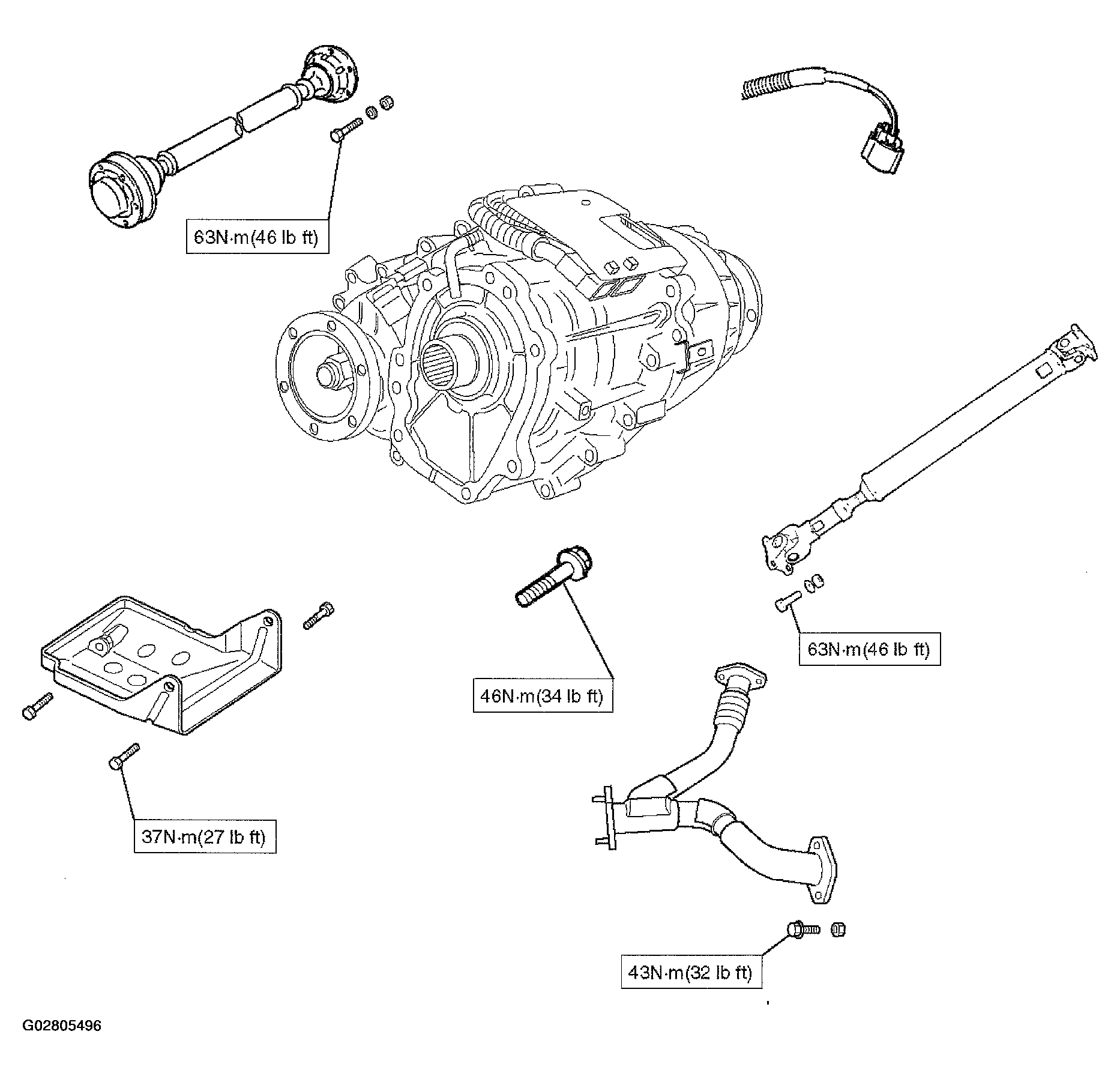

Fig 1: Torque Specifications (1 Of 3)
G02805496Courtesy of ISUZU MOTOR CO.

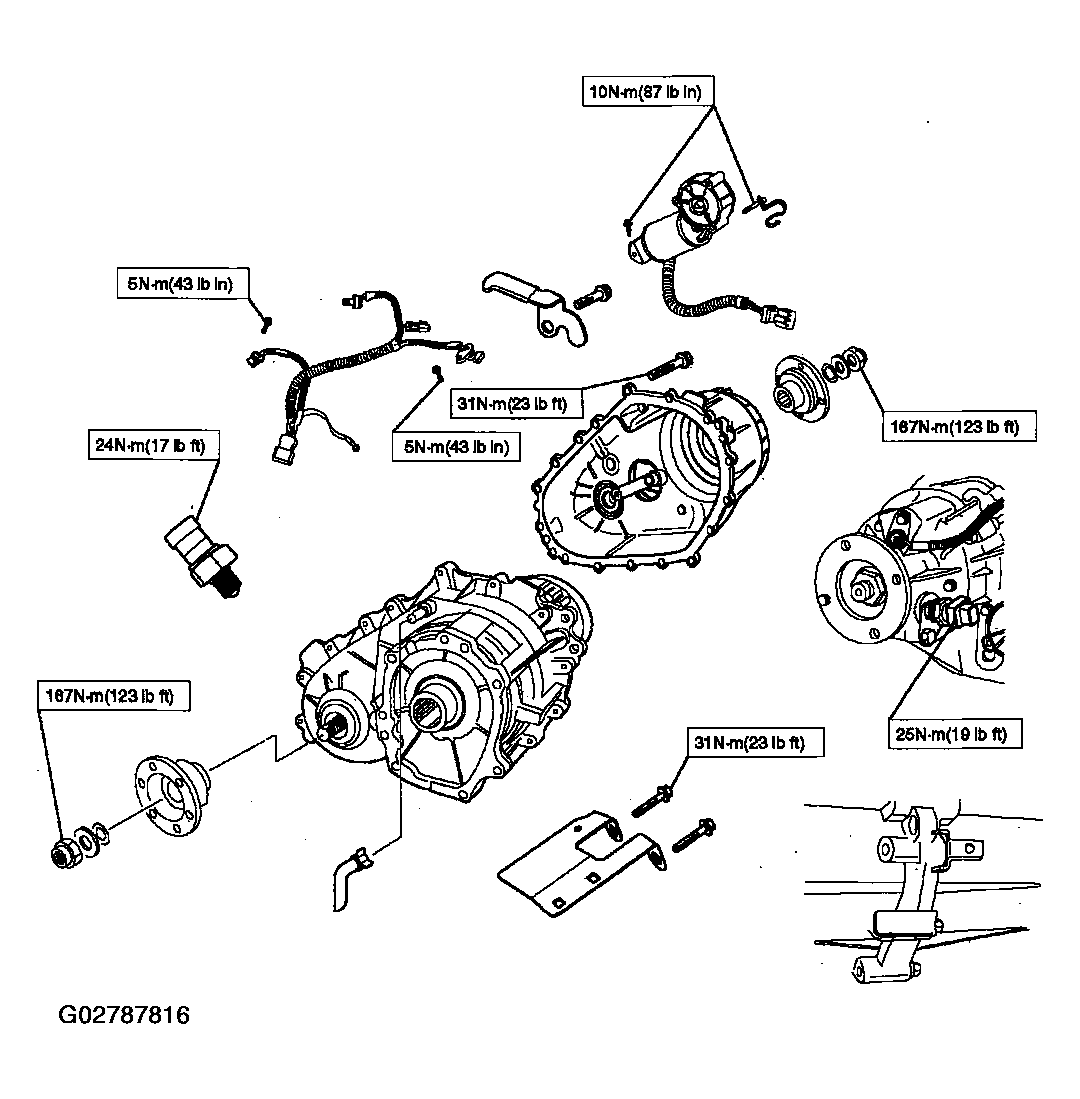

Fig 2: Torque Specifications (2 Of 3)
G02787816Courtesy of ISUZU MOTOR CO.

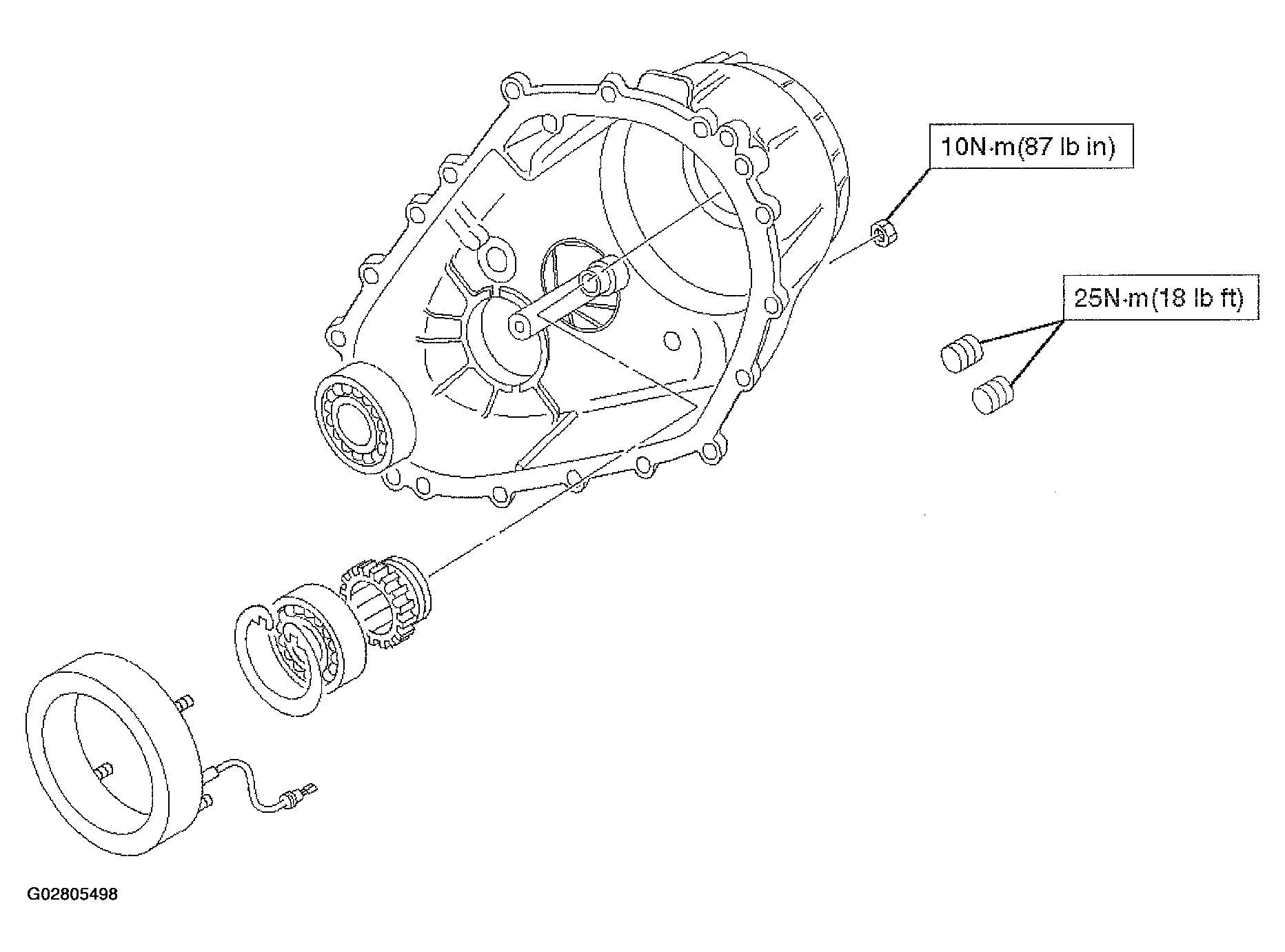

Fig 3: Torque Specifications (3 Of 3)
G02805498Courtesy of ISUZU MOTOR CO.
