Thickness of Shift Fork

• If the measurement exceeds the limit, replace the shift fork.

Standard:  3.41-3.79 mm (0.134-0.149 in)

Allowable limit:  4.4 mm (0.173 in)

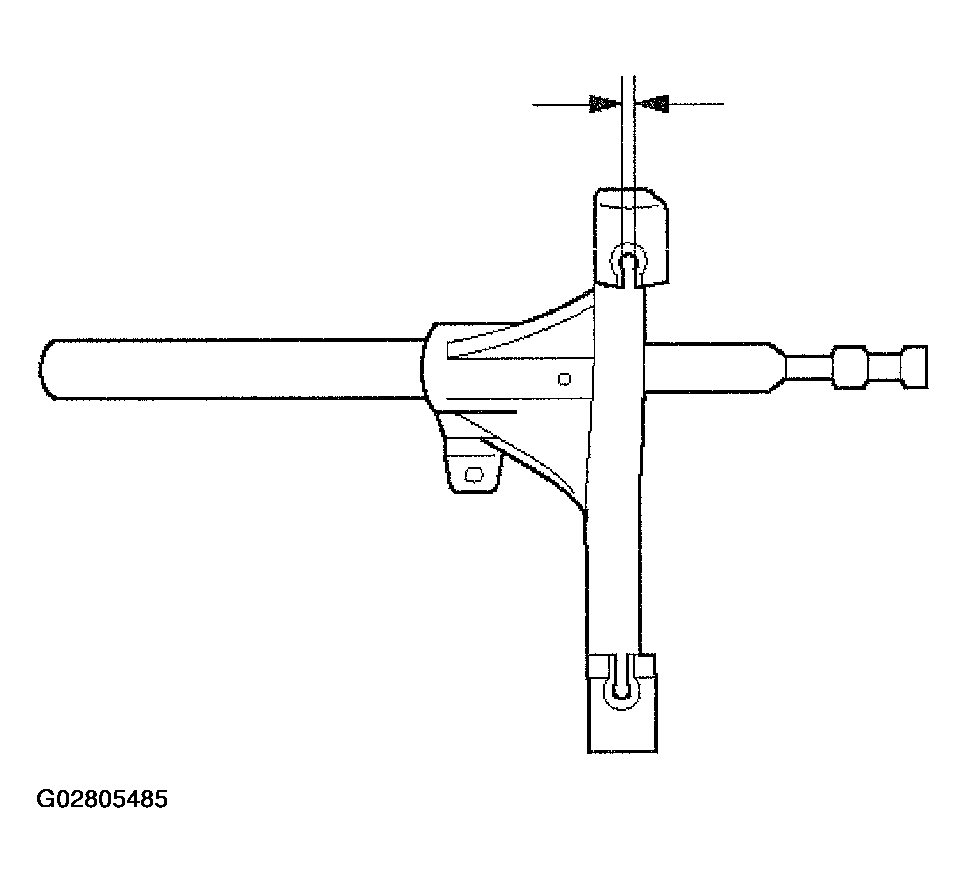

Fig 1: Measuring Thickness Of Shift Fork

Courtesy of ISUZU MOTOR CO.
