Shift Motor Assembly

• Check the resistance of the shift motor assembly (between terminal 4 to 7) with a tester.

  If defects are observed, replace the shift motor assembly.

Standard:  0.63.0.2. (at ordinary temperature)

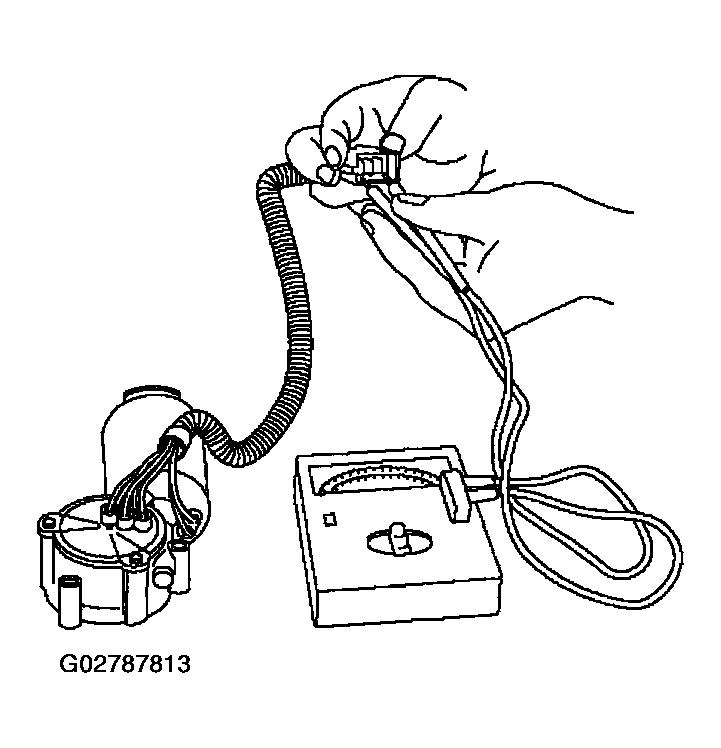

Fig 1: Checking Resistance Of Shift Motor Assembly (1 Of 2)

Courtesy of ISUZU MOTOR CO.

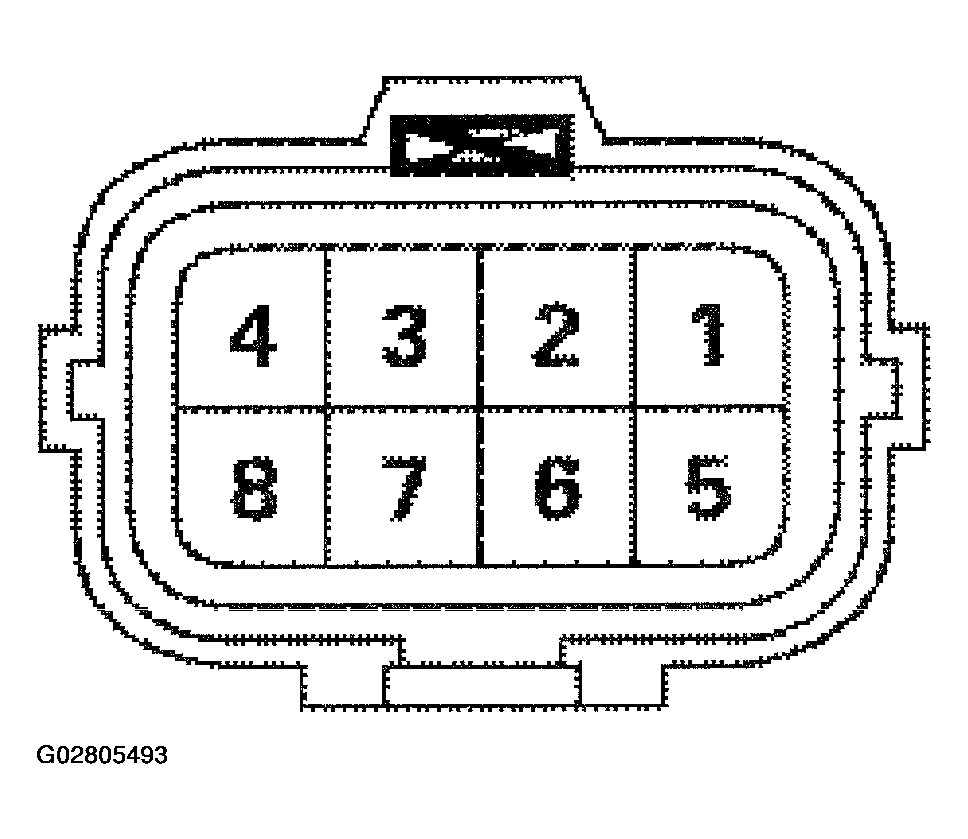

Fig 2: Checking Resistance Of Shift Motor Assembly (2 Of 2)

Courtesy of ISUZU MOTOR CO.
