Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

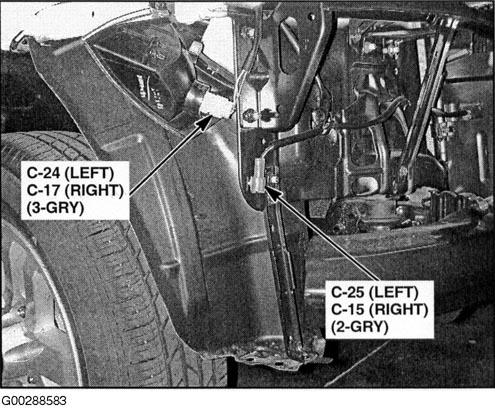

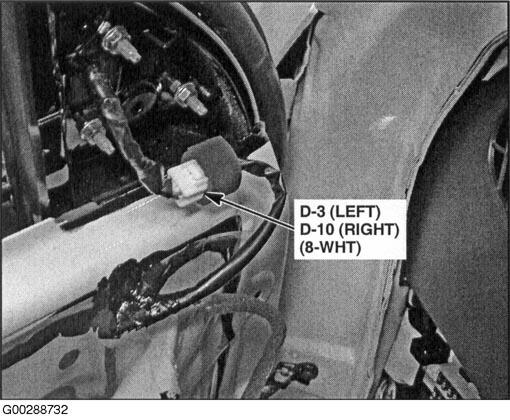

Fig 1: Behind Left Front Wheel (Right Wheel Similar)
Courtesy of ISUZU MOTOR CO.

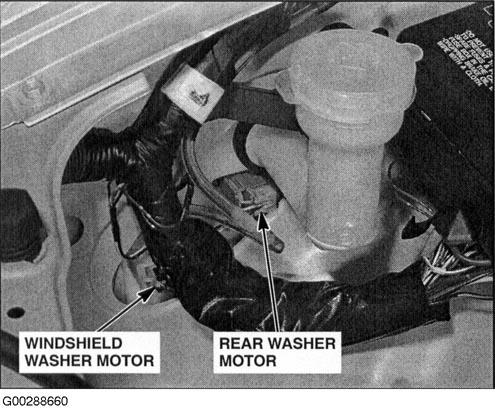

Fig 2: Behind Left Front Wheel (Right Wheel Similar)
Courtesy of ISUZU MOTOR CO.

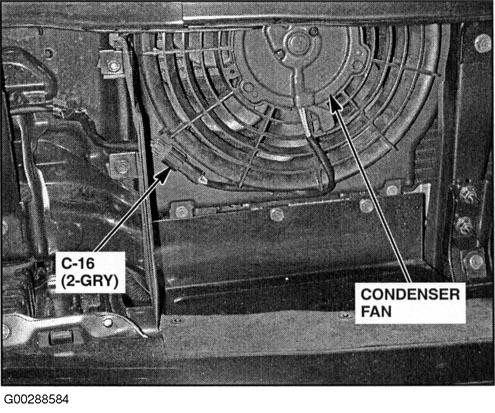

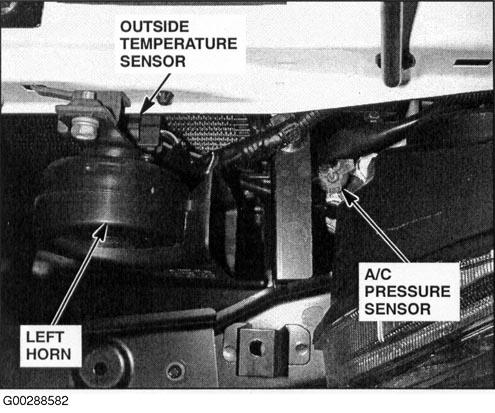

Fig 3: Behind Left Side Of Grille
Courtesy of ISUZU MOTOR CO.
Fig 4: Right Front Of Vehicle (Left Similar)
Courtesy of ISUZU MOTOR CO.
Fig 5: Front Of Vehicle (Grille Removed)
Courtesy of ISUZU MOTOR CO.

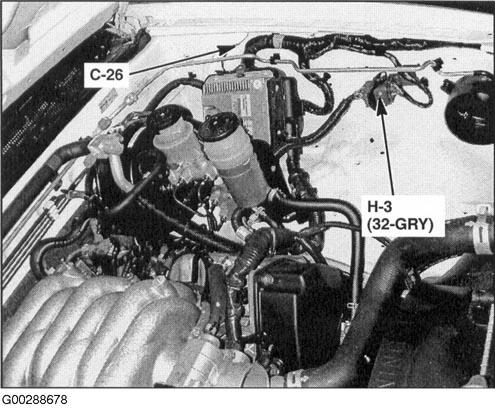

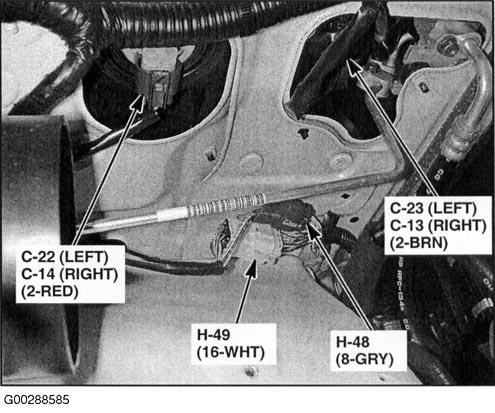

Fig 6: Left Front Of Engine Compartment (Right Similar)
Courtesy of ISUZU MOTOR CO.
Fig 7: Left Front Of Engine Compartment (Coolant Reservoir Removed)
Courtesy of ISUZU MOTOR CO.

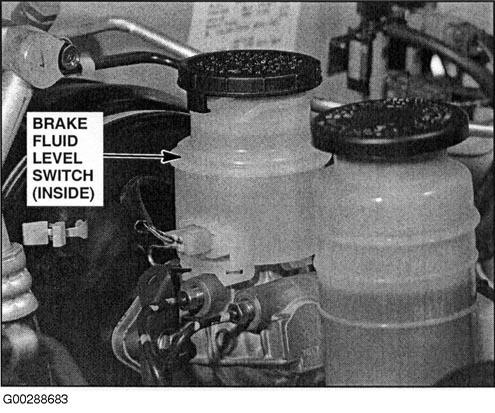

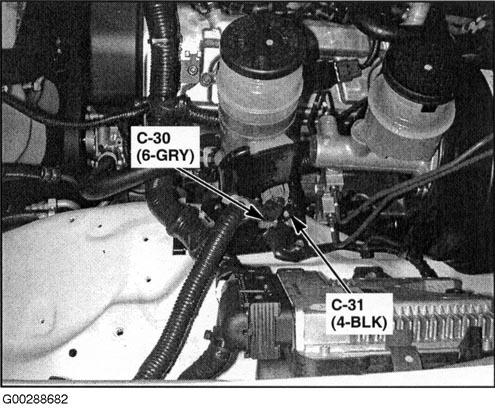

Fig 8: Right Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.

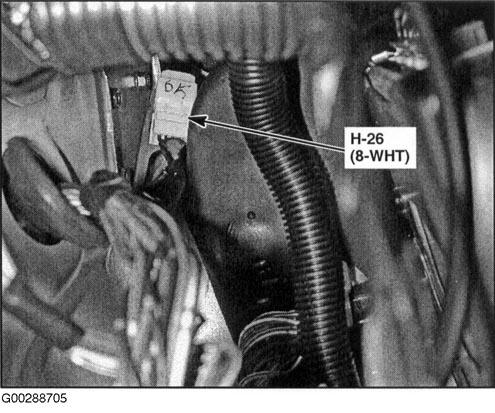

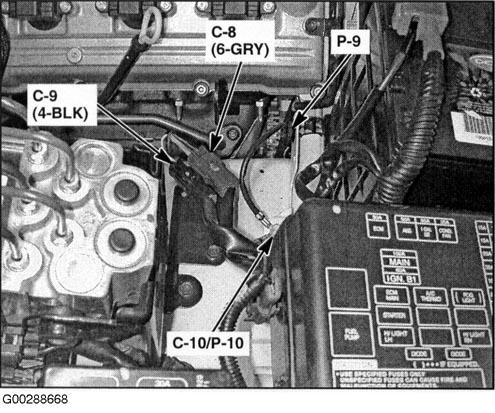

Fig 9: Right Rear Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 10: Right Rear Of Engine Compartment
Courtesy of ISUZU MOTOR CO.

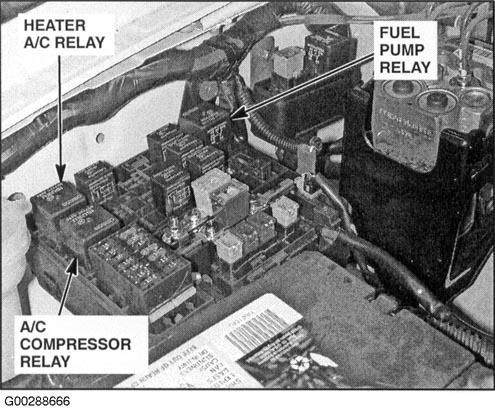

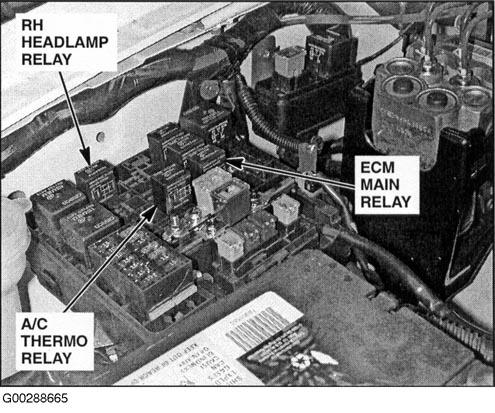

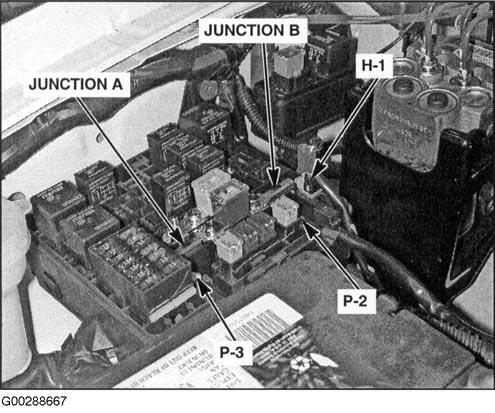

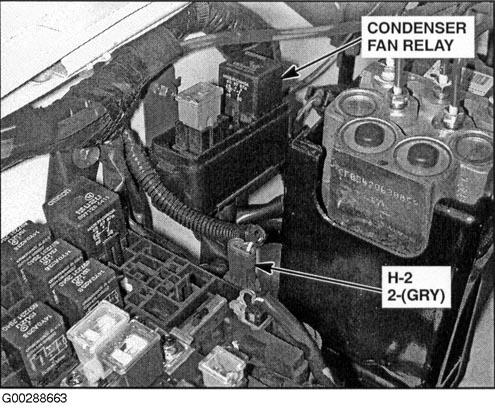

Fig 11: Fuse/Relay Box (Cover Removed)
Courtesy of ISUZU MOTOR CO.
Fig 12: Fuse/Relay Box (Cover Removed)
Courtesy of ISUZU MOTOR CO.
Fig 13: Fuse/Relay Box (Cover Removed)
Courtesy of ISUZU MOTOR CO.
Fig 14: Fuse/Relay Box (Cover Removed)
Courtesy of ISUZU MOTOR CO.
Fig 15: Right Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 16: Right Rear Corner Of Engine Compartment
Courtesy of ISUZU MOTOR CO.

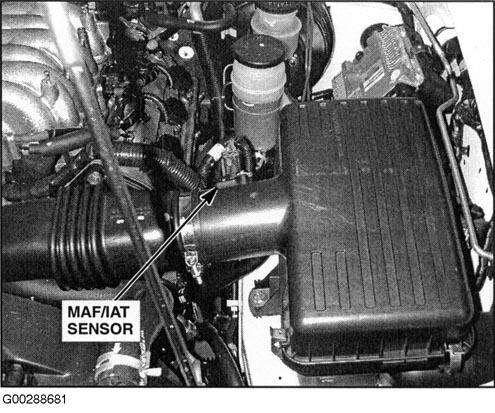

Fig 17: Front Of Engine
Courtesy of ISUZU MOTOR CO.

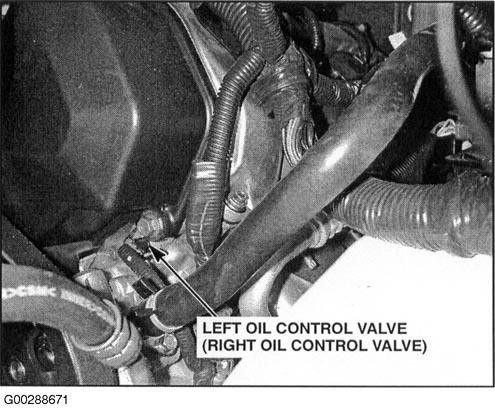

Fig 18: Front Of Left Cylinder Head (Right Similar)
Courtesy of ISUZU MOTOR CO.

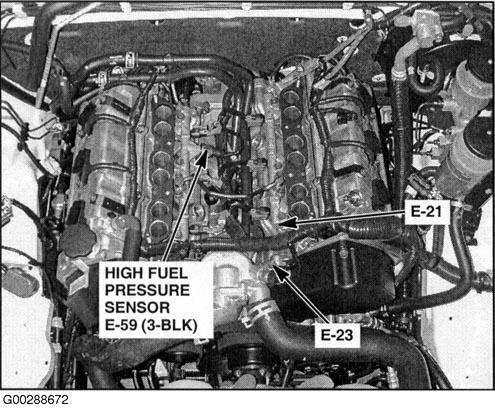

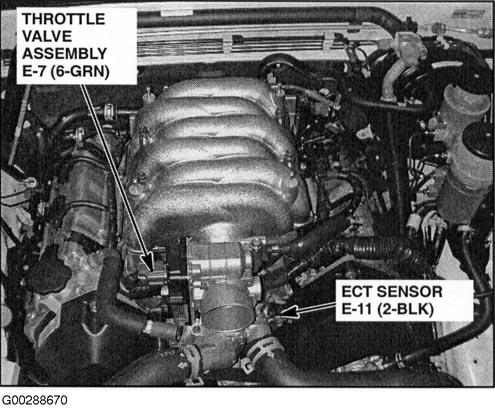

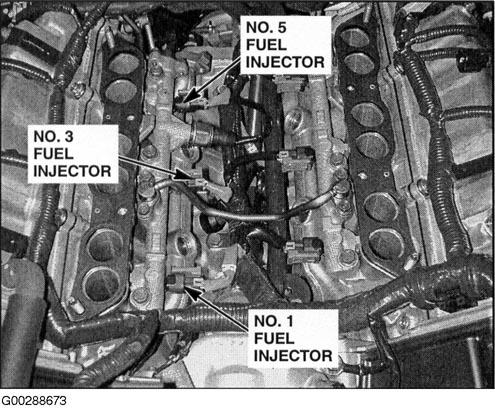

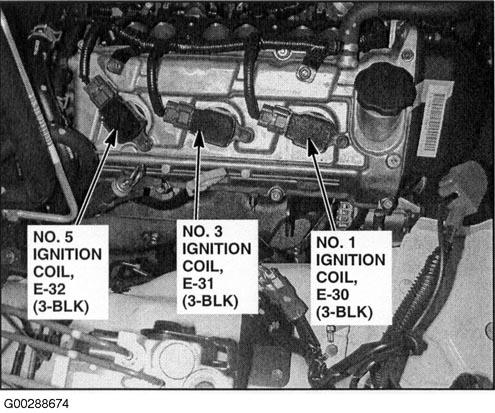

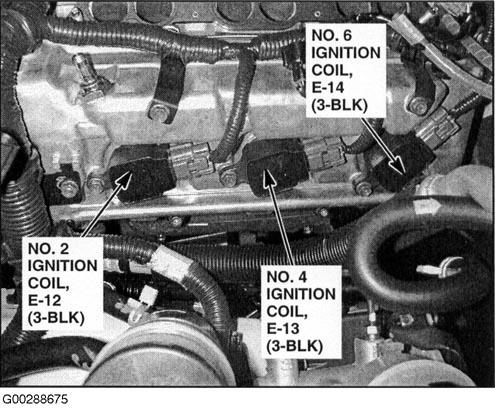

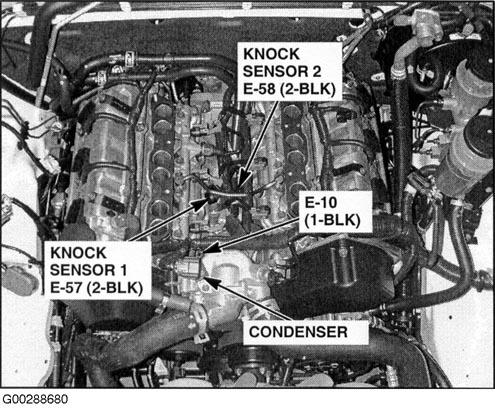

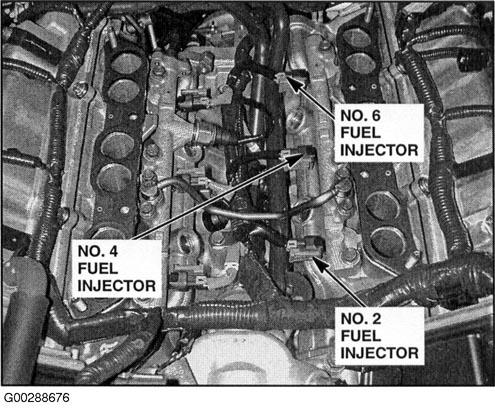

Fig 19: Top Of Engine (Common Chamber Removed)
Courtesy of ISUZU MOTOR CO.
Fig 20: Top Of Engine (Common Chamber Removed)
Courtesy of ISUZU MOTOR CO.

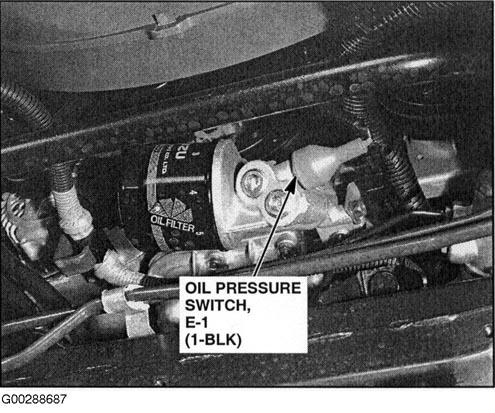

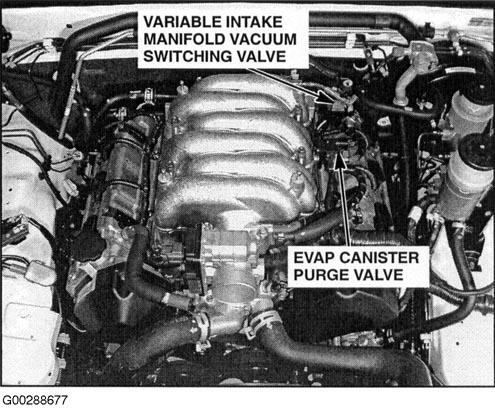

Fig 21: Right Side Of Engine
Courtesy of ISUZU MOTOR CO.
Fig 22: Left Side Of Engine
Courtesy of ISUZU MOTOR CO.
Fig 23: Top Of Engine (Common Chamber Removed)
Courtesy of ISUZU MOTOR CO.
Fig 24: Left Side Of Engine
Courtesy of ISUZU MOTOR CO.
Fig 25: Left Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 26: Left Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 27: Top Of Engine (Common Chamber Removed)
Courtesy of ISUZU MOTOR CO.

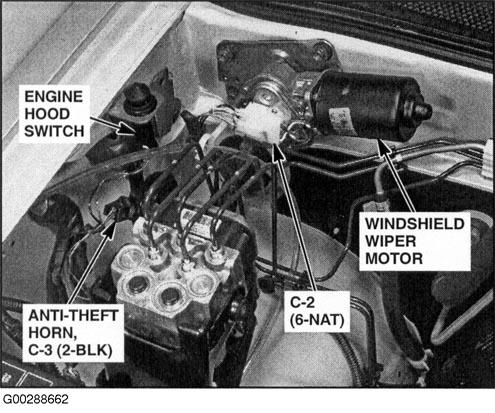

Fig 28: Left Front Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 29: Left Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 30: Left Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 31: Left Rear Frame Rail (Spare Tire Removed)
Courtesy of ISUZU MOTOR CO.
Fig 32: Left Side Of Transmission
Courtesy of ISUZU MOTOR CO.
Fig 33: Left Side Of Engine
Courtesy of ISUZU MOTOR CO.

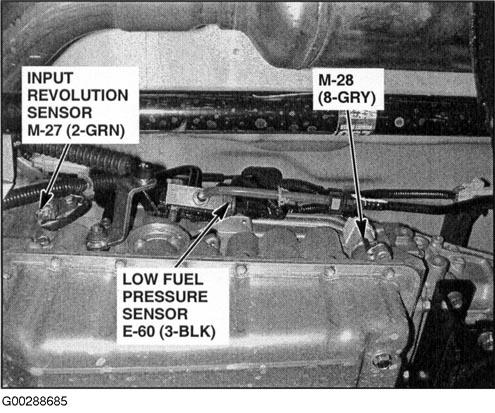

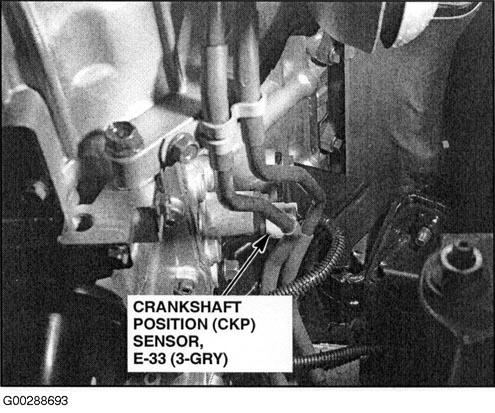

Fig 34: Bottom Center Front Of Engine
Courtesy of ISUZU MOTOR CO.

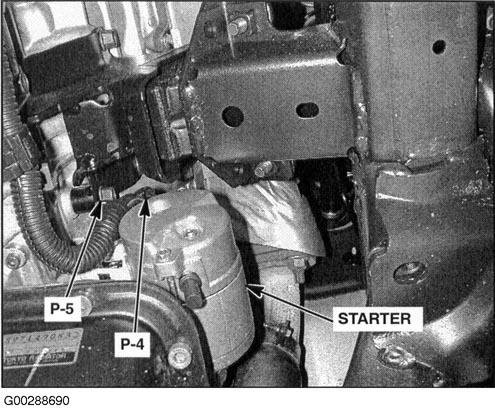

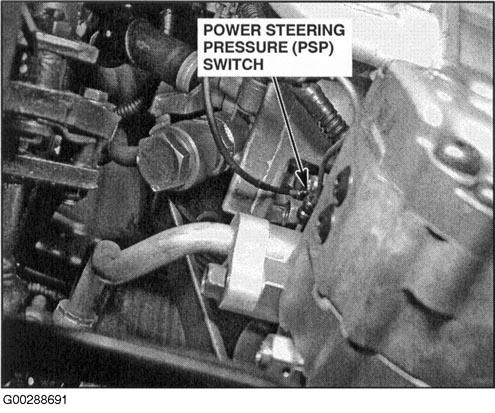

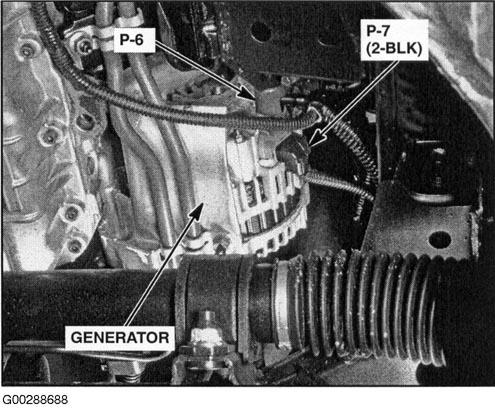

Fig 35: Lower Right Front Of Engine
Courtesy of ISUZU MOTOR CO.

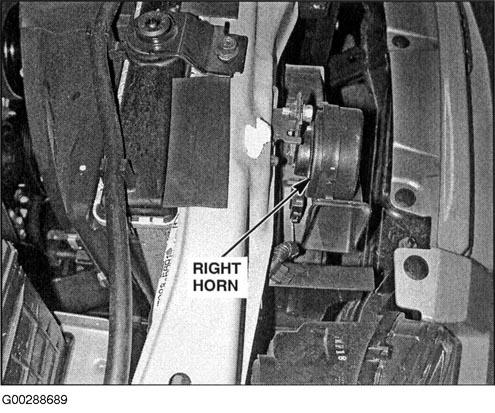

Fig 36: Right Front Of Vehicle (Behind Grille)
Courtesy of ISUZU MOTOR CO.
Fig 37: Bottom Left Side Of Engine
Courtesy of ISUZU MOTOR CO.
Fig 38: Under Left Side Of Engine
Courtesy of ISUZU MOTOR CO.

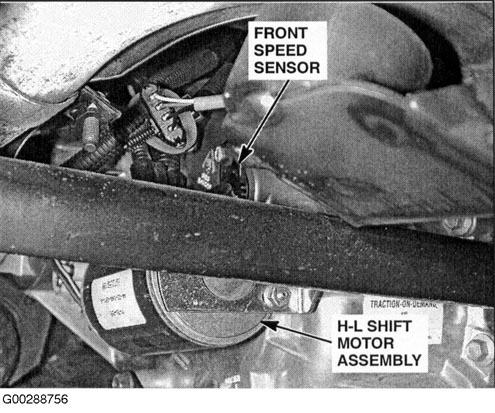

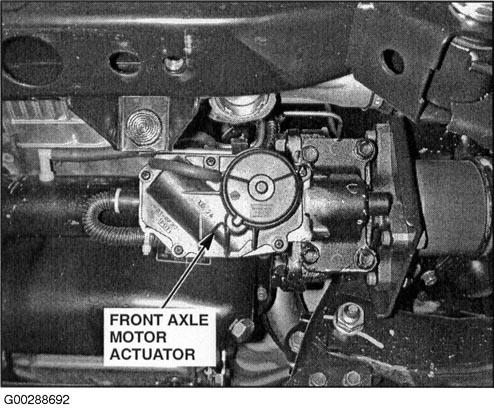

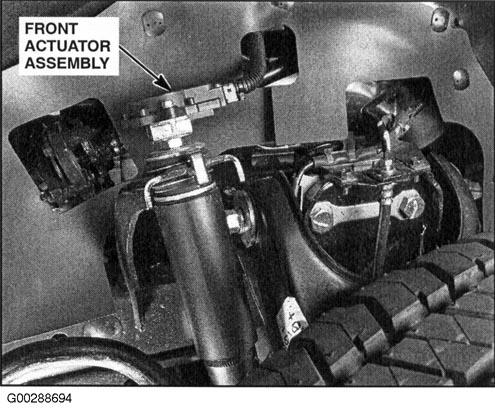

Fig 39: Left Side Of Front Axle
Courtesy of ISUZU MOTOR CO.
Fig 40: Bottom Right Side Of Engine
Courtesy of ISUZU MOTOR CO.

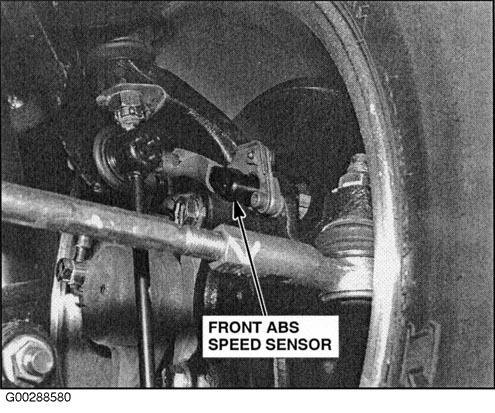

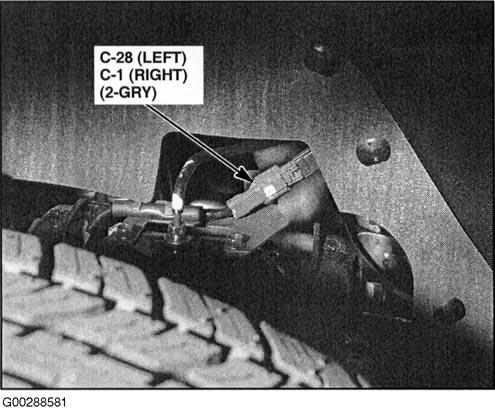

Fig 41: In Left Front Wheelwell (Right Similar)
Courtesy of ISUZU MOTOR CO.
Fig 42: Left Side Of I/P
Courtesy of ISUZU MOTOR CO.

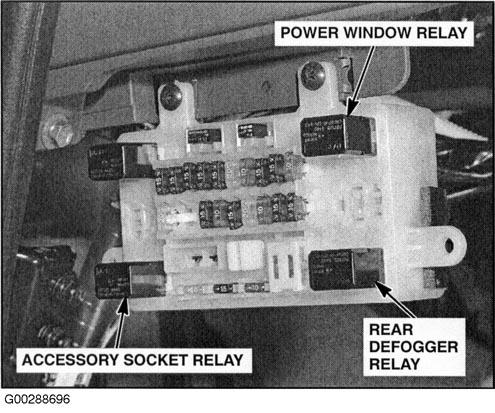

Fig 43: Dash Fuse Box
Courtesy of ISUZU MOTOR CO.
Fig 44: Dash Fuse Box
Courtesy of ISUZU MOTOR CO.
Fig 45: Left Side Of I/P
Courtesy of ISUZU MOTOR CO.

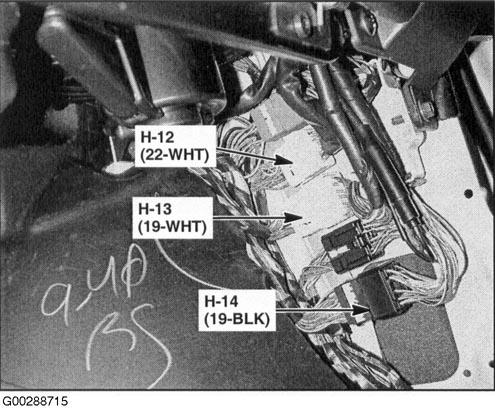

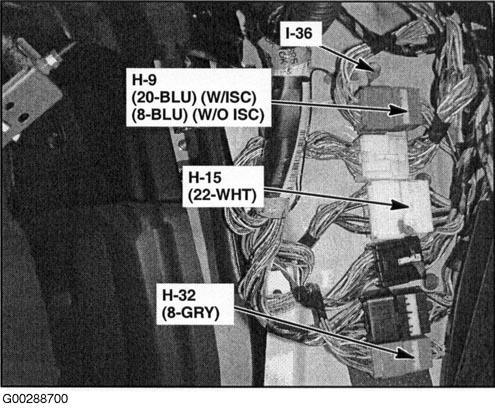

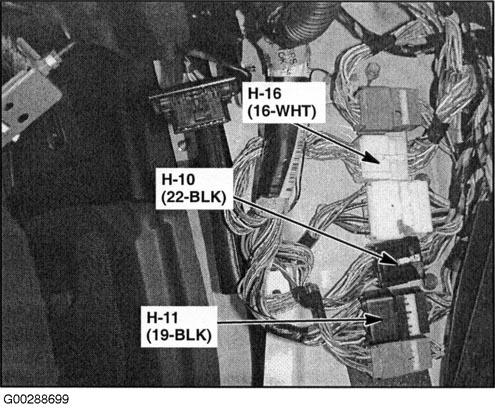

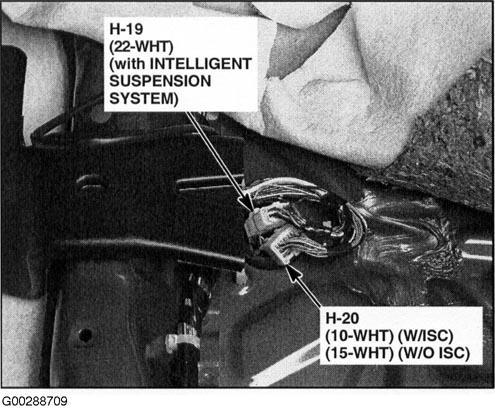

Fig 46: Behind Left Kick Panel
Courtesy of ISUZU MOTOR CO.
Fig 47: Behind Left Kick Panel
Courtesy of ISUZU MOTOR CO.

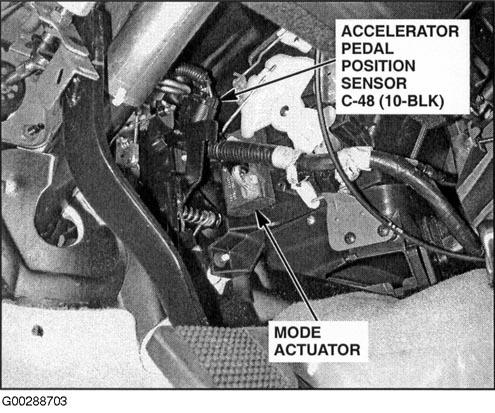

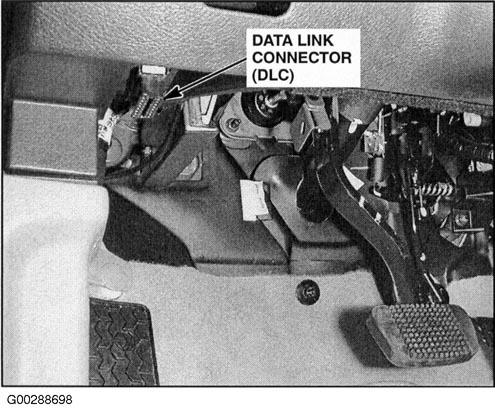

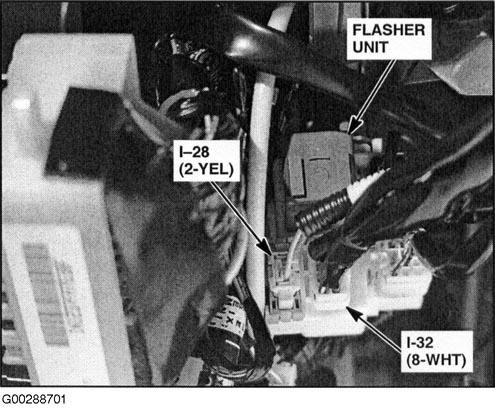

Fig 48: Below Left Side Of I/P
Courtesy of ISUZU MOTOR CO.
Fig 49: Below Left Side Of I/P
Courtesy of ISUZU MOTOR CO.
Fig 50: Below Left Side Of I/P
Courtesy of ISUZU MOTOR CO.
Fig 51: Below Left Side Of I/P (TCM Not Shown)
Courtesy of ISUZU MOTOR CO.
Fig 52: Behind Left Side Of I/P
Courtesy of ISUZU MOTOR CO.

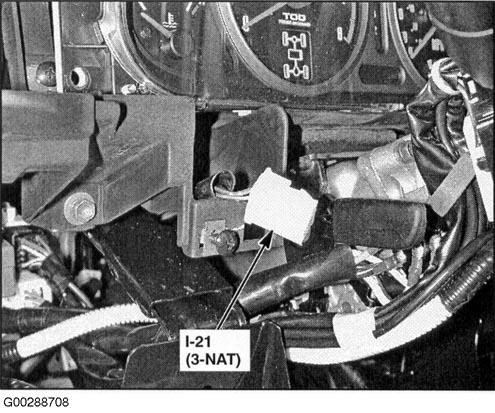

Fig 53: Left Side Of I/P
Courtesy of ISUZU MOTOR CO.
Fig 54: Left Side Of I/P
Courtesy of ISUZU MOTOR CO.

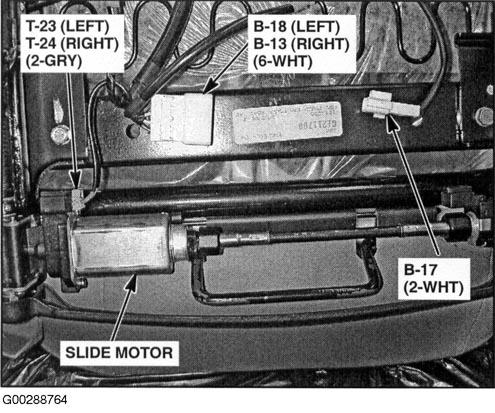

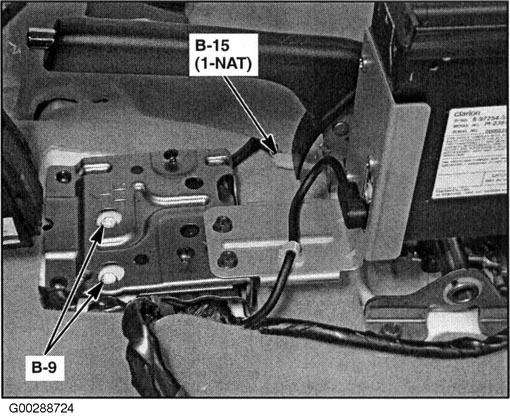

Fig 55: Below Driver's Seat
Courtesy of ISUZU MOTOR CO.

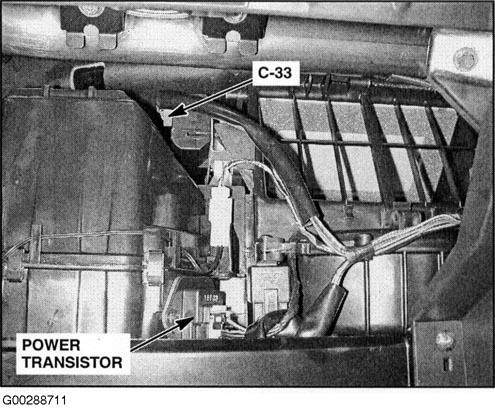

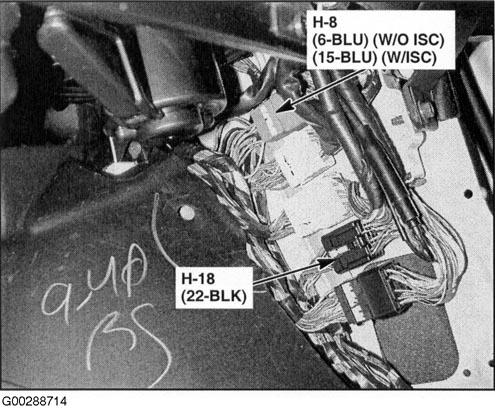

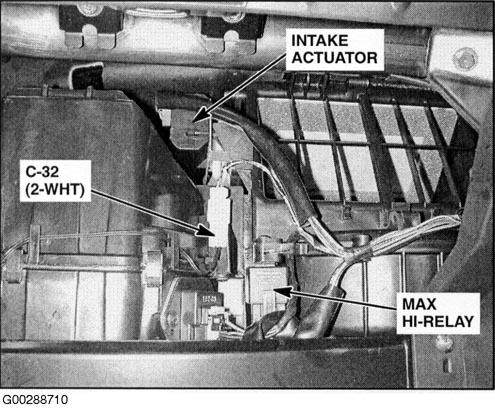

Fig 56: Behind Glove Box
Courtesy of ISUZU MOTOR CO.
Fig 57: Behind Glove Box
Courtesy of ISUZU MOTOR CO.

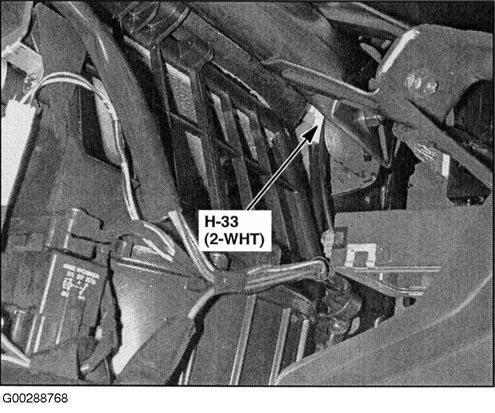

Fig 58: Right Side Of I/P (Glove Box Removed)
Courtesy of ISUZU MOTOR CO.
Fig 59: Right Side Of I/P (Glove Box Removed)
Courtesy of ISUZU MOTOR CO.
Fig 60: Behind Right Kick Panel
Courtesy of ISUZU MOTOR CO.

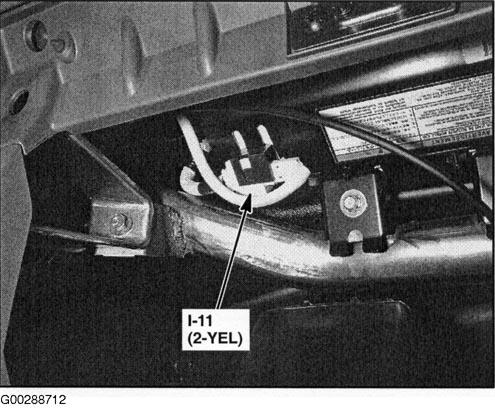

Fig 61: Behind Right Kick Panel
Courtesy of ISUZU MOTOR CO.

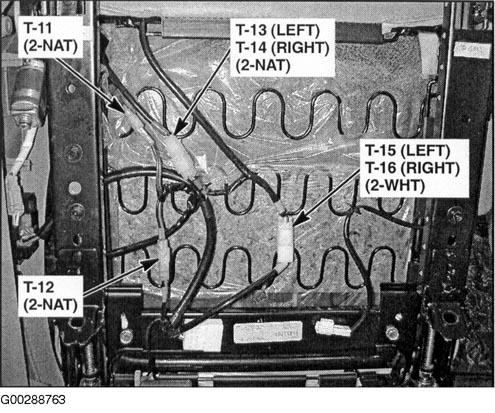

Fig 62: Under Front Passenger's Seat
Courtesy of ISUZU MOTOR CO.
Fig 63: Top Center Of I/P
Courtesy of ISUZU MOTOR CO.

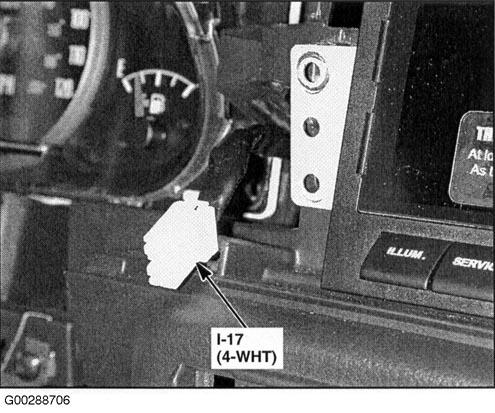

Fig 64: Center Of I/P
Courtesy of ISUZU MOTOR CO.
Fig 65: Behind Audio Unit
Courtesy of ISUZU MOTOR CO.
Fig 66: Below Center Of I/P (Console Removed)
Courtesy of ISUZU MOTOR CO.
Fig 67: Under Front Of Center Console
Courtesy of ISUZU MOTOR CO.

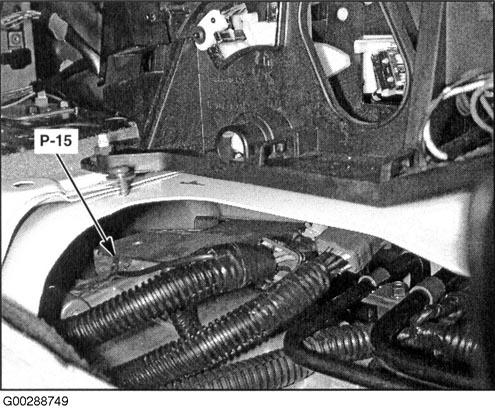

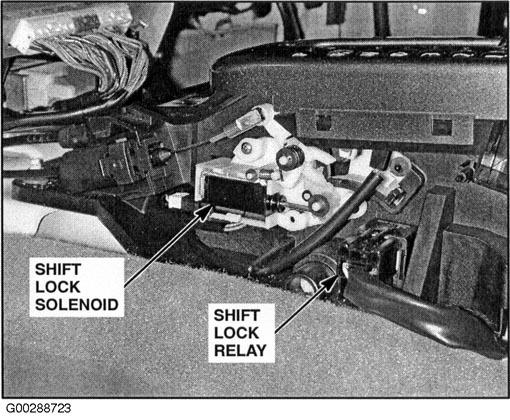

Fig 68: Under Center Console
Courtesy of ISUZU MOTOR CO.
Fig 69: Under Center Console
Courtesy of ISUZU MOTOR CO.
Fig 70: Top Of Left "A" Pillar (Headliner Removed)
Courtesy of ISUZU MOTOR CO.

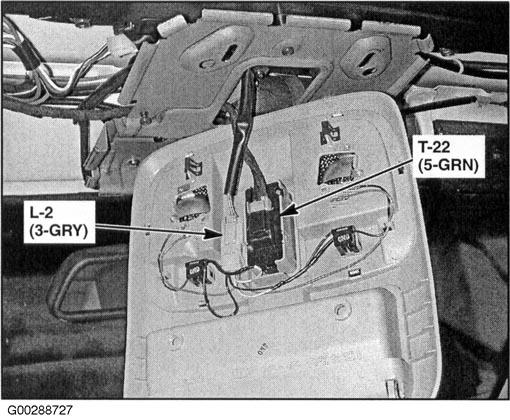

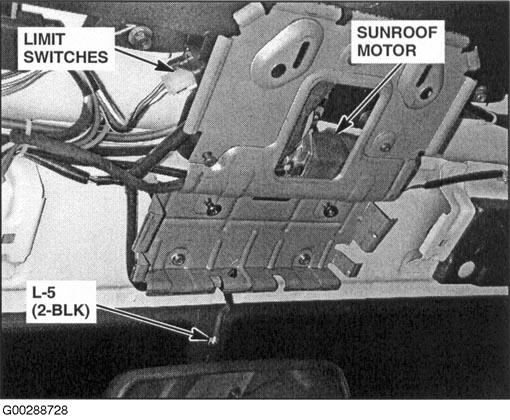

Fig 71: Front Of Roof (Headliner Removed)
Courtesy of ISUZU MOTOR CO.
Fig 72: Front Center Of Ceiling (Headliner Removed)
Courtesy of ISUZU MOTOR CO.
Fig 73: Front Of Roof (Headliner Removed)
Courtesy of ISUZU MOTOR CO.

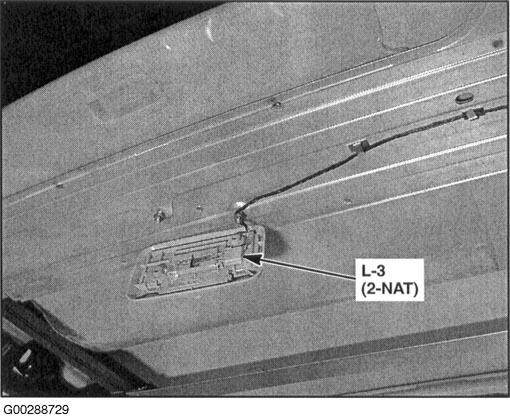

Fig 74: Rear Center Of Roof
Courtesy of ISUZU MOTOR CO.
Fig 75: Rear Center Of Roof
Courtesy of ISUZU MOTOR CO.

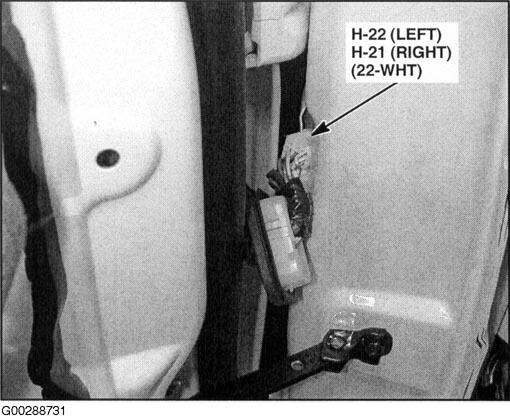

Fig 76: Left Front Door Jamb (Right Similar)
Courtesy of ISUZU MOTOR CO.

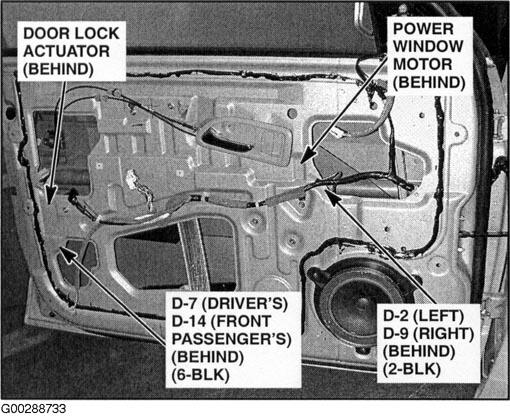

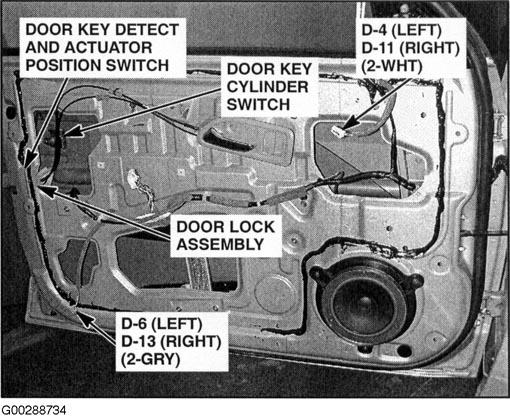

Fig 77: Left Front Door (Right Similar)
Courtesy of ISUZU MOTOR CO.
Fig 78: Left Front Door (Right Similar)
Courtesy of ISUZU MOTOR CO.
Fig 79: Left Front Door (Right Similar)
Courtesy of ISUZU MOTOR CO.

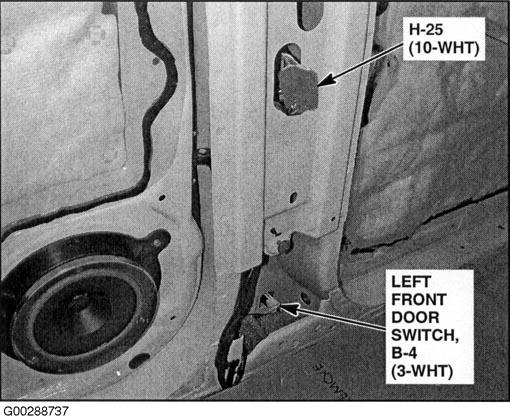

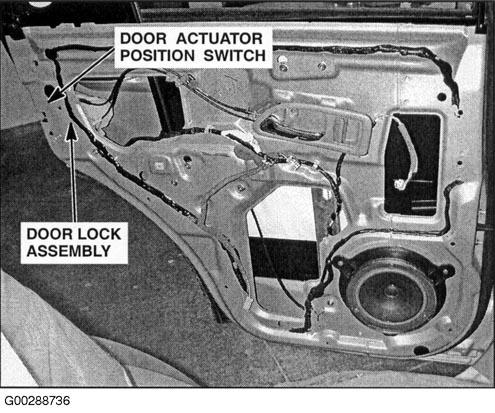

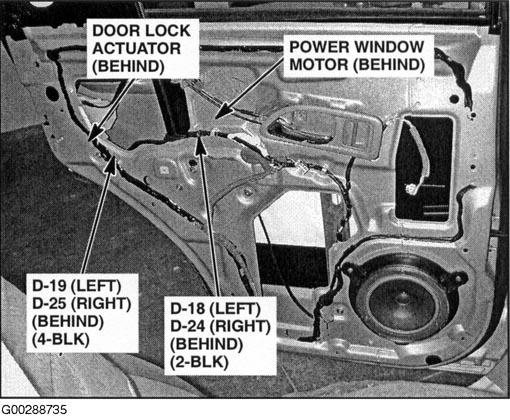

Fig 80: Left Rear Door (Right Similar)
Courtesy of ISUZU MOTOR CO.
Fig 81: Left Rear Door (Right Similar)
Courtesy of ISUZU MOTOR CO.

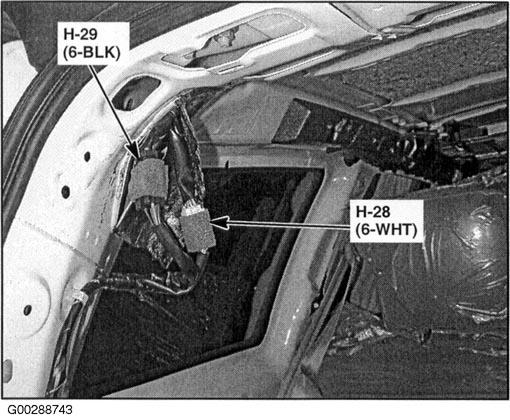

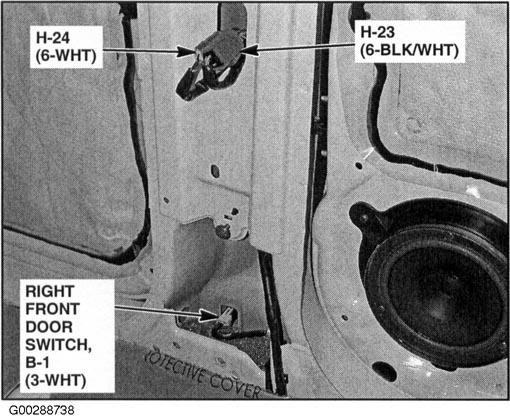

Fig 82: Left "B" Pillar
Courtesy of ISUZU MOTOR CO.
Fig 83: Right "B" Pillar
Courtesy of ISUZU MOTOR CO.

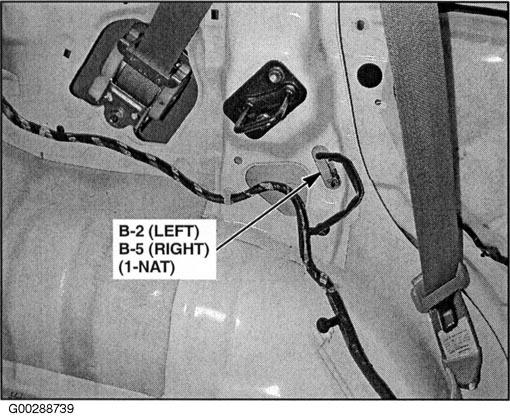

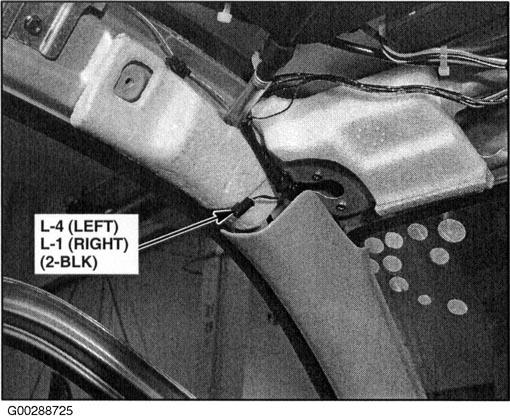

Fig 84: Left "C" Pillar (Right Similar)
Courtesy of ISUZU MOTOR CO.

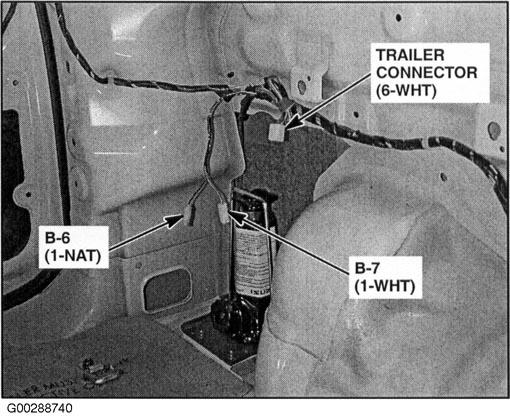

Fig 85: Left Rear Of Cargo Compartment
Courtesy of ISUZU MOTOR CO.

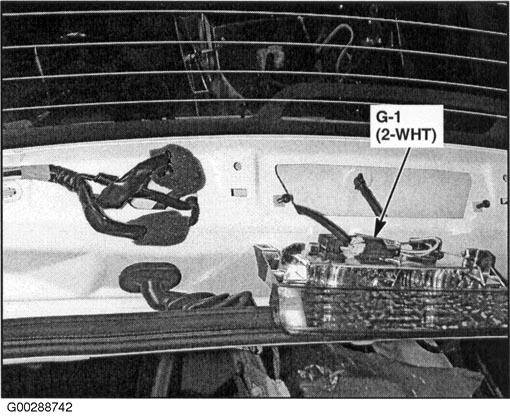

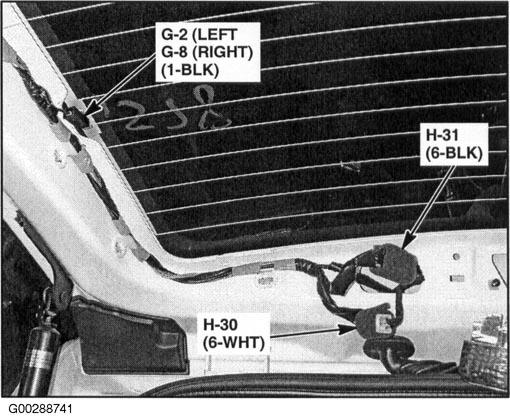

Fig 86: Upper Left Side Of Tailgate (Panel Removed)
Courtesy of ISUZU MOTOR CO.
Fig 87: Upper Center Of Tailgate
Courtesy of ISUZU MOTOR CO.

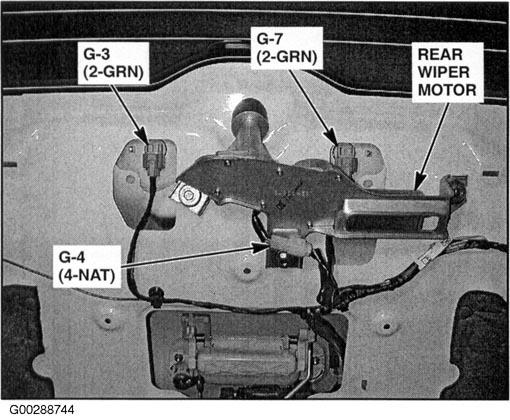

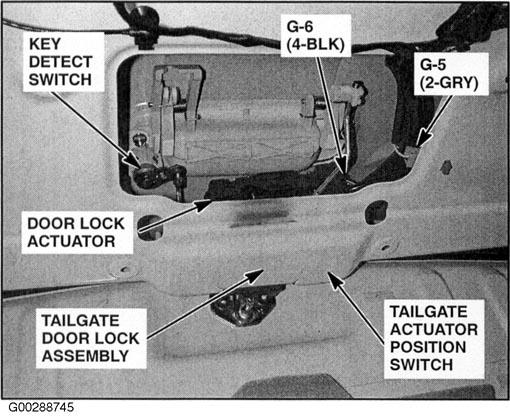

Fig 88: On Tailgate Door (Panel Removed)
Courtesy of ISUZU MOTOR CO.
Fig 89: Bottom Of Tailgate Door (Panel Removed)
Courtesy of ISUZU MOTOR CO.

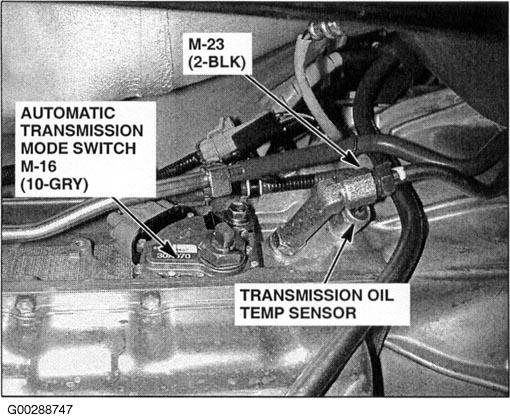

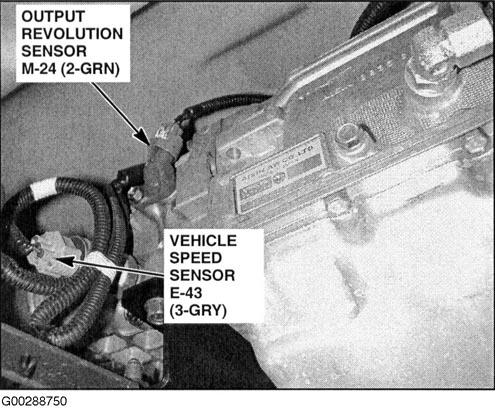

Fig 90: Right Side Of Transmission
Courtesy of ISUZU MOTOR CO.
Fig 91: Below Left Side Of I/P
Courtesy of ISUZU MOTOR CO.
Fig 92: Right Side Of Transmission
Courtesy of ISUZU MOTOR CO.

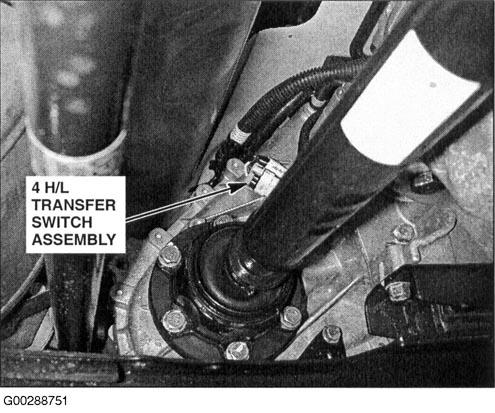

Fig 93: Right Side Of Transfer Case
Courtesy of ISUZU MOTOR CO.

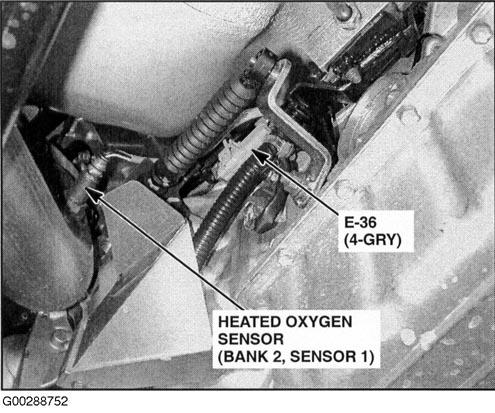

Fig 94: Left Front Exhaust Downpipe
Courtesy of ISUZU MOTOR CO.

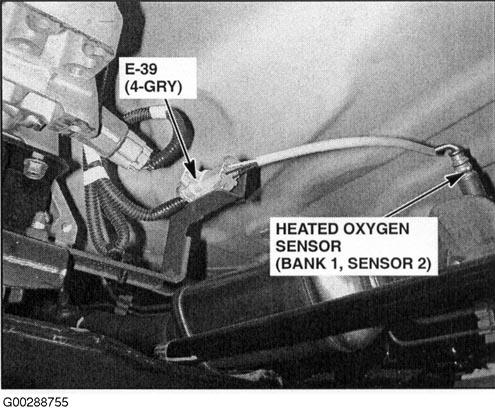

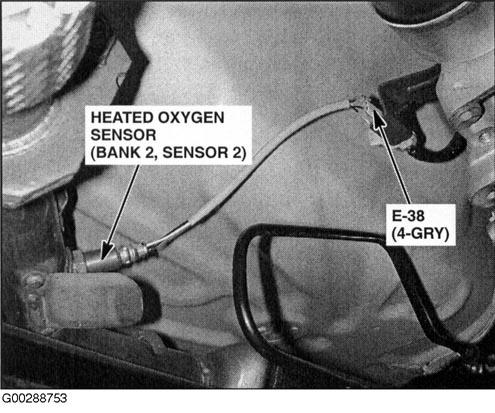

Fig 95: Rear Of Left Catalytic Converter
Courtesy of ISUZU MOTOR CO.

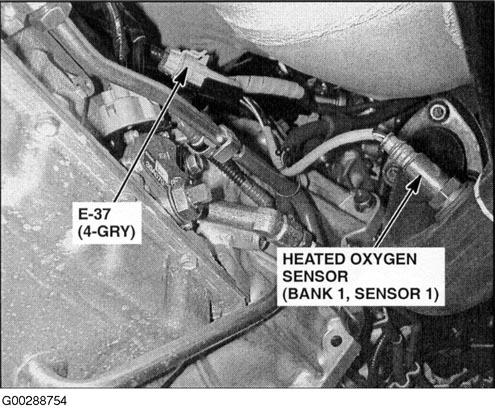

Fig 96: Right Front Exhaust Pipe
Courtesy of ISUZU MOTOR CO.
Fig 97: Rear Of Right Catalytic Converter
Courtesy of ISUZU MOTOR CO.

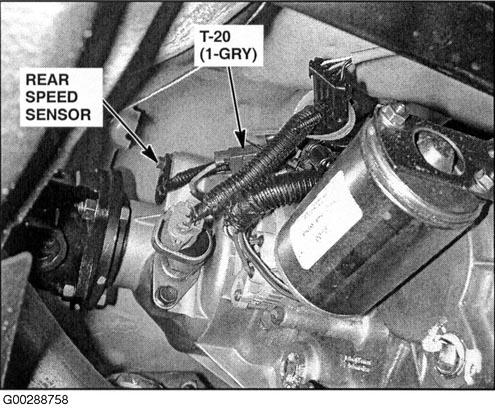

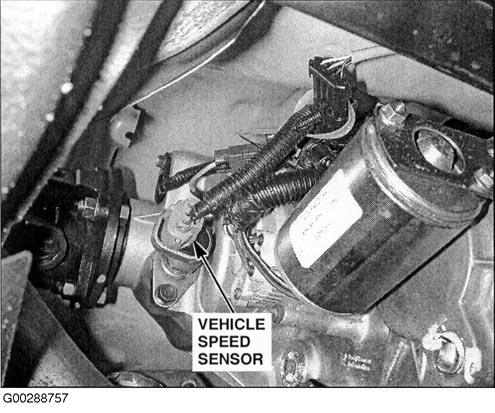

Fig 98: Right Rear Of Transfer Case
Courtesy of ISUZU MOTOR CO.
Fig 99: Right Rear Of Transfer Case
Courtesy of ISUZU MOTOR CO.
Fig 100: Right Rear Of Transfer Case
Courtesy of ISUZU MOTOR CO.

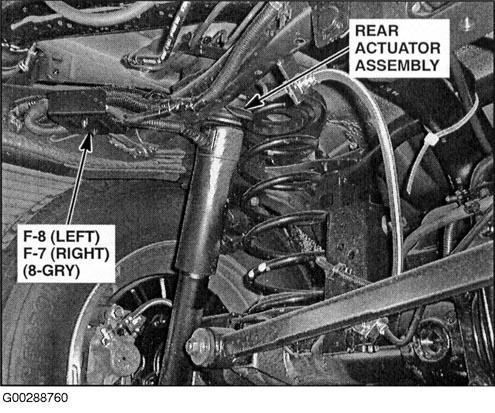

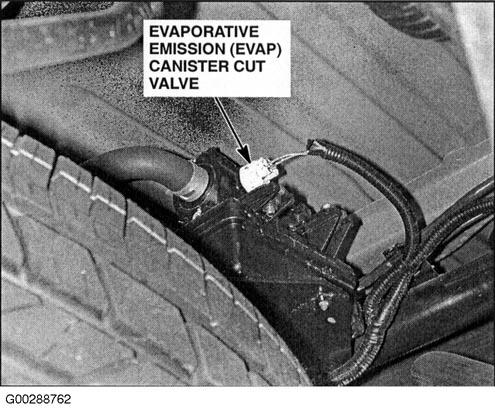

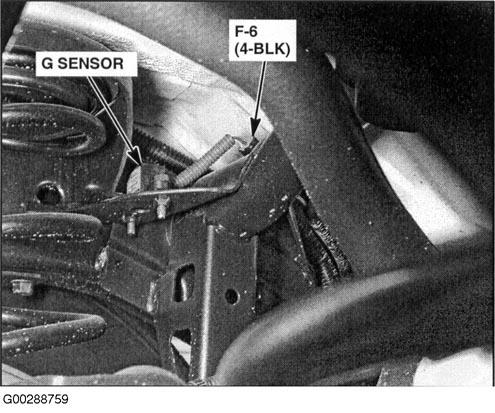

Fig 101: Below Left Rear Of Vehicle
Courtesy of ISUZU MOTOR CO.
Fig 102: Below Left Rear Of Vehicle (Right Similar)
Courtesy of ISUZU MOTOR CO.

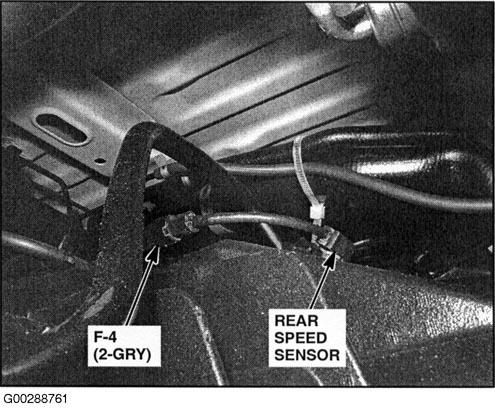

Fig 103: Under Rear Of Vehicle, On Differential
Courtesy of ISUZU MOTOR CO.
Fig 104: Under Rear Of Vehicle
Courtesy of ISUZU MOTOR CO.
Fig 105: Under Driver's Seat
Courtesy of ISUZU MOTOR CO.
Fig 106: Under Driver's Seat (Right Front Similar)
Courtesy of ISUZU MOTOR CO.

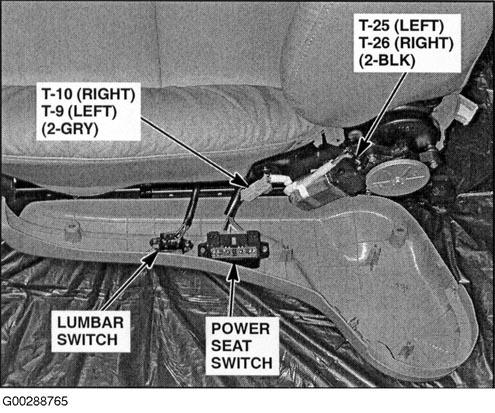

Fig 107: Left Side Of Driver's Seat (Right Front Similar)
Courtesy of ISUZU MOTOR CO.
Fig 108: Below Right Side Of Center Console
Courtesy of ISUZU MOTOR CO.
Fig 109: Below Right Side Of Dash
Courtesy of ISUZU MOTOR CO.

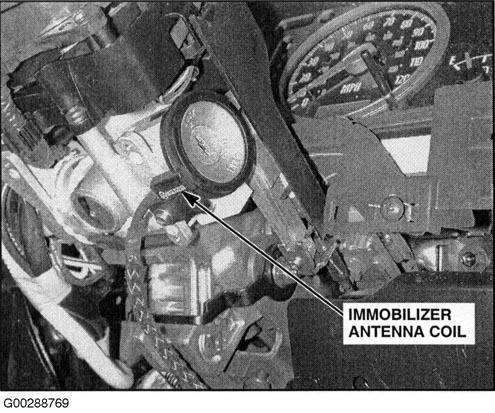

Fig 110: Right Side Of Steering Column
Courtesy of ISUZU MOTOR CO.

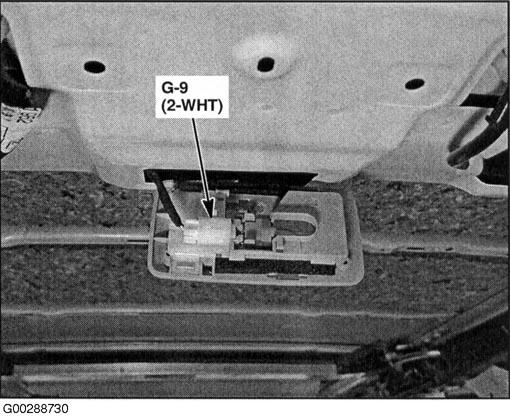

Fig 111: Left Rear Of Roof
Courtesy of ISUZU MOTOR CO.
Fig 112: Top Of Transfer Case
Courtesy of ISUZU MOTOR CO.
