Ignition Coil: Removal

  1. Disconnect battery ground cable.
  2. Ignition coil connector and ignition coil.
    • Disconnect three connector from ignition coil.
    • Remove harness bracket bolt on cylinder head cover.
    • Remove fixing bolts on ignition coil.

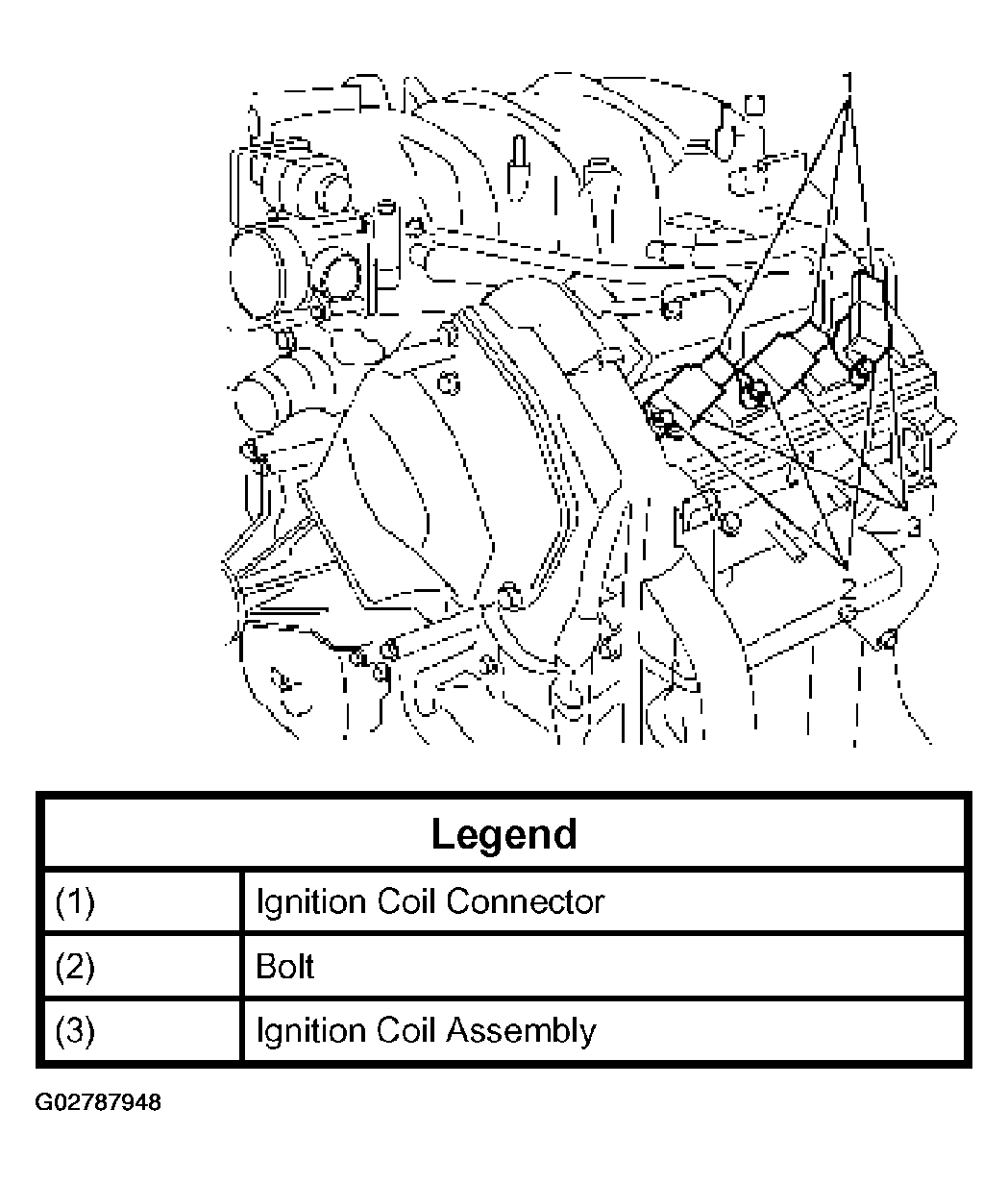

    Fig 1: Removing Fixing Bolts On Ignition Coil
    G02787948Courtesy of ISUZU MOTOR CO.
