Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

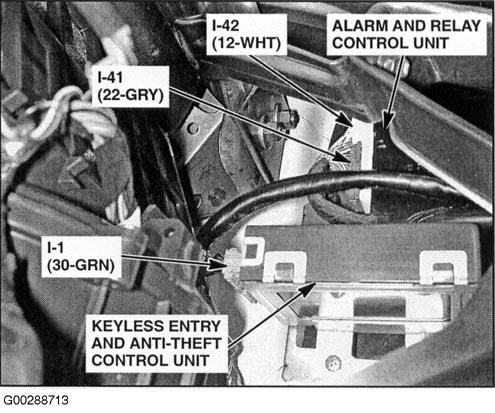

| Alarm & Relay Control Unit | On right side of dash. See Figure . |

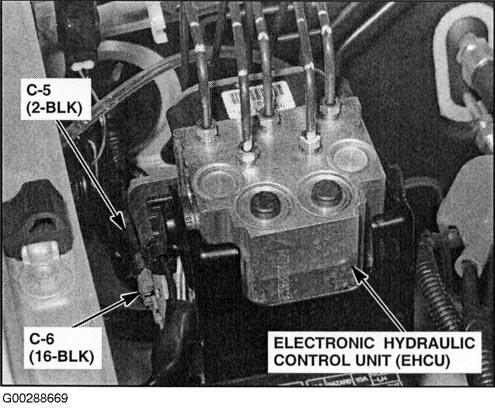

| Electronic Hydraulic Control Unit (EHCU) | Right rear corner of engine compartment. See Figure . |

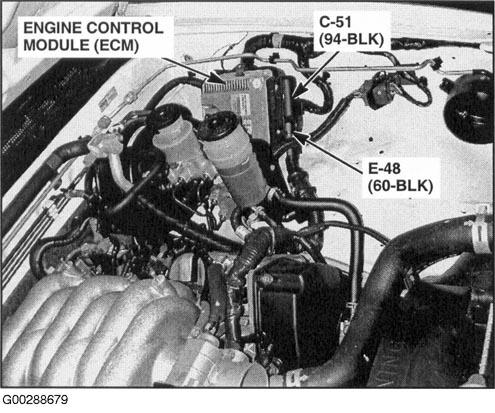

| Engine Control Module (ECM) | Left side of engine compartment. See Figure . |

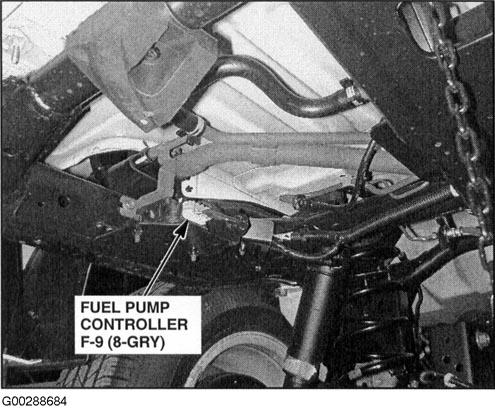

| Fuel Pump Controller | Near left rear frame rail. See Figure . |

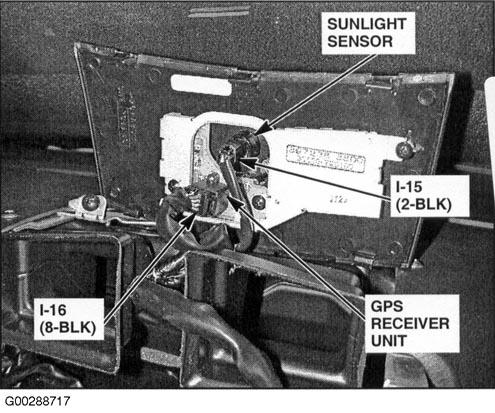

| GPS Receiver Unit | Top center of dash. See Figure . |

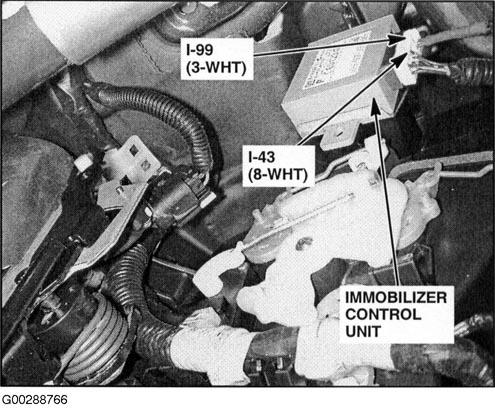

| Immobilizer Control Unit | In right side of steering column. See Figure . |

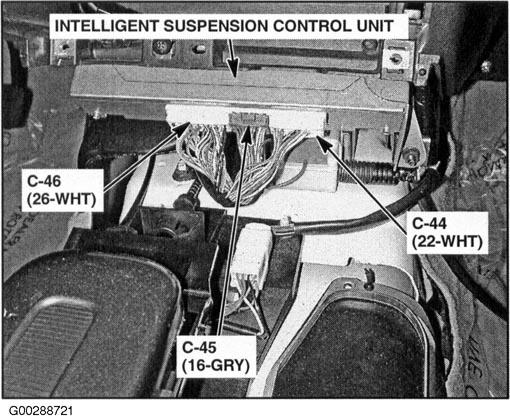

| Intelligent Suspension Control Unit | Below center of dash. See Figure . |
| Keyless Entry & Anti-Theft Control Unit | On right side of dash, behind glove box. See Figure . |

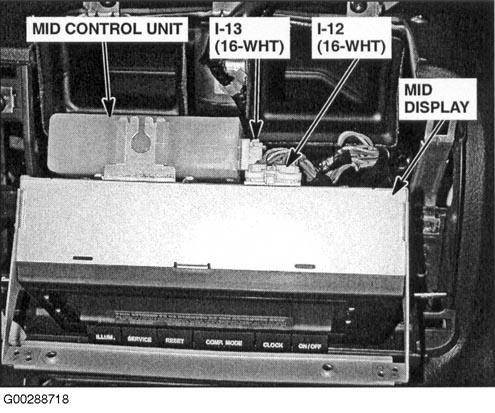

| MID Control Unit | Behind center of dash. See Figure . |

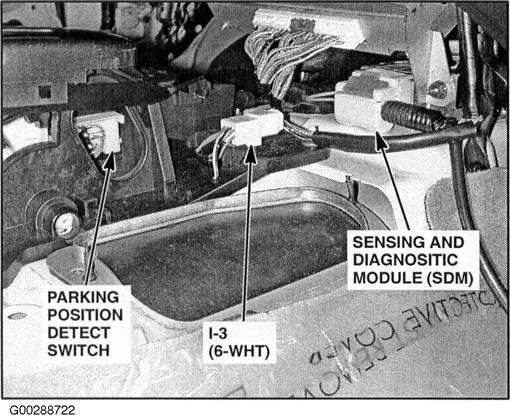

| Sensing & Diagnostic Module (SDM) | Under front of center console. See Figure . |

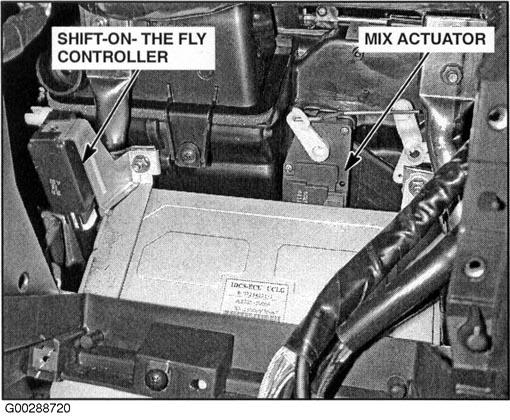

| Shift-On-The-Fly Controller | Behind the radio. See Figure . |

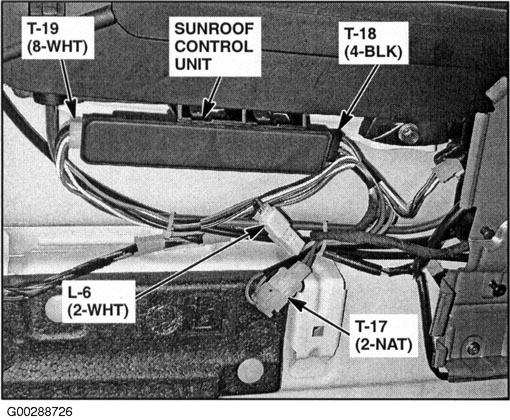

| Sunroof Control Unit | Center front of roof. See Figure . |

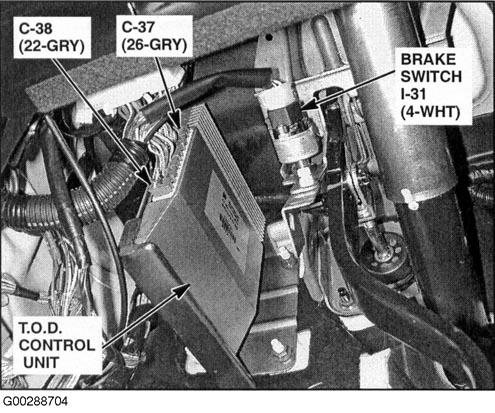

| TOD Control Unit | Below left side of dash. See Figure . |

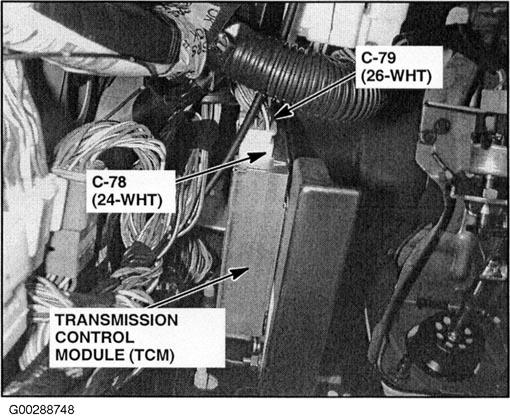

| Transmission Control Module (TCM) | Below left side of I/P. See Figure . |
