Torque Specification

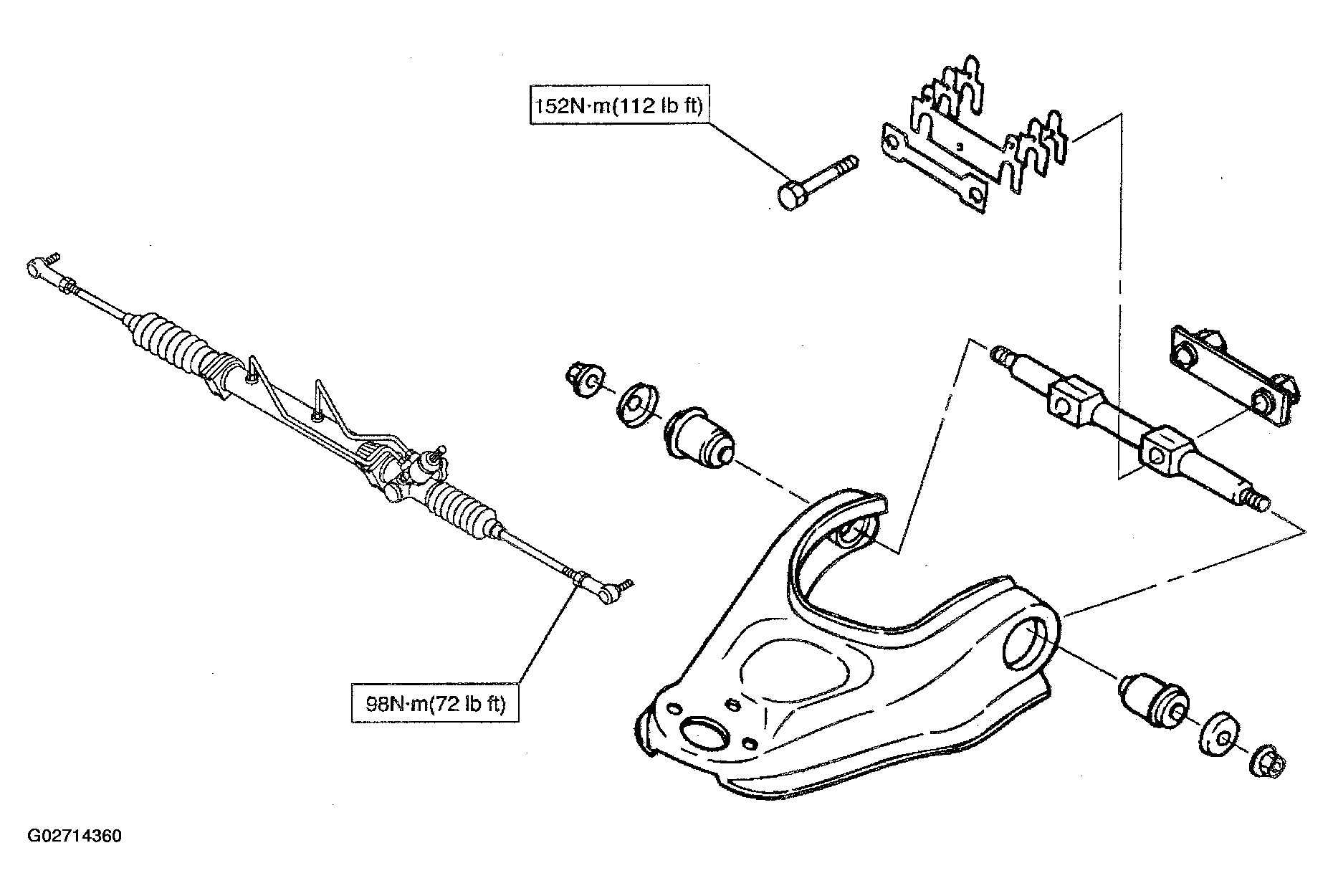

Fig 1: Front End Alignment Torque Specification
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
