Torque Specifications

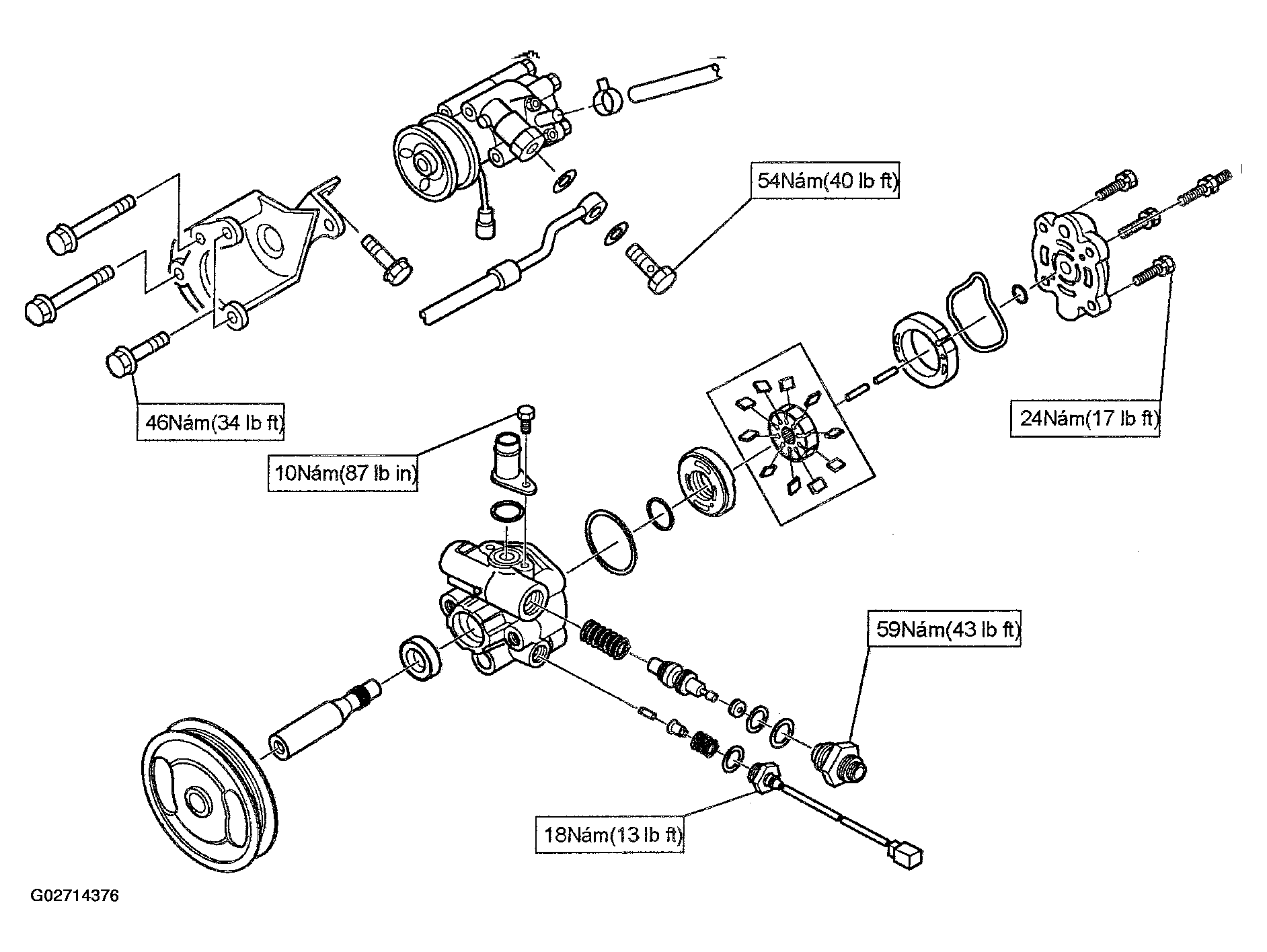

Fig 1: Power Steering Pump Components Torque Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
