Parts Location

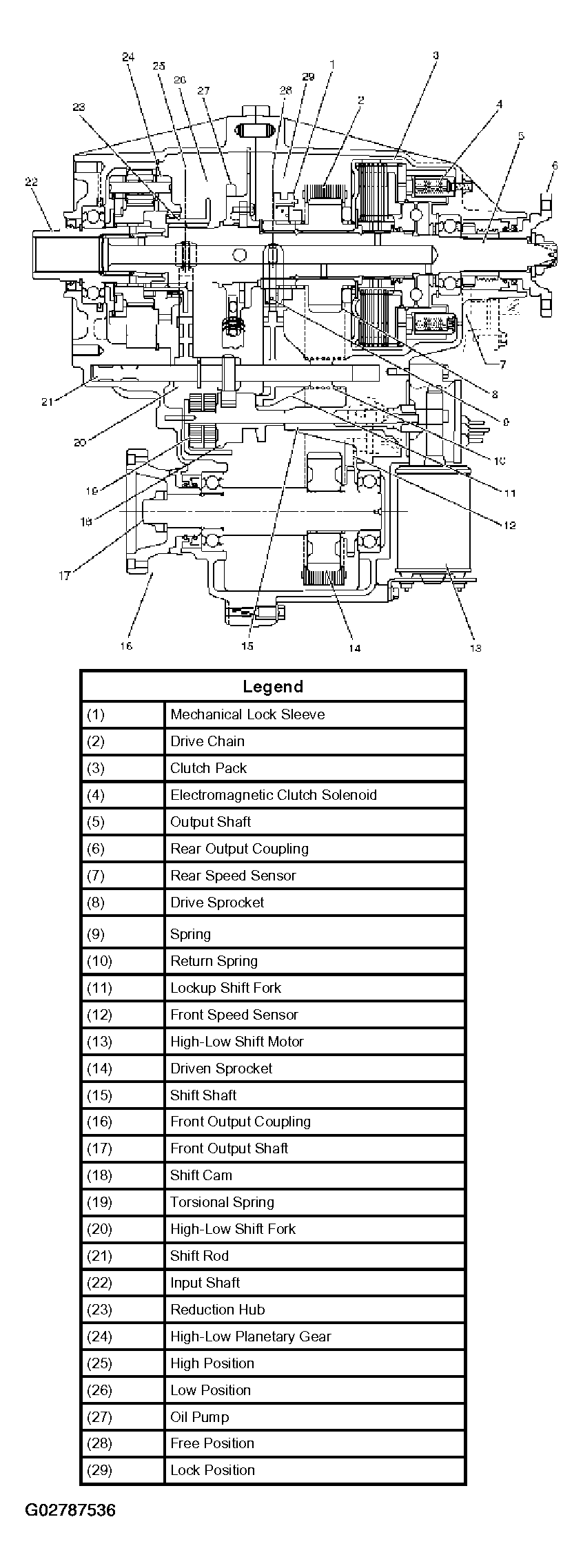

Fig 1: Identifying System Components Parts Location
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
