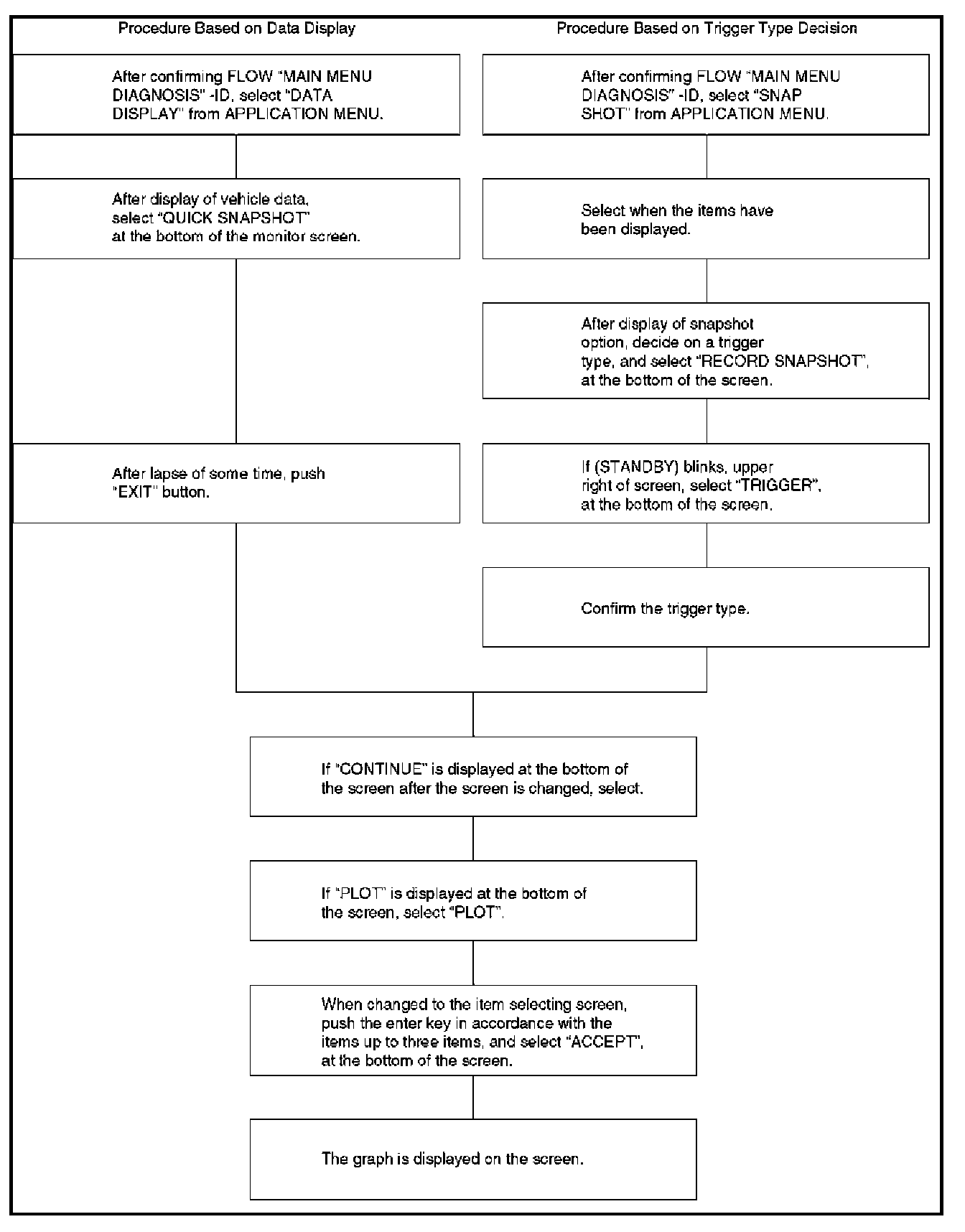

Plotting Graph Flow Chart
Plotting Graph Flow Chart (Plotting Graph after Obtaining Vehicle Information)
