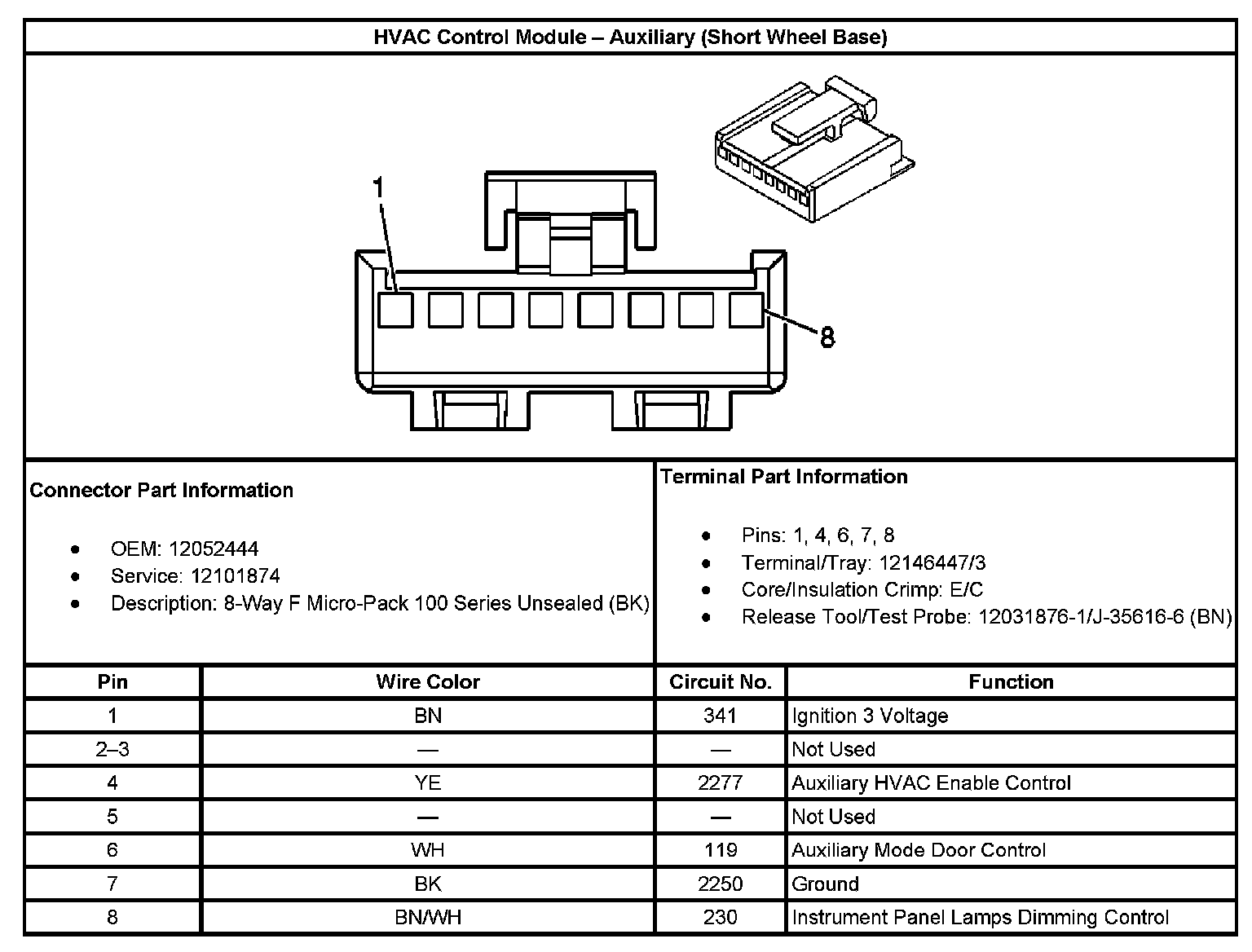

HVAC Control Module - Auxiliary (Short Wheel Base)
HVAC Control Module - Auxiliary (Short Wheel Base):
