Coolant Temperature Sensor/Switch (For Computer): Locations

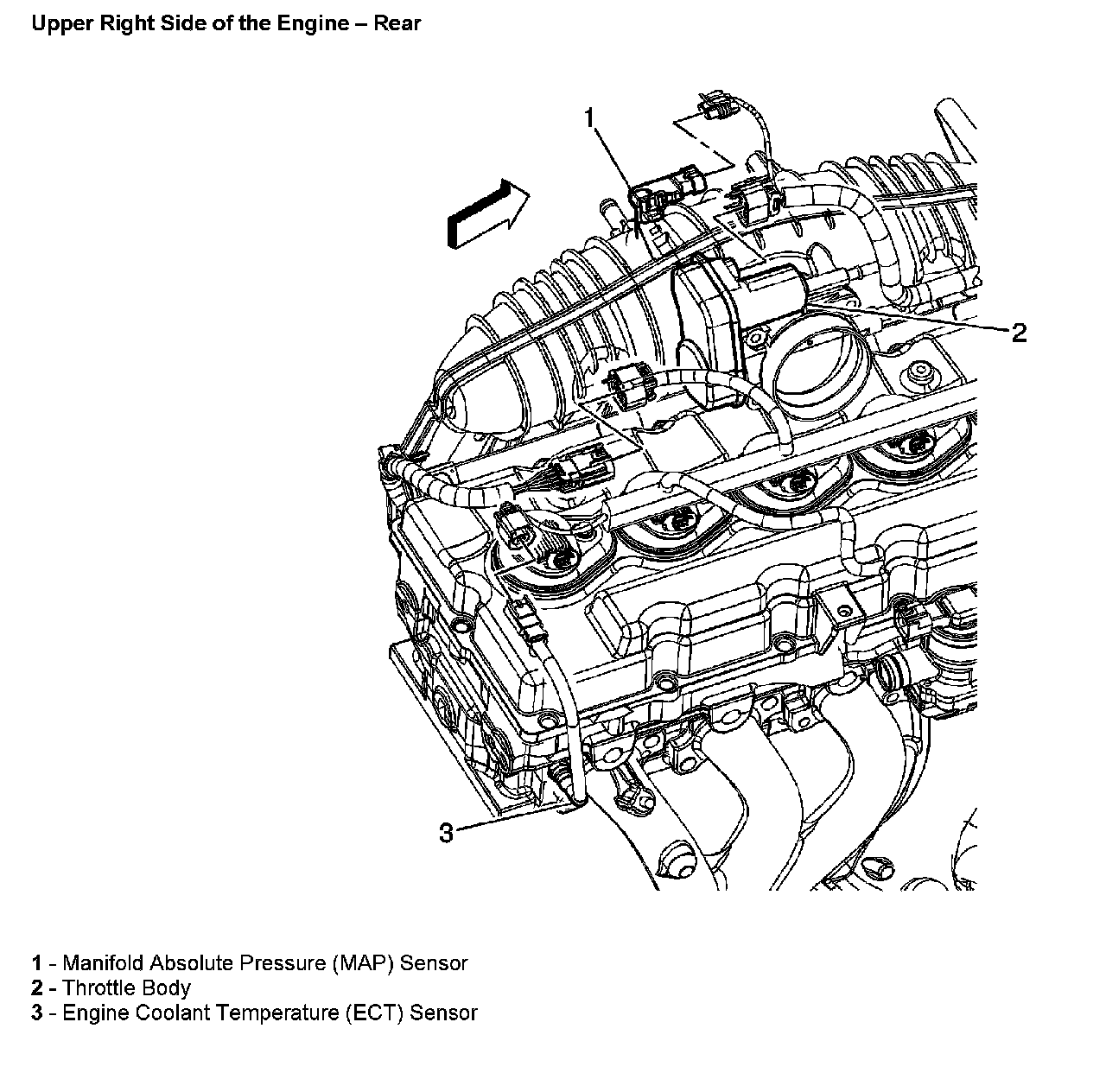

Upper Right Side Of The Engine - Rear:

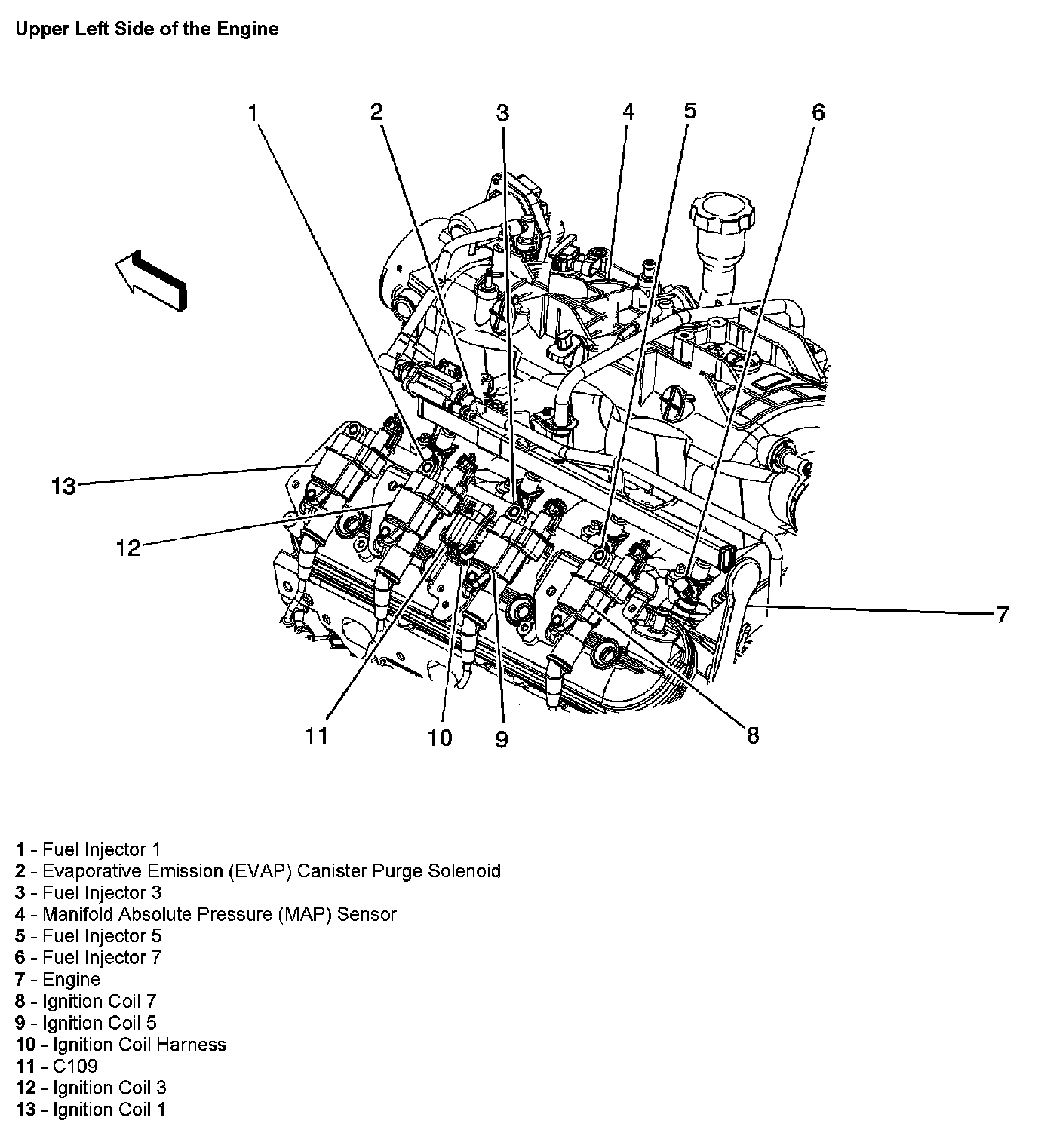

Upper Left Side Of The Engine:
