Control Module, A/T

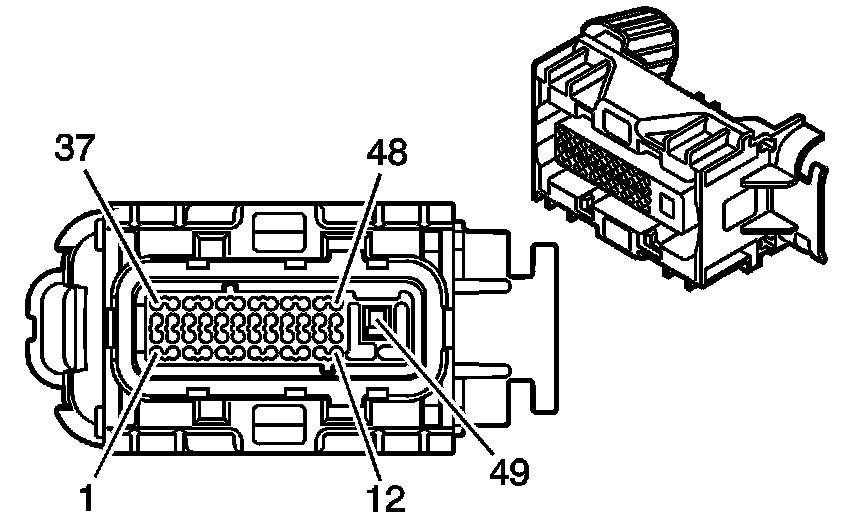

Automatic Transmission Related Connector End Views

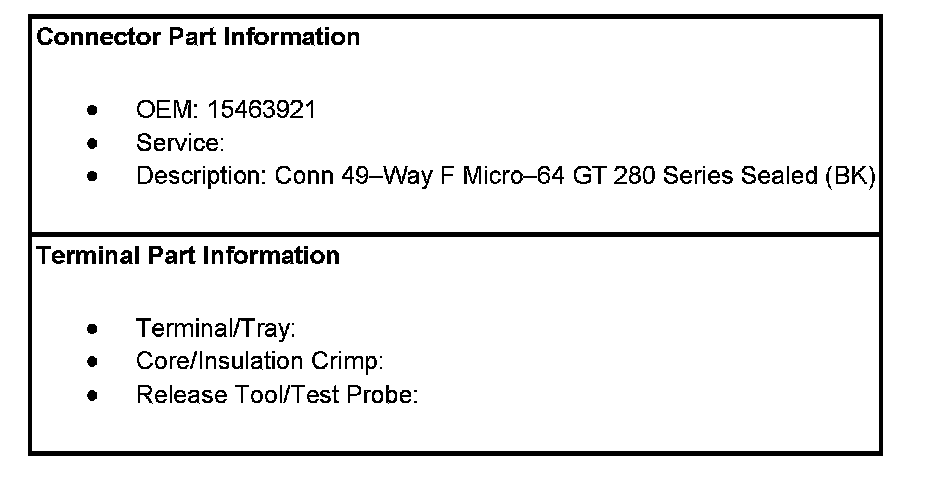

Transmission Control Module (TCM), Engine Side:

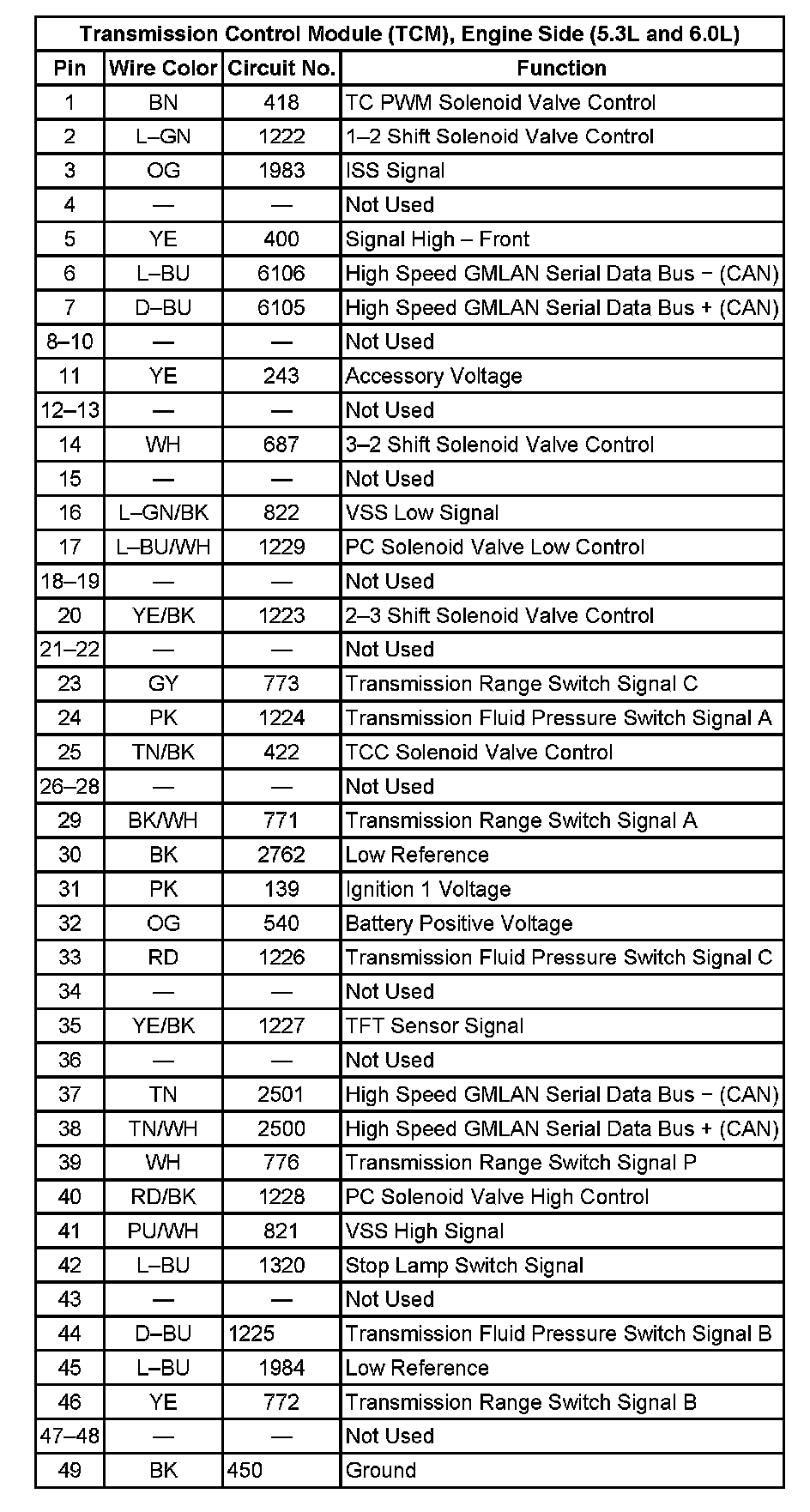

Transmission Control Module (TCM), Engine Side (5.3L and 6.0L):
