Scan Tool Data List

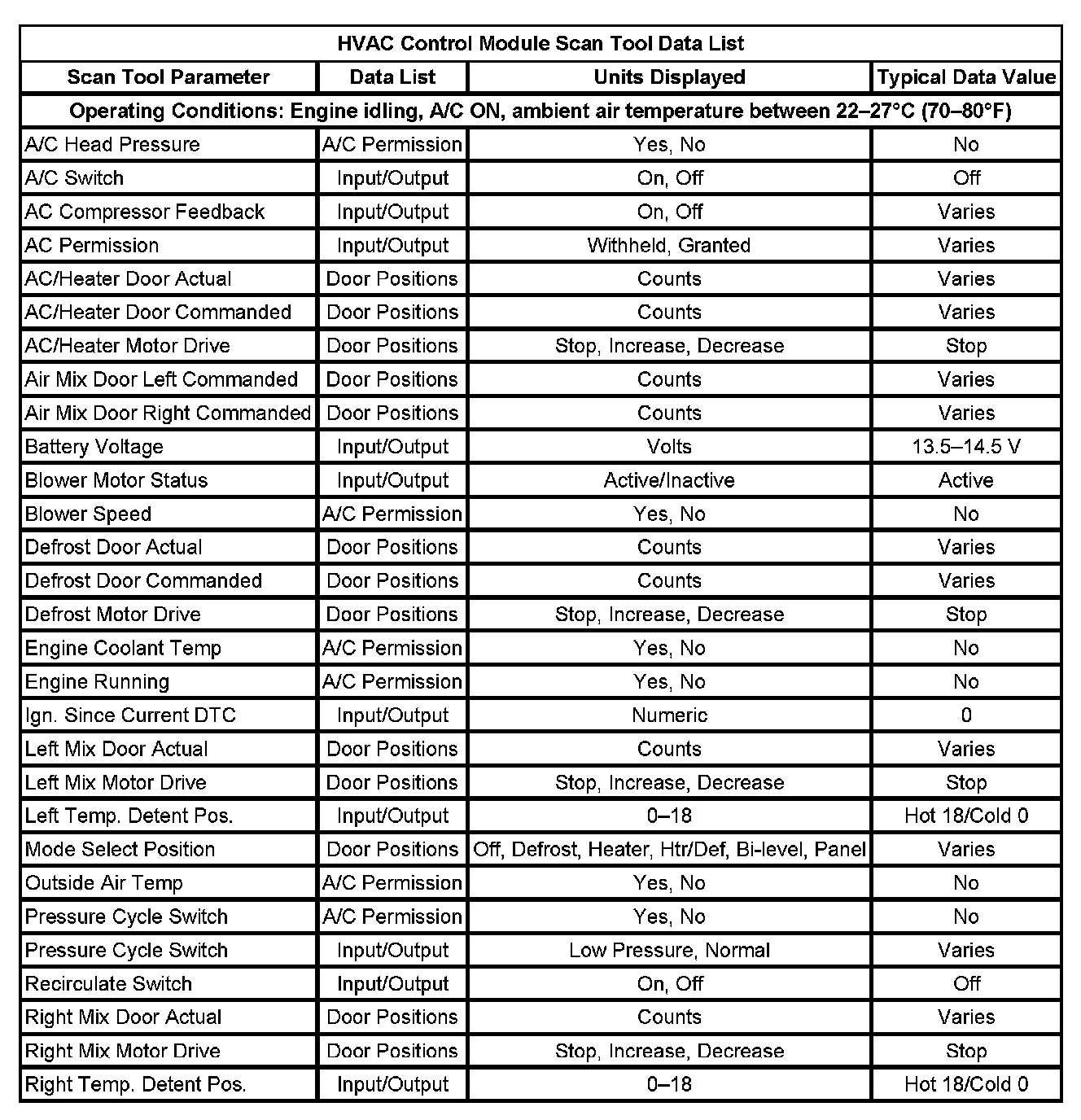

HVAC Control Module Scan Tool Data List:

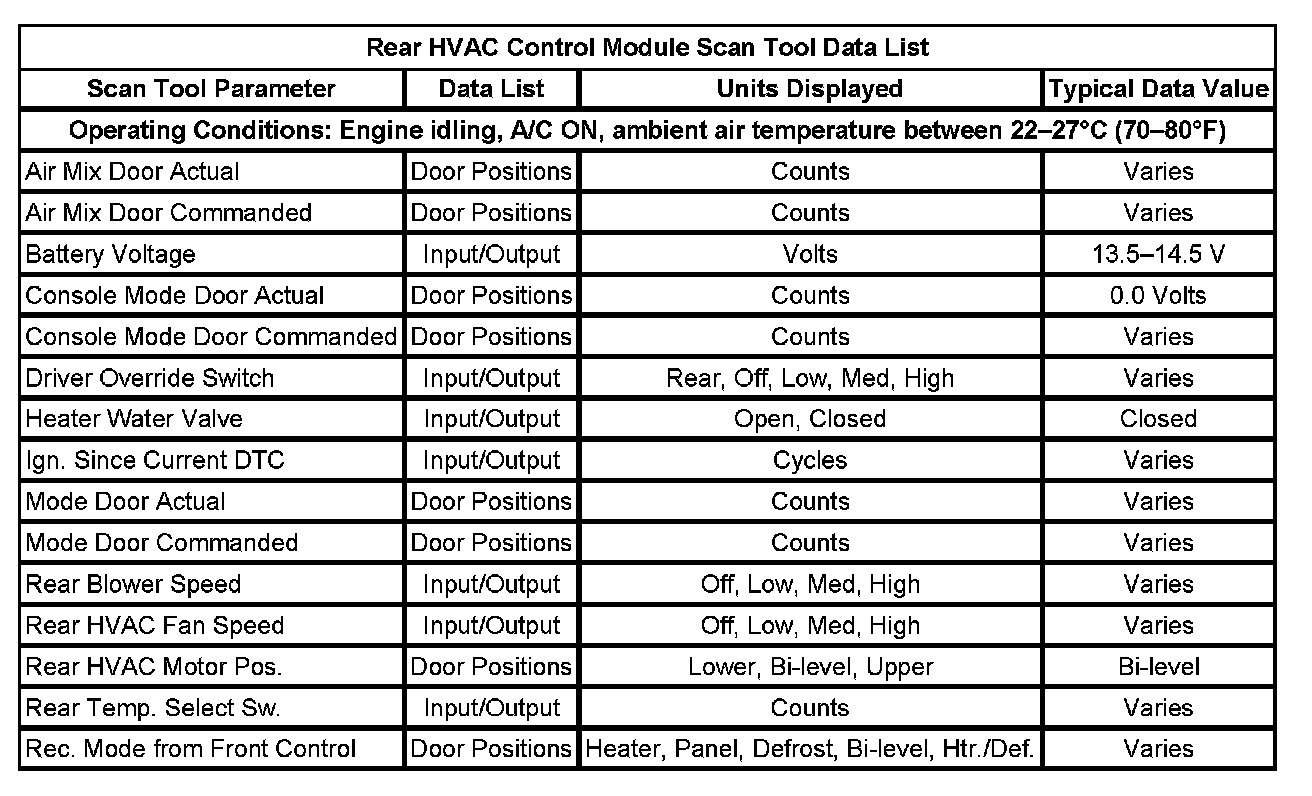

Rear HVAC Control Module Scan Tool Data List:

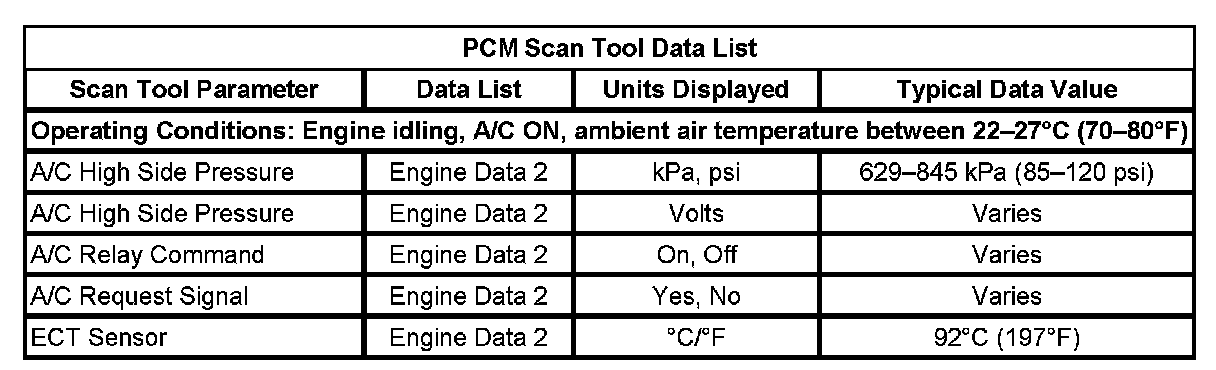

PCM Scan Tool Data List:
