60. Input Speed Sensor Removal



Input Speed Sensor Removal

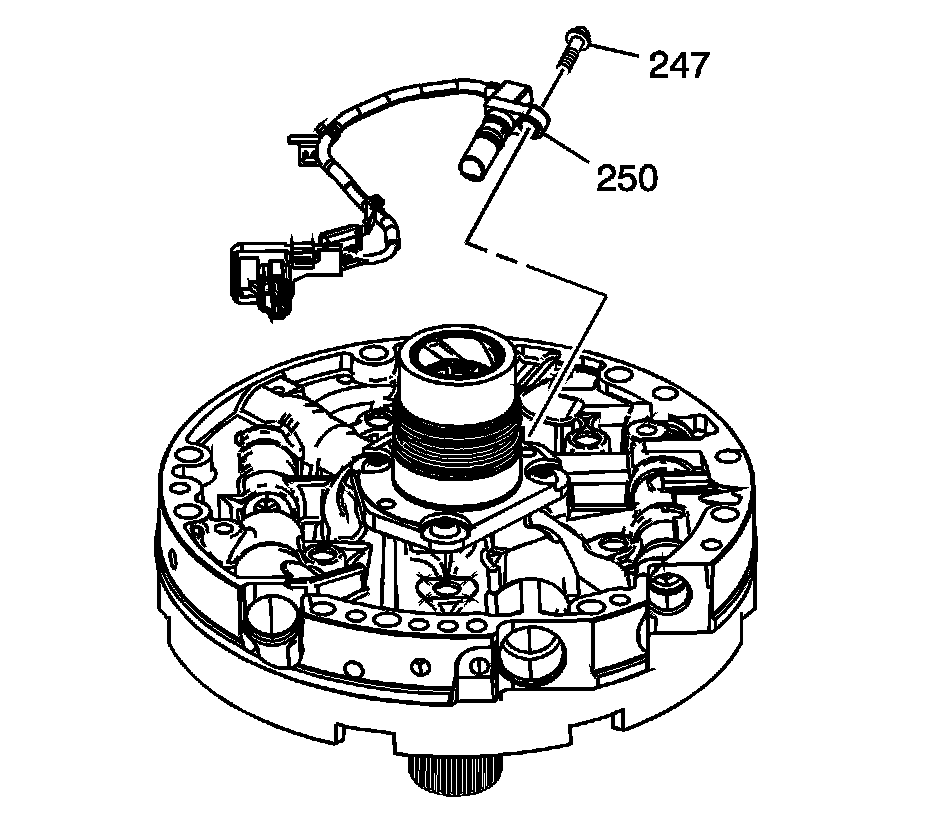

1. Remove the input speed sensor (ISS) retaining bolt (247).
2. Remove the ISS retaining clips and ISS assembly (250).
