Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case >> Transfer Case - Isuzu T150 >> Transfer Case Shift Control Module C2

April 5, 2026: LEMON Manuals is launched! Read the announcement.

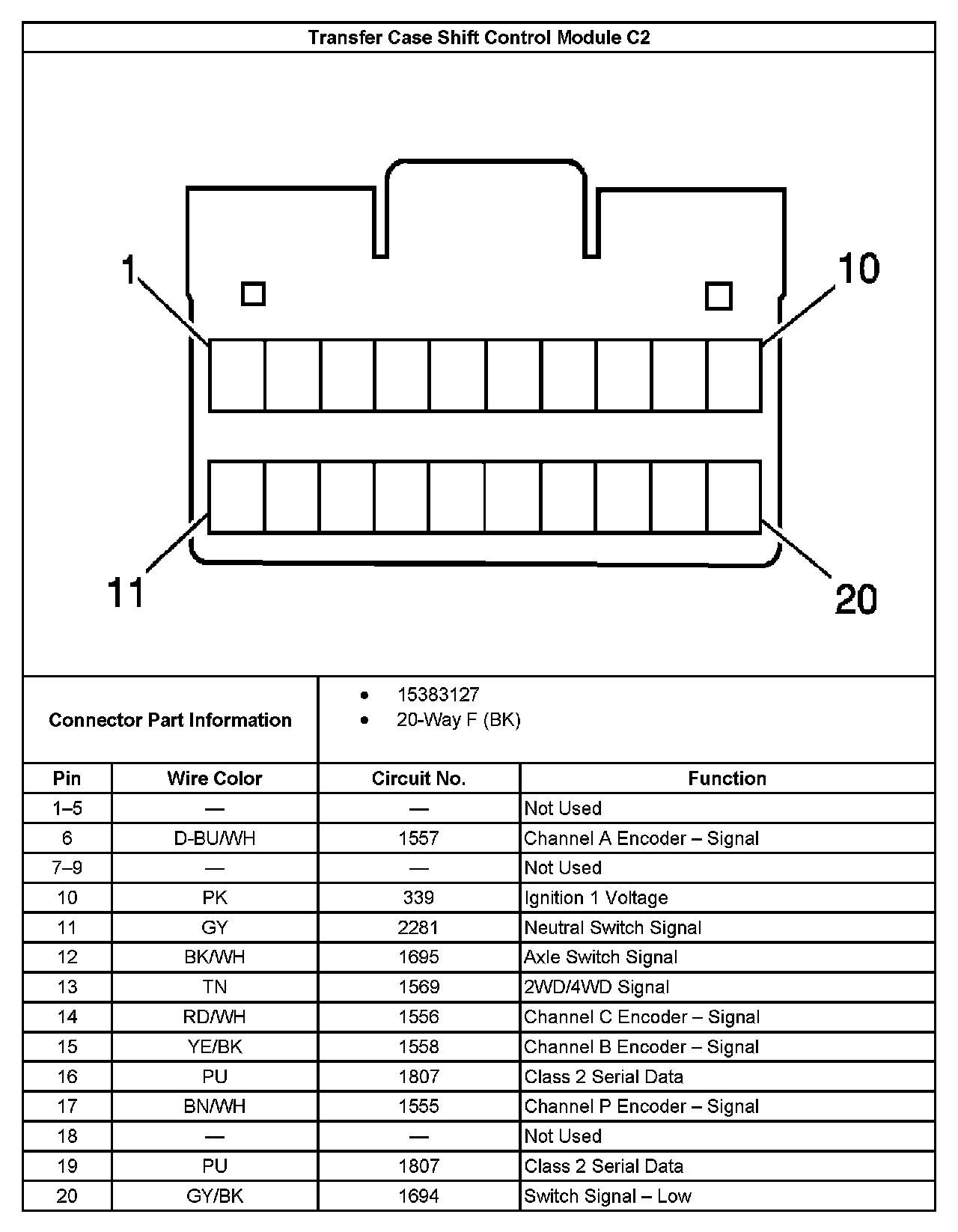

Transfer Case Shift Control Module C2
