Powertrain Control Module (PCM) C2

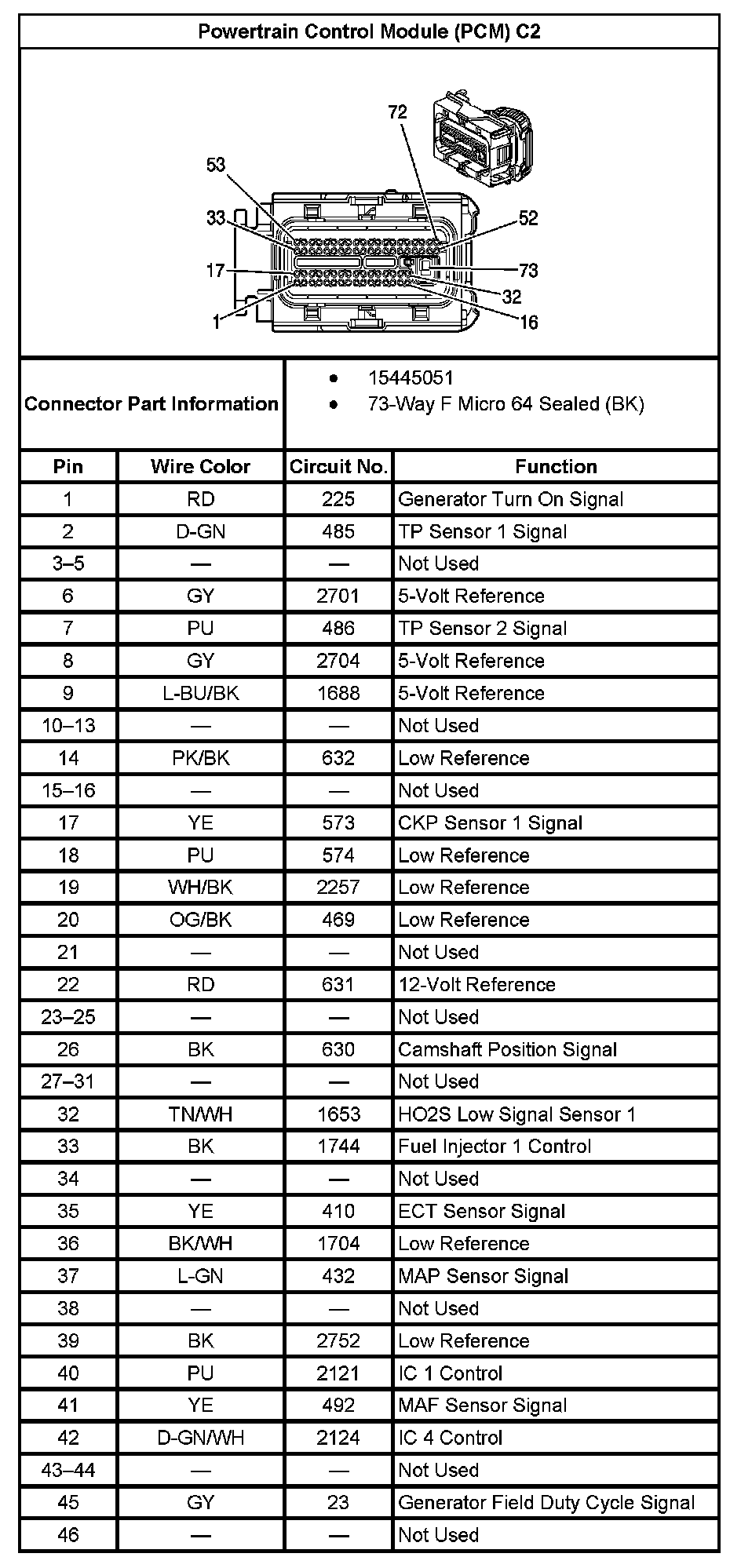

Powertrain Control Module (PCM) C2 (Part 1):

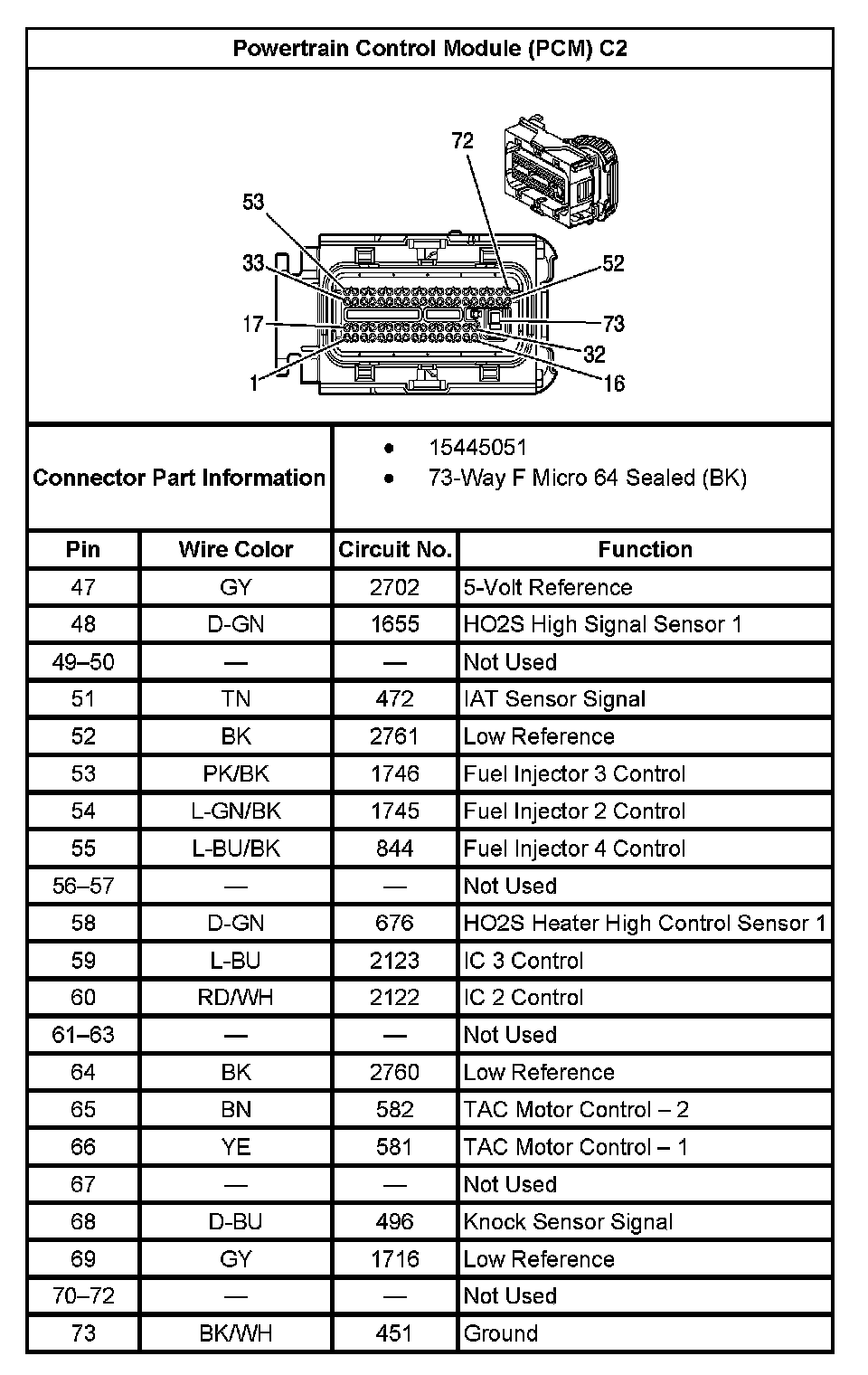

Powertrain Control Module (PCM) C2 (Part 2):
