Powertrain Control Module (PCM) C3

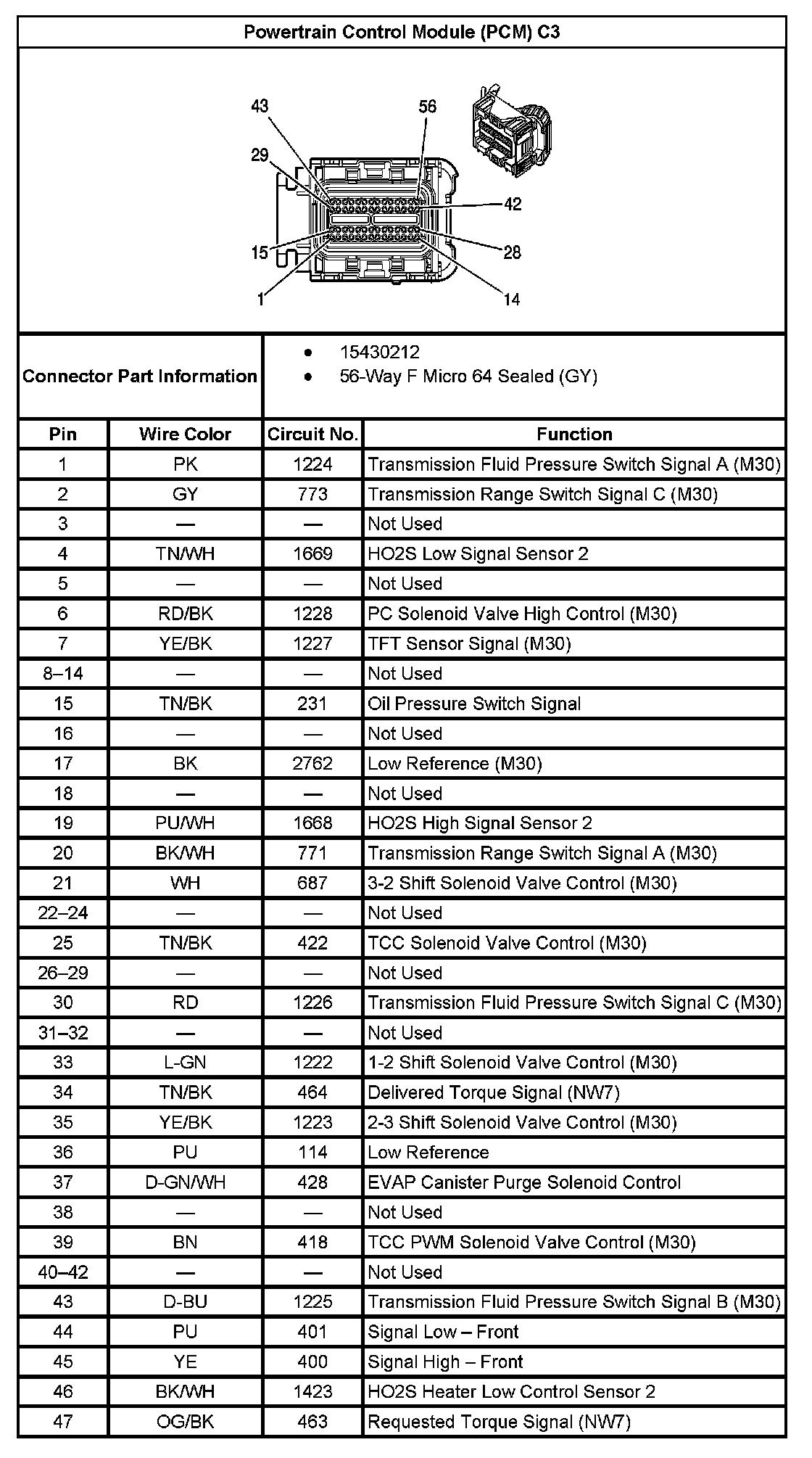

Powertrain Control Module (PCM) C3 (Part 1):

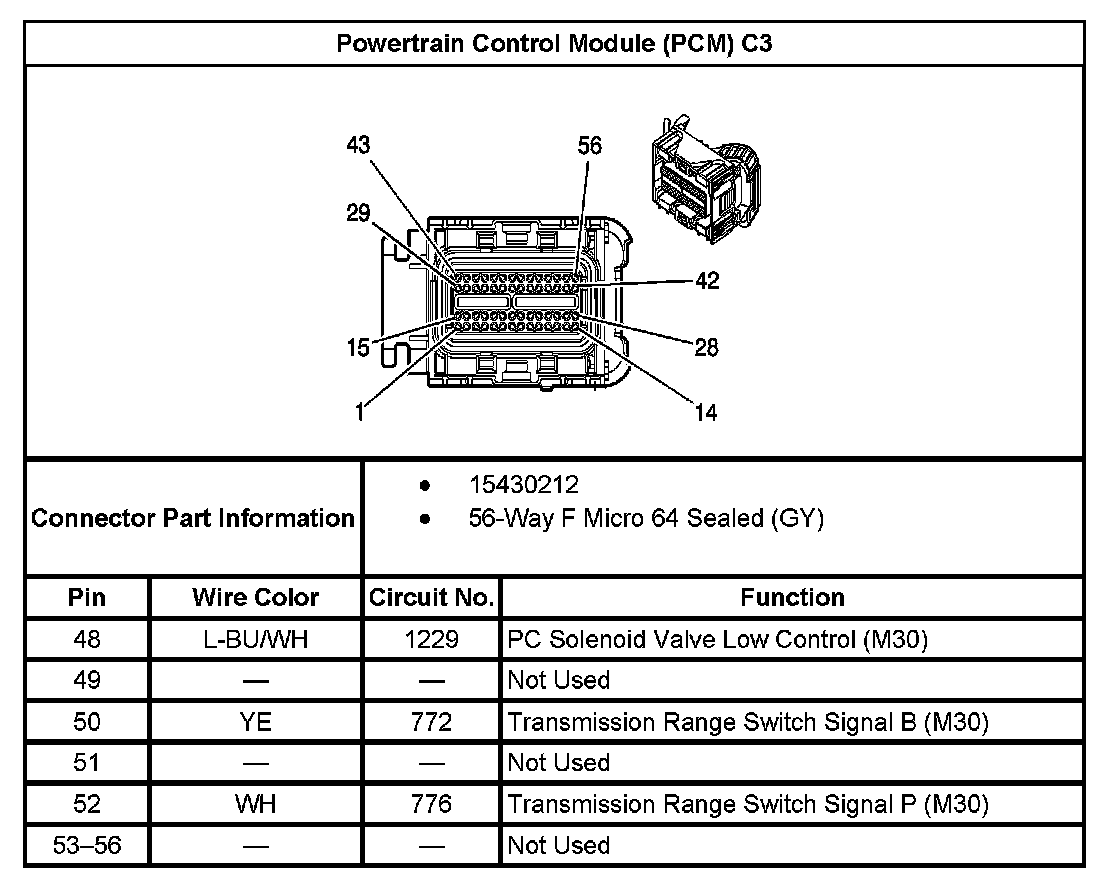

Powertrain Control Module (PCM) C3 (Part 2):
