Part 2



Thread Repair Specifications

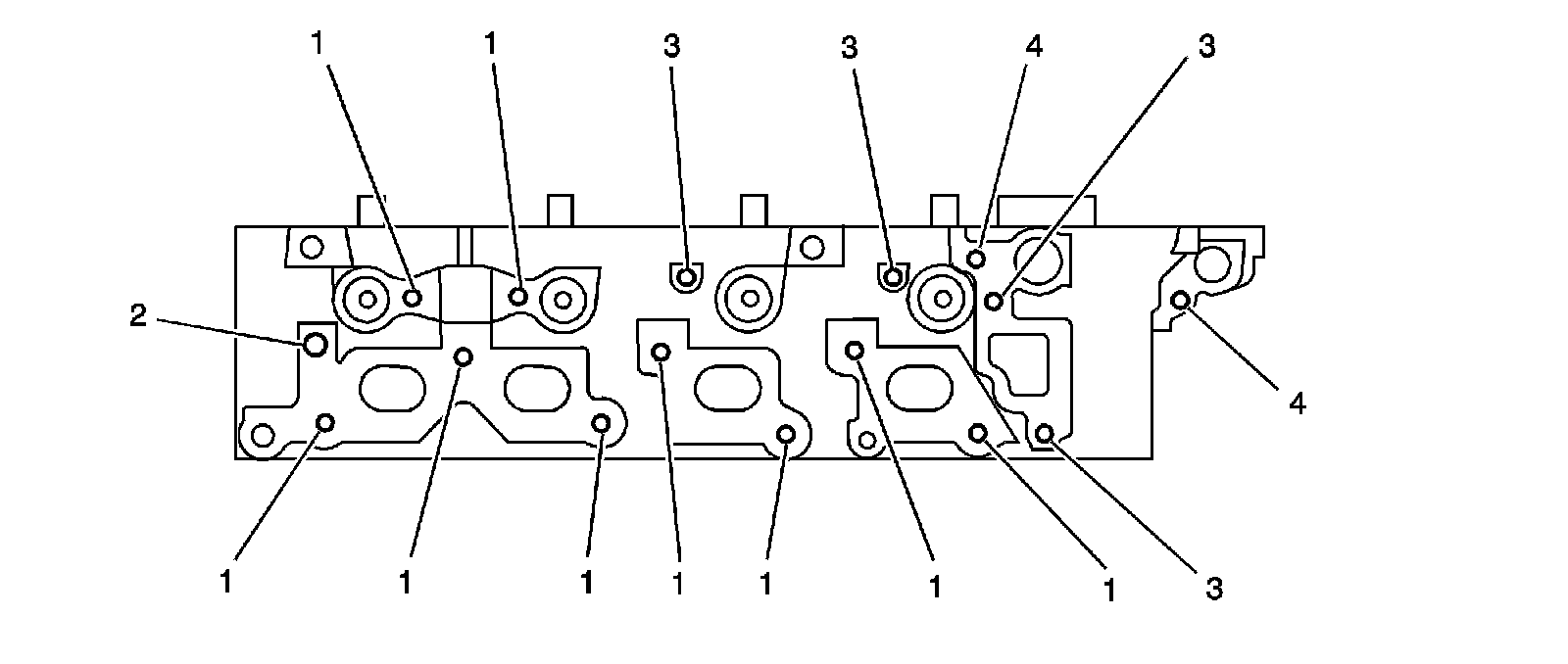

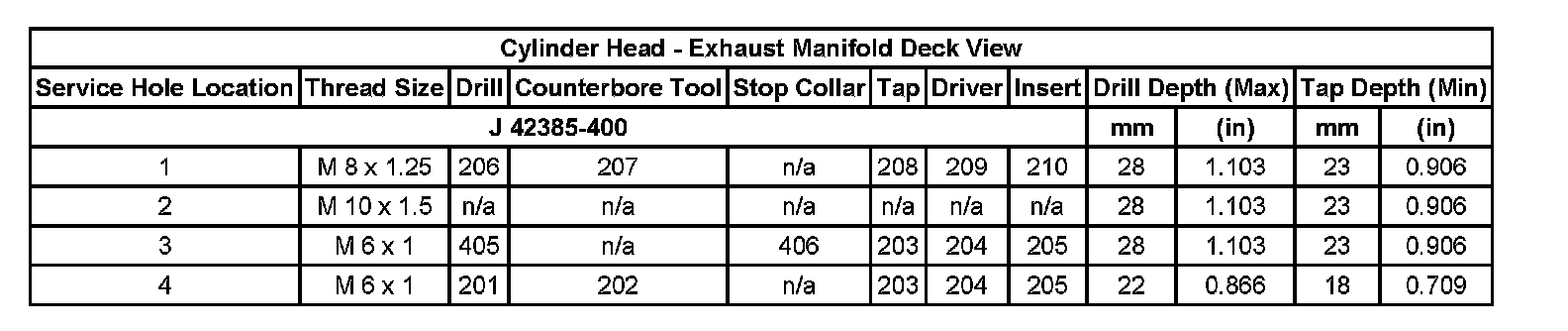

Cylinder Head - Exhaust Manifold Deck View:




Cylinder Head - Exhaust Manifold Deck View:

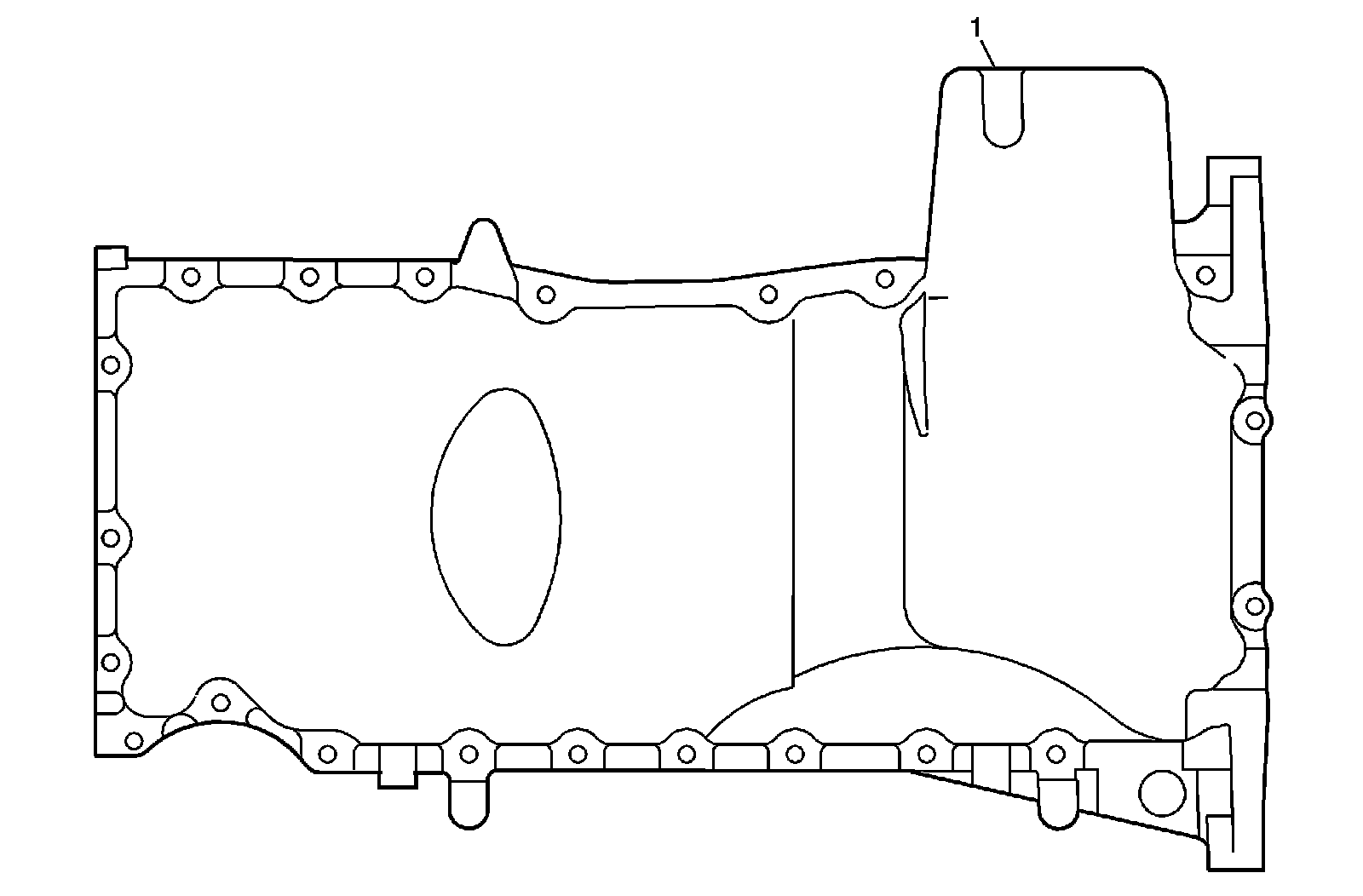

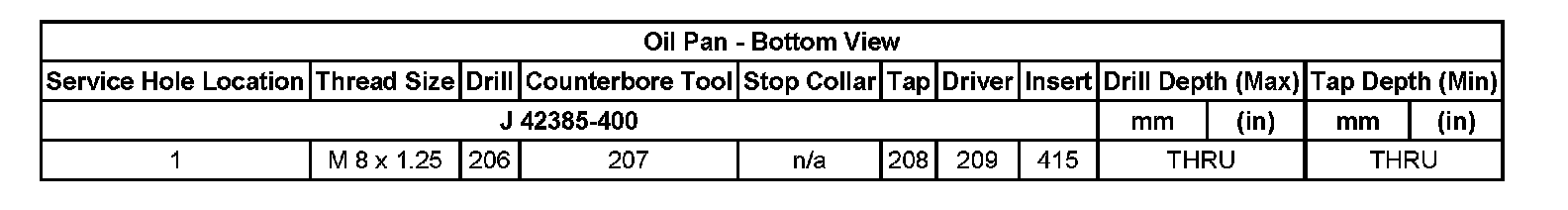

Oil Pan - Bottom View:




Oil Pan - Bottom View:

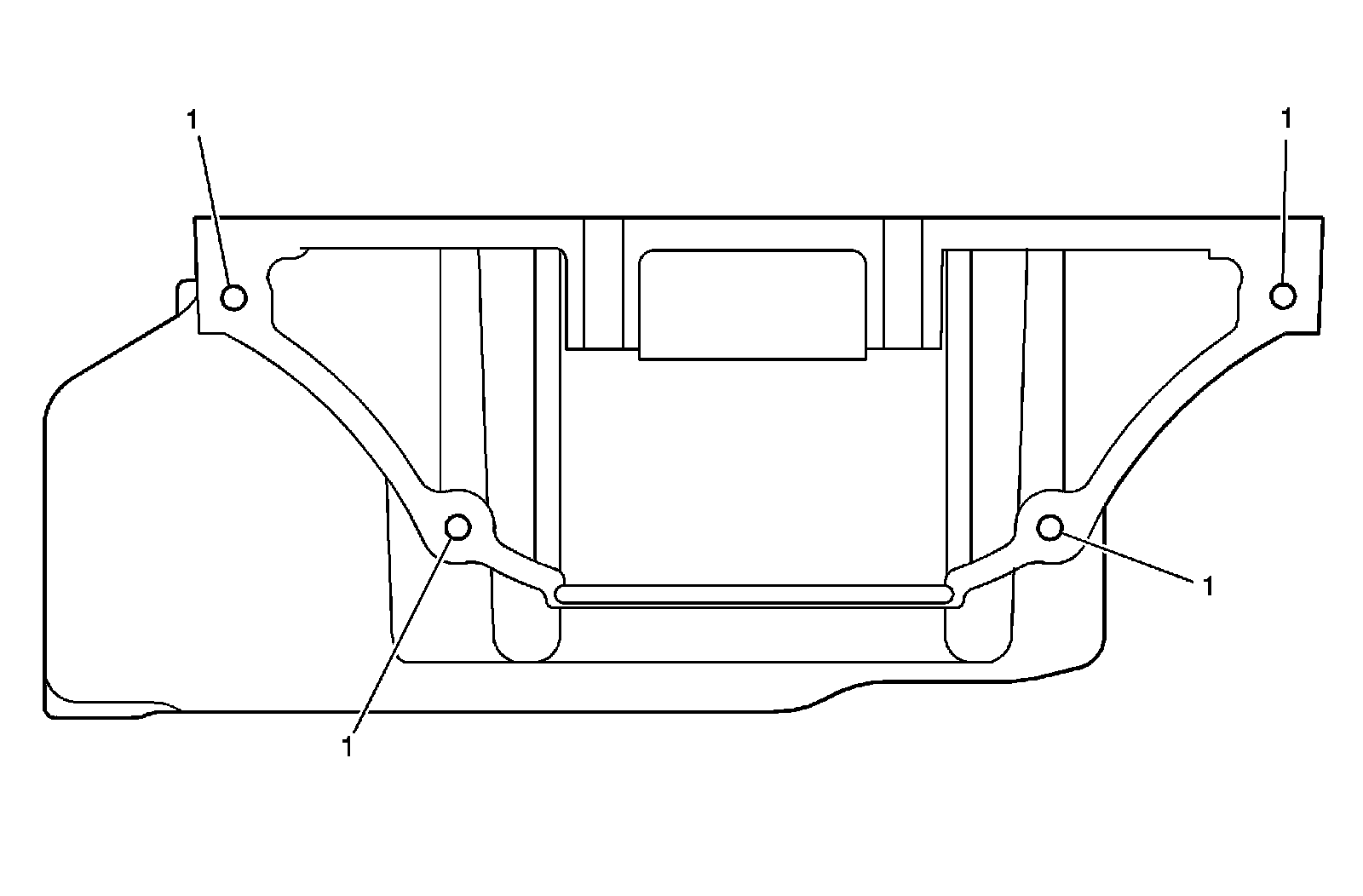

Oil Pan - Rear View:

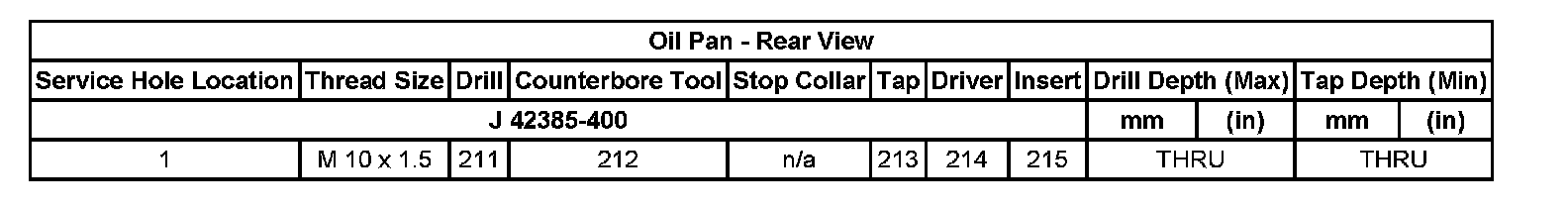

Oil Pan - Rear View:

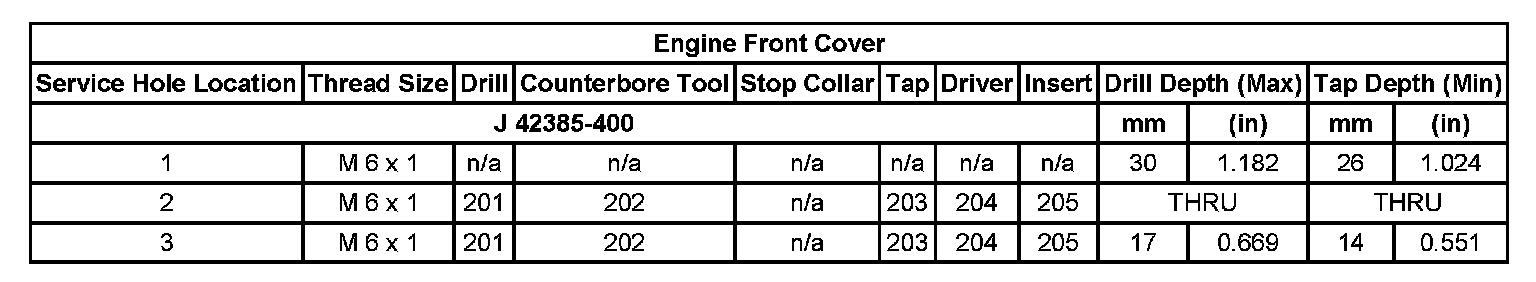

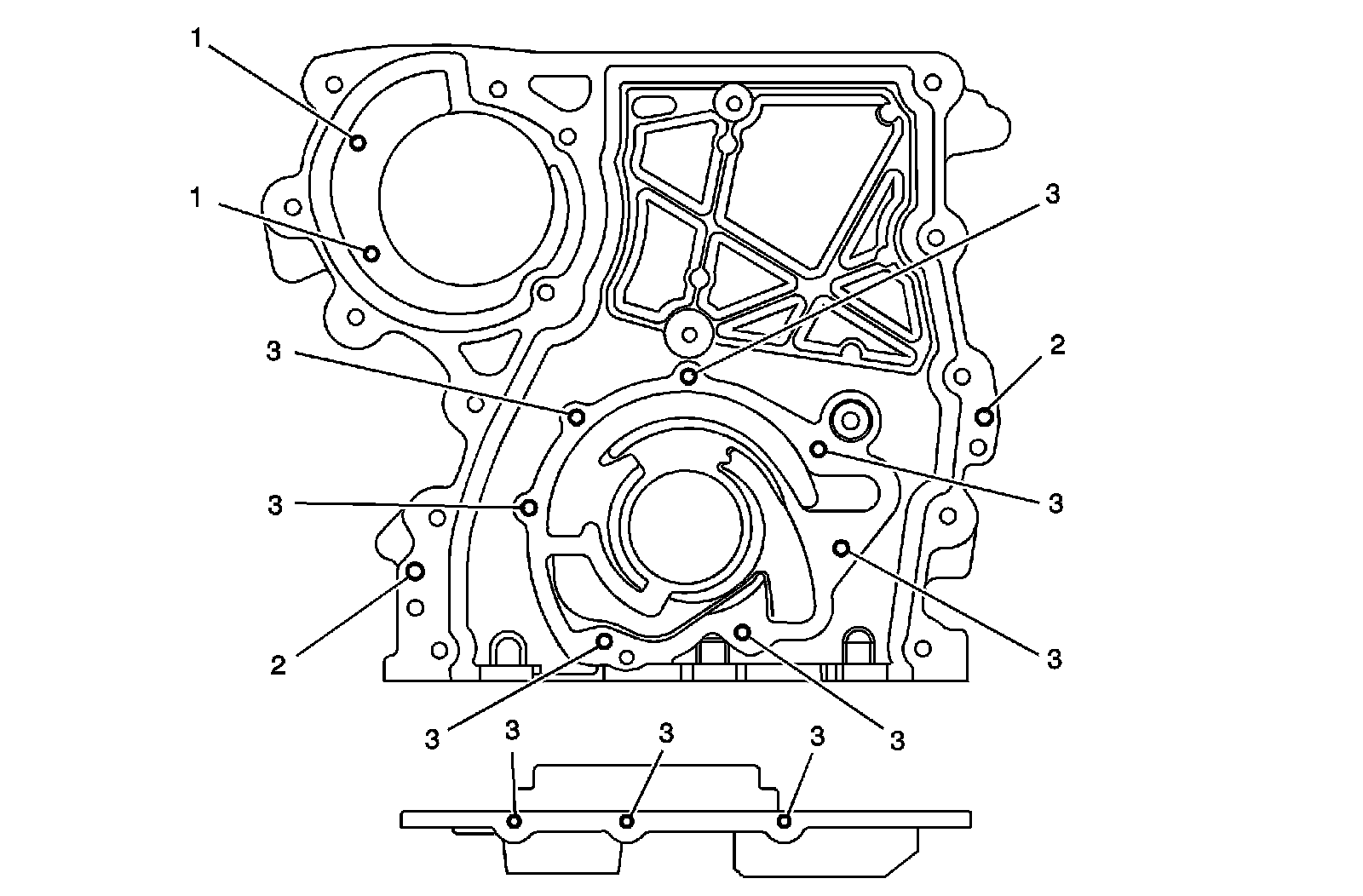

Engine Front Cover:




Engine Front Cover:

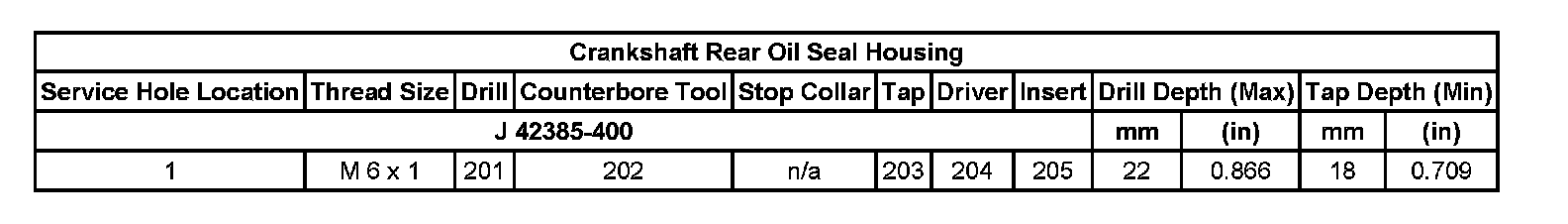

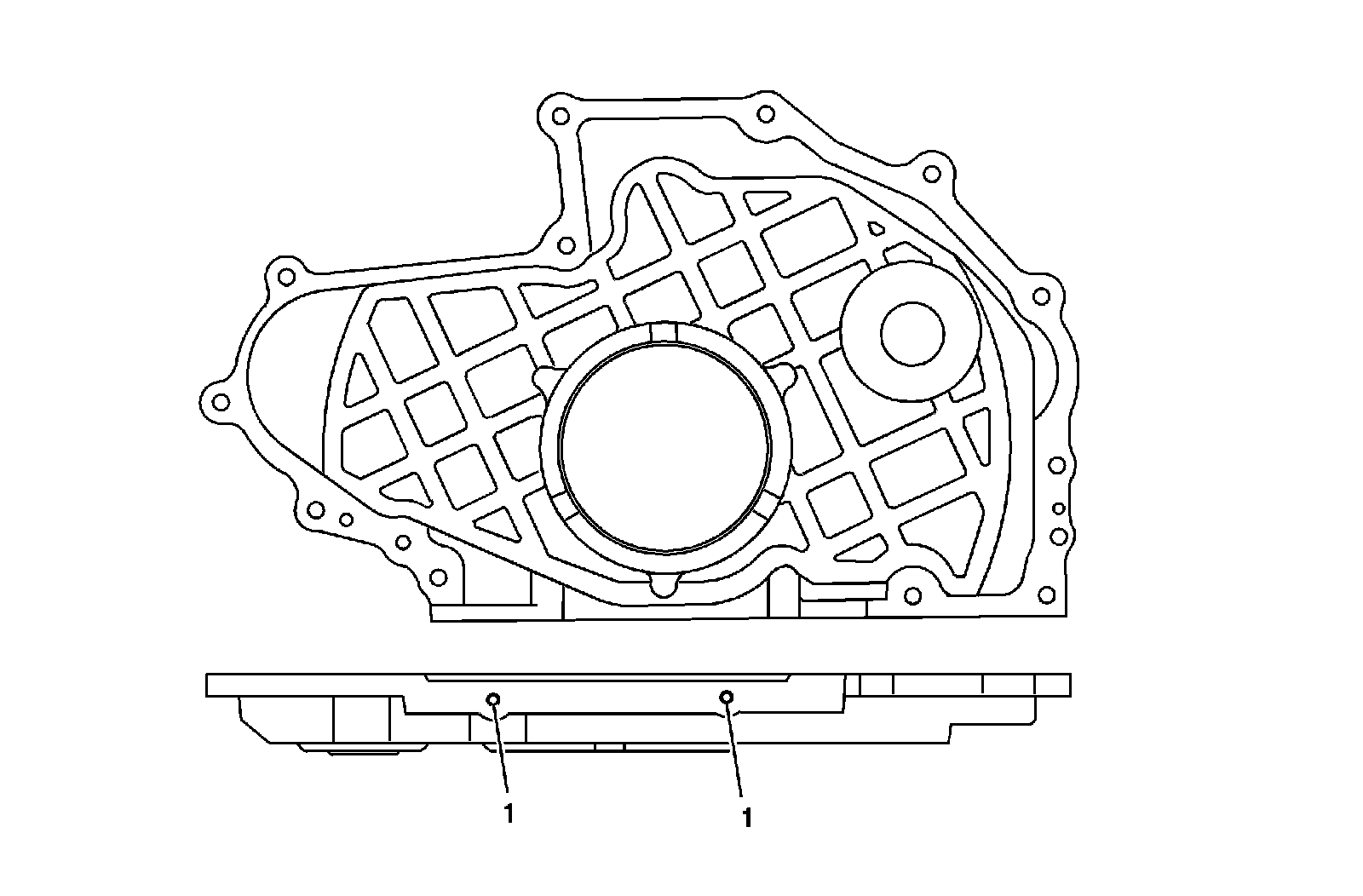

Crankshaft Rear Oil Seal Housing:




Crankshaft Rear Oil Seal Housing:
