Electronic Brake Control Module



Antilock Brake System Connector End Views

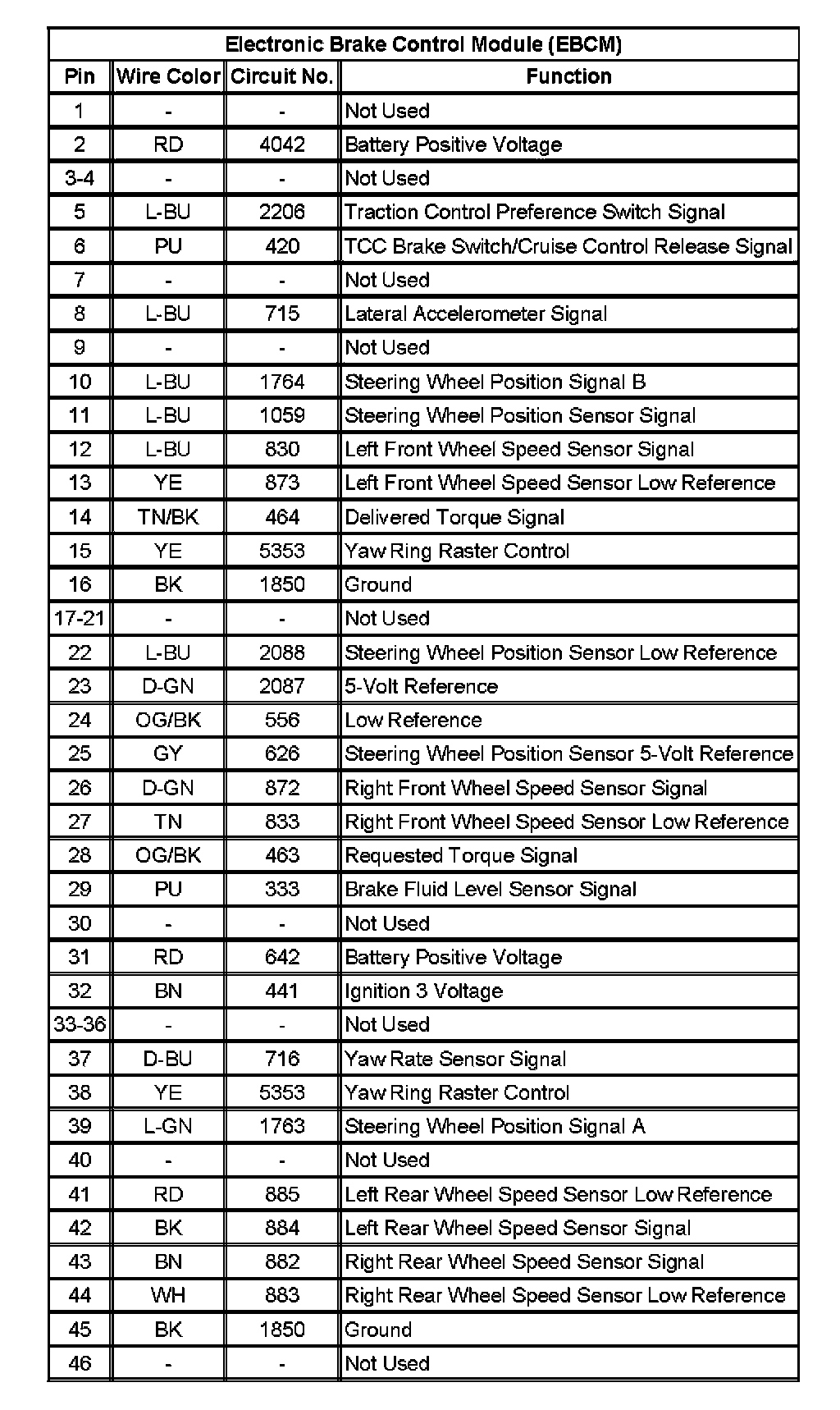

Electronic Brake Control Module (EBCM):

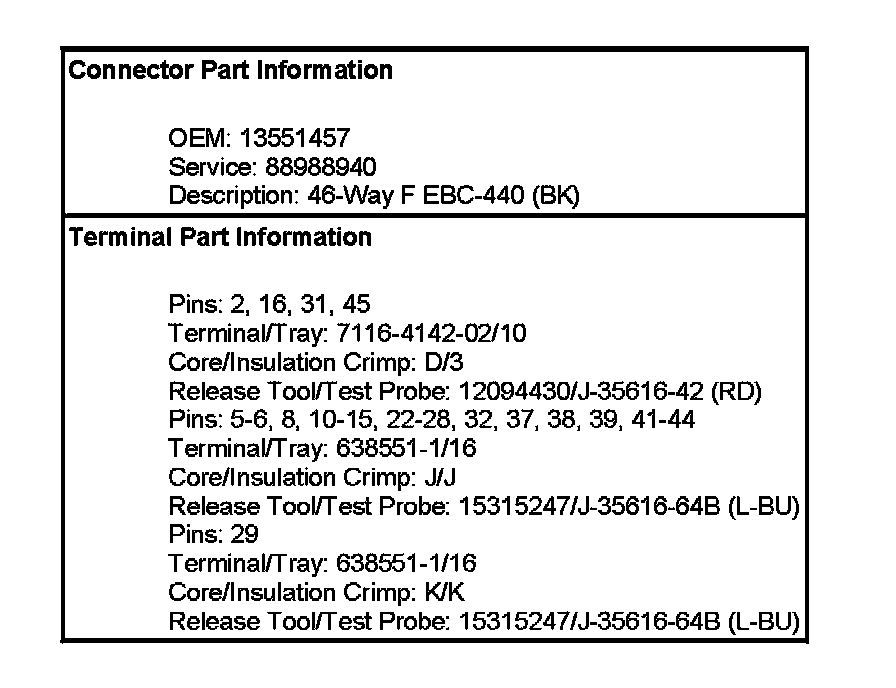

Electronic Brake Control Module (EBCM):
