Front Passenger Door Module

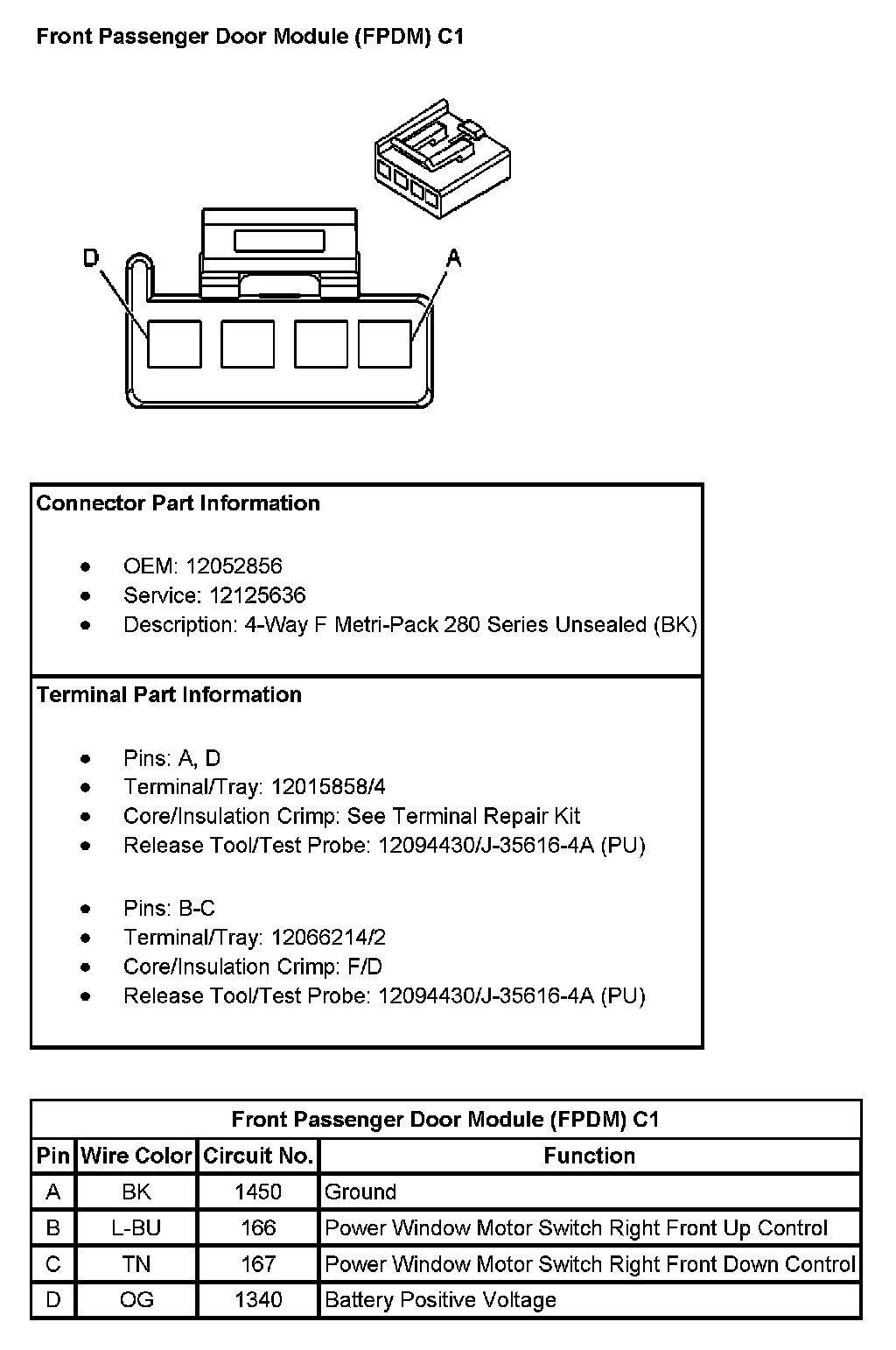

Front Passenger Door Module (FPDM) C1:

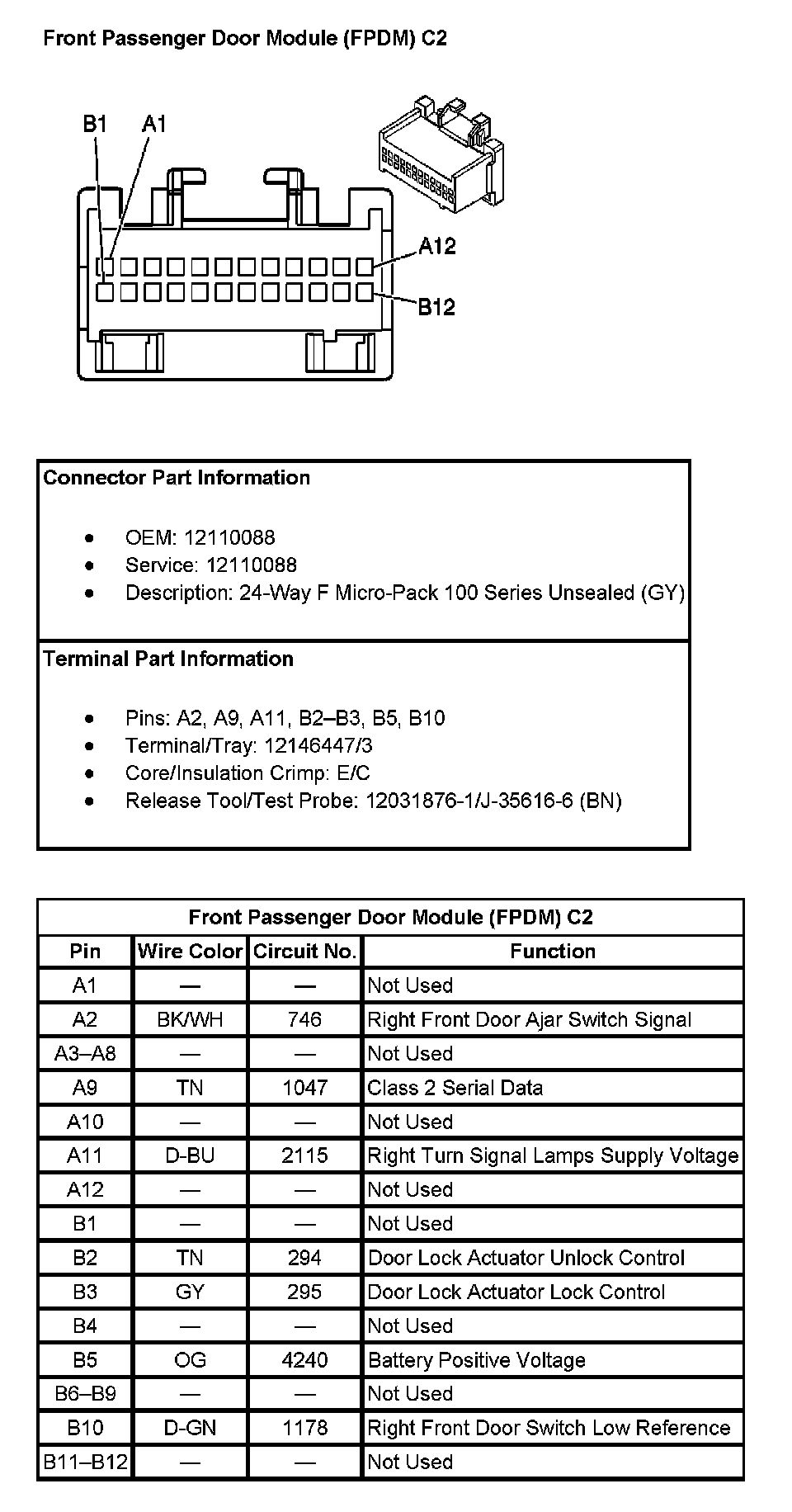

Front Passenger Door Module (FPDM) C2:

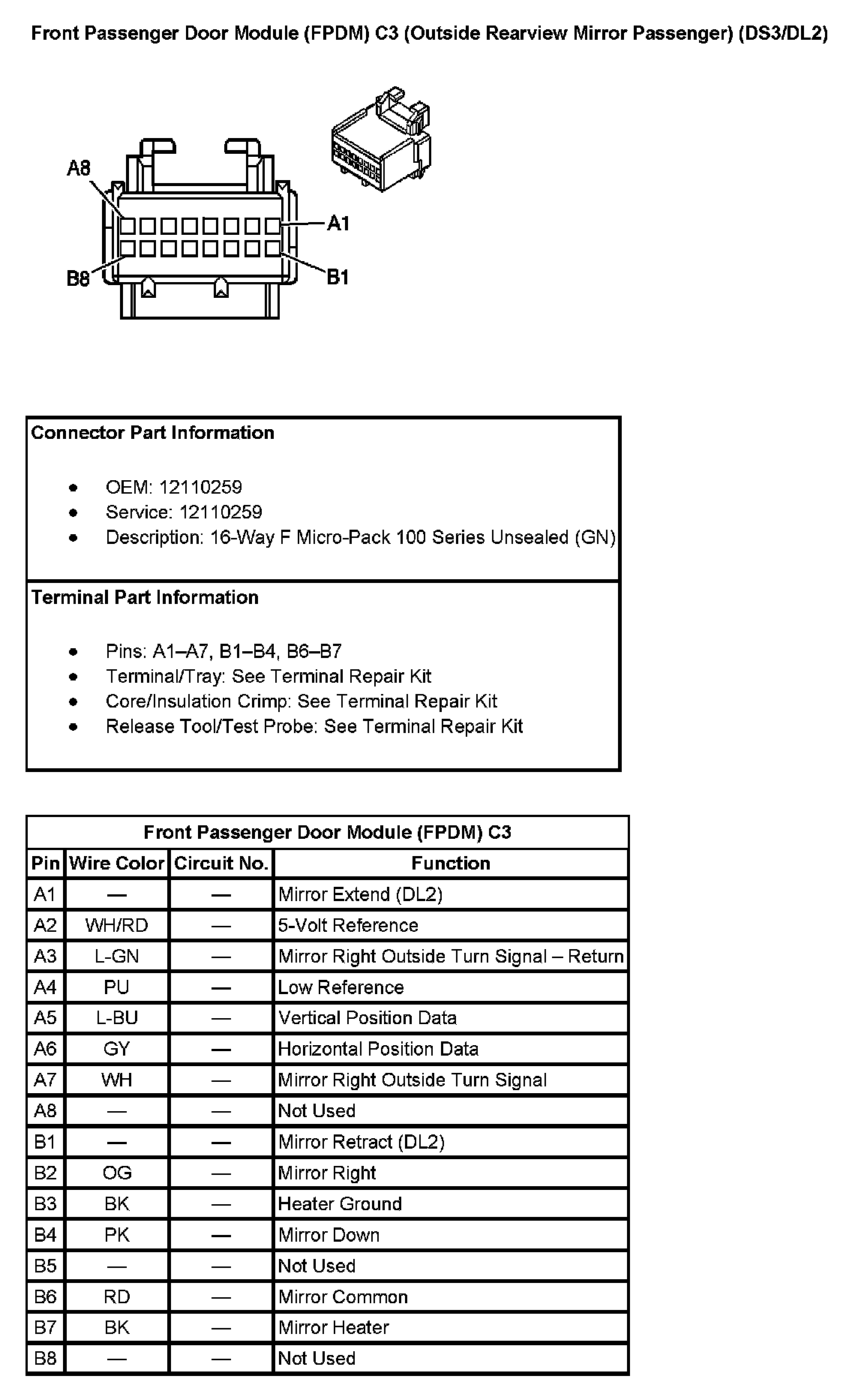

Front Passenger Door Module (FPDM) C3 (Outside Rearview Mirror Passenger) (DS3/DL2):
