Memory Seat Module - Driver C4

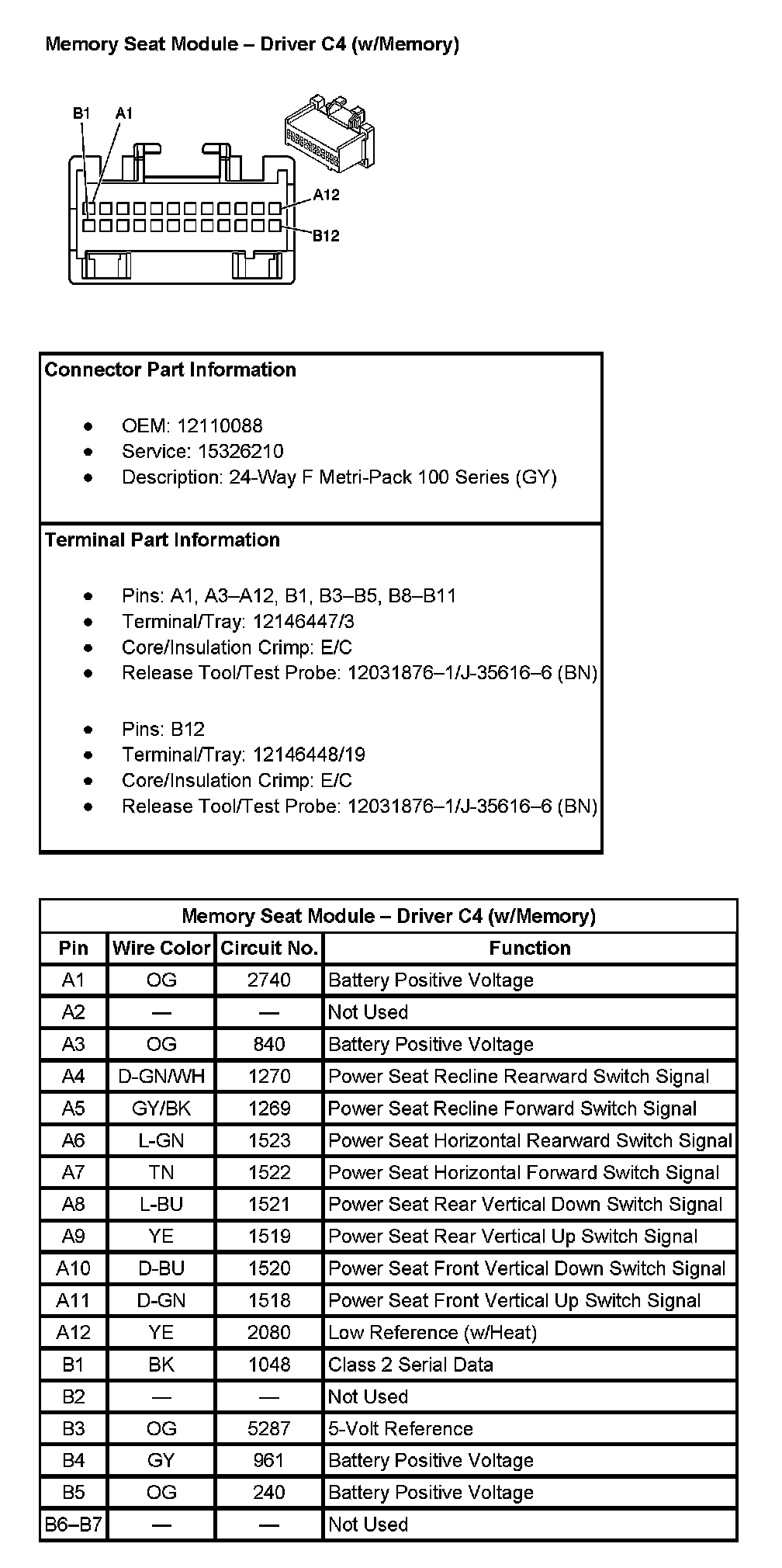

Memory Seat Module - Driver C4 (w/Memory):

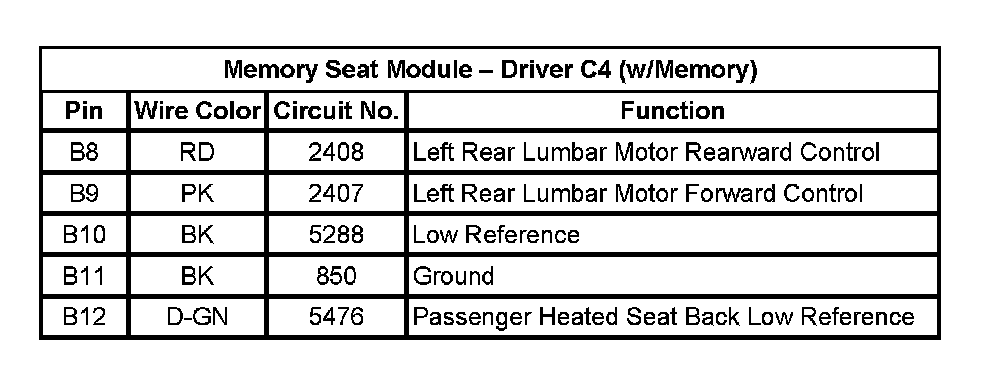

Memory Seat Module - Driver C4 (w/Memory):
