Control Module HVAC: Locations

HVAC Component Views

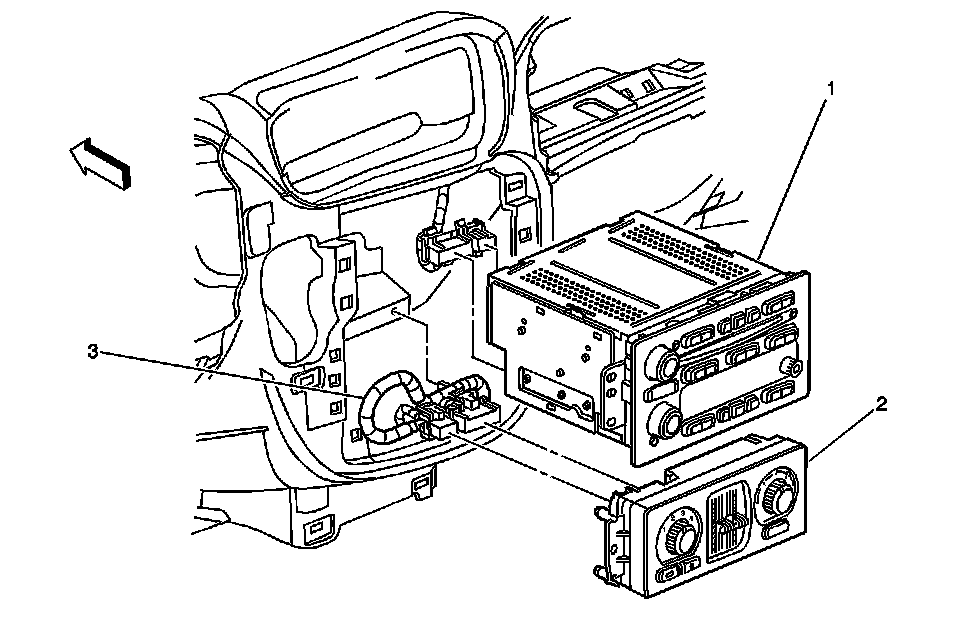

Instrument Panel, Center




1 - Radio
2 - HVAC Control Module
3 - I/P Harness

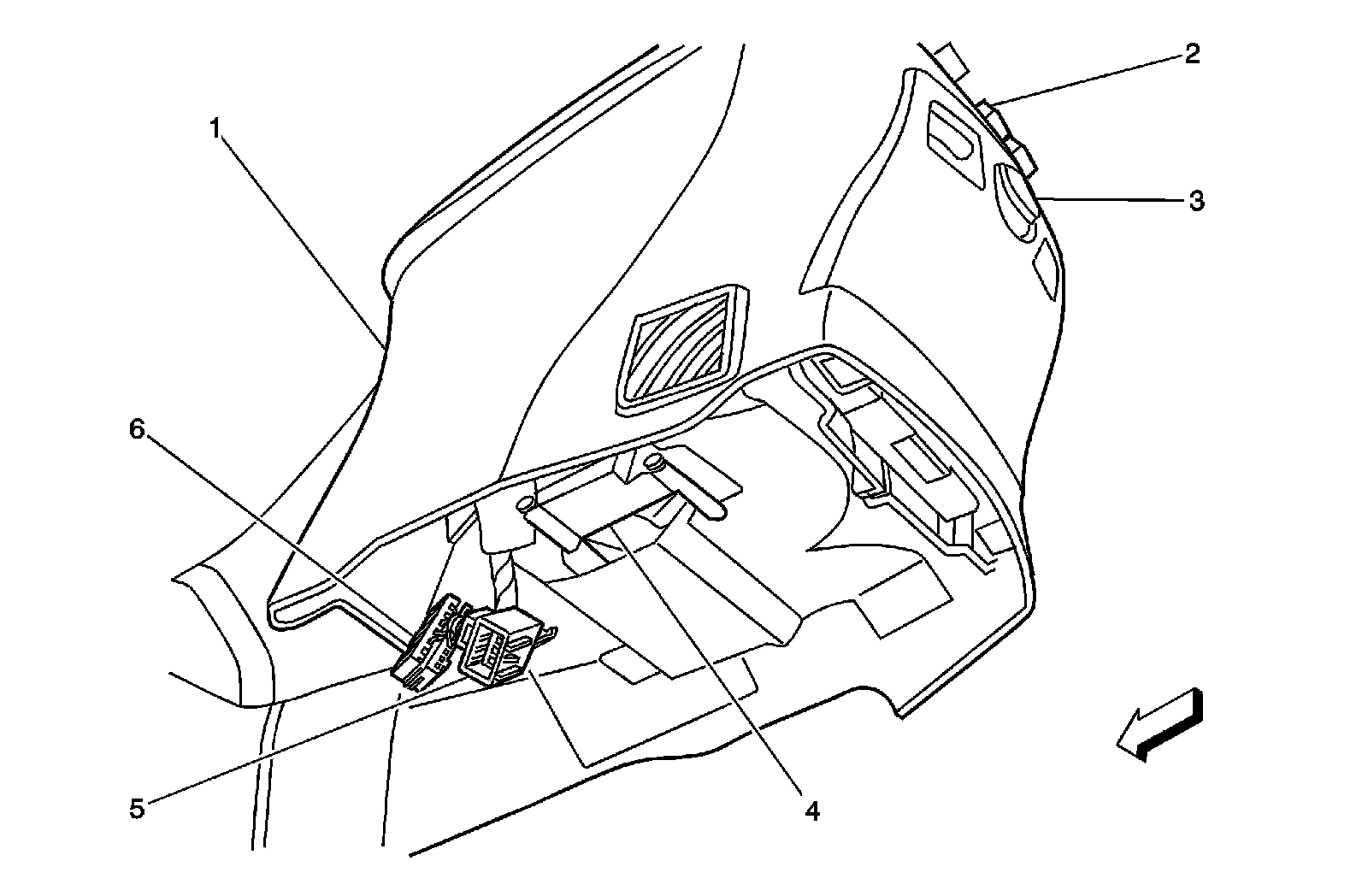

Lower Console




1 - Lower Console
2 - HVAC Control Module - Auxiliary
3 - Auxiliary Power Outlet - Console
4 - Console Mode Actuator - Auxiliary
5 - C309
6 - C307
