Scan Tool Data List

Scan Tool Data List (4.2L)

Use the scan tool data list under the following conditions:

- The Diagnostic System Check - Vehicle is complete.
- The on-board diagnostics are functioning properly.
- No DTCs are present.

The values below represent a typical display recorded from a properly functioning system.

Important: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.

Only the parameters listed below are used in this manual for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.

Scan tool values below were recorded under the following conditions:

- Engine at idle
- Upper radiator hose hot
- Closed throttle
- Transmission in PARK
- Closed Loop operation
- Accessories OFF
- Brake pedal not applied

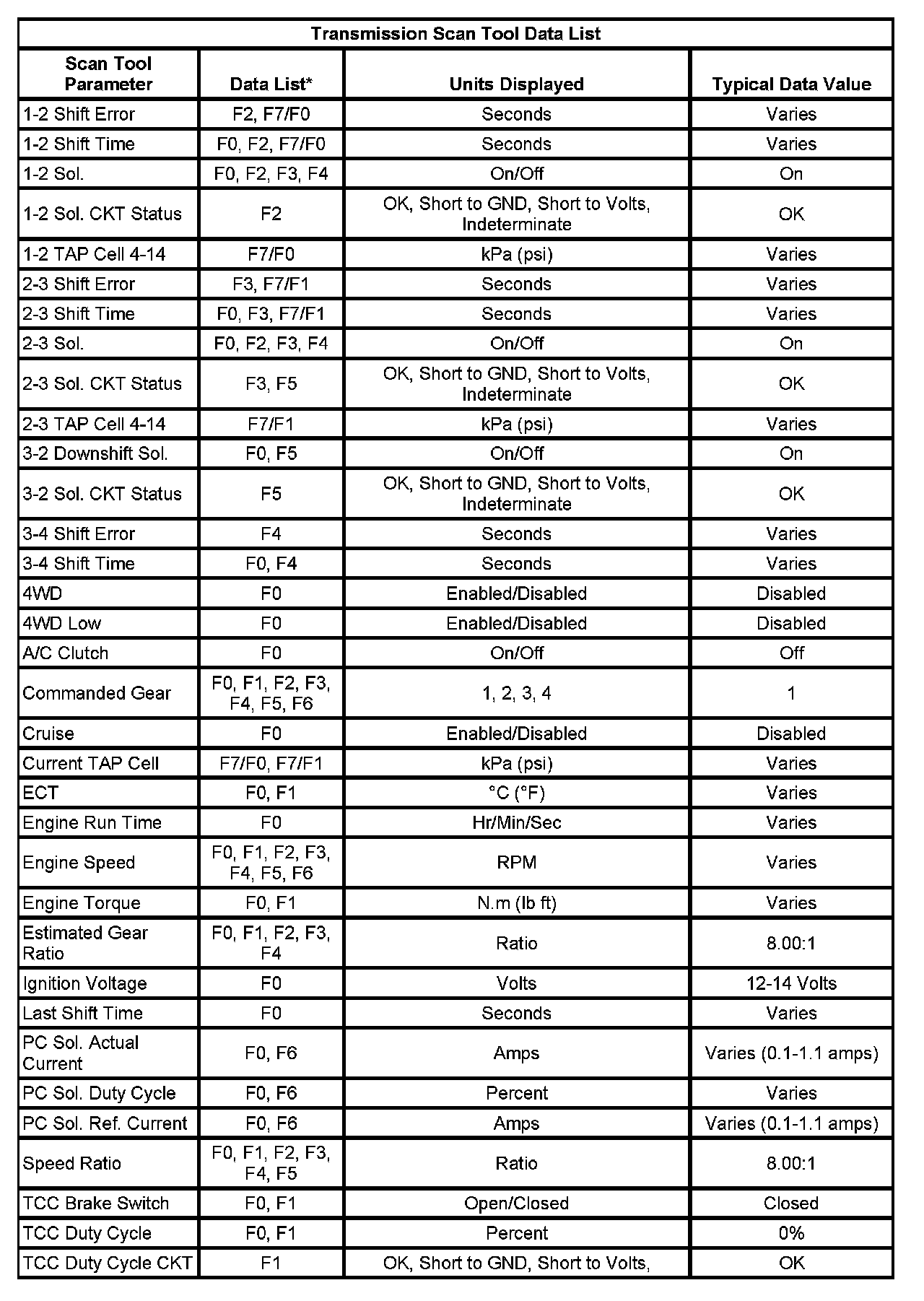

Transmission Scan Tool Data List:
