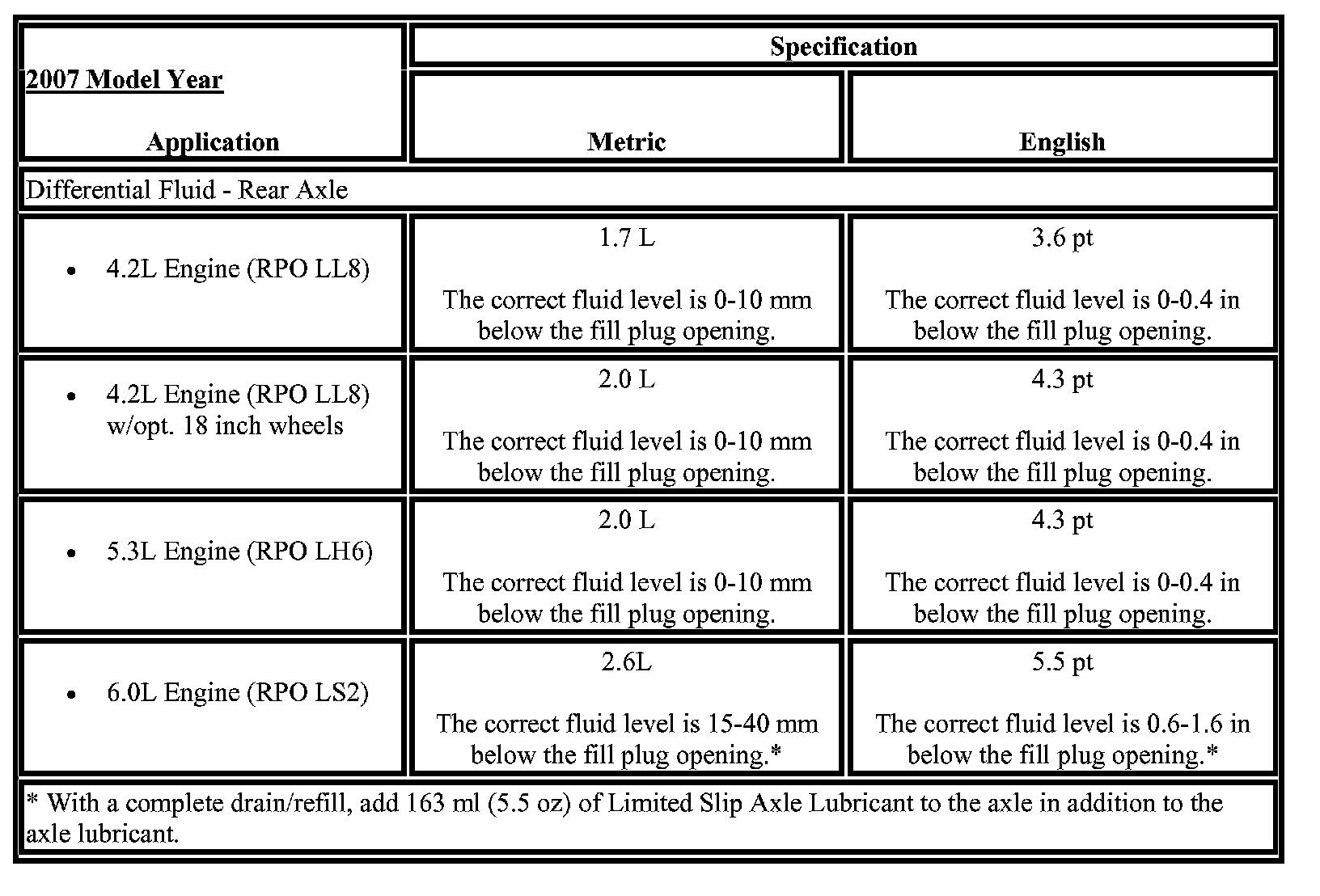

Rear Differential







This article has been updated by TSB Manual Update #06-04-20-003 dated 10/10/2006.
