Body Control System Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

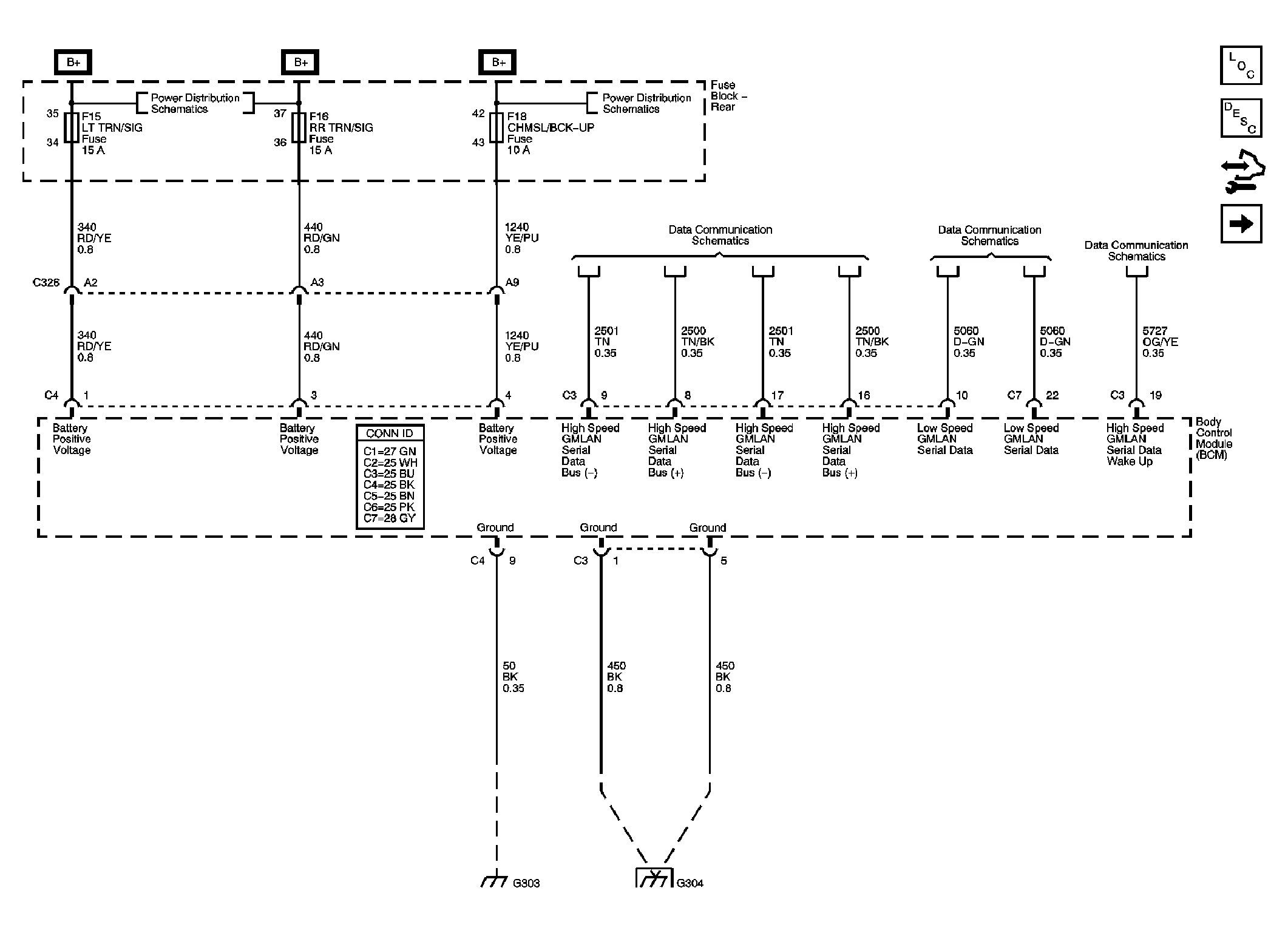

Fig 1: BCM Power, Ground and DLC Schematics

Courtesy of GENERAL MOTORS CORP.

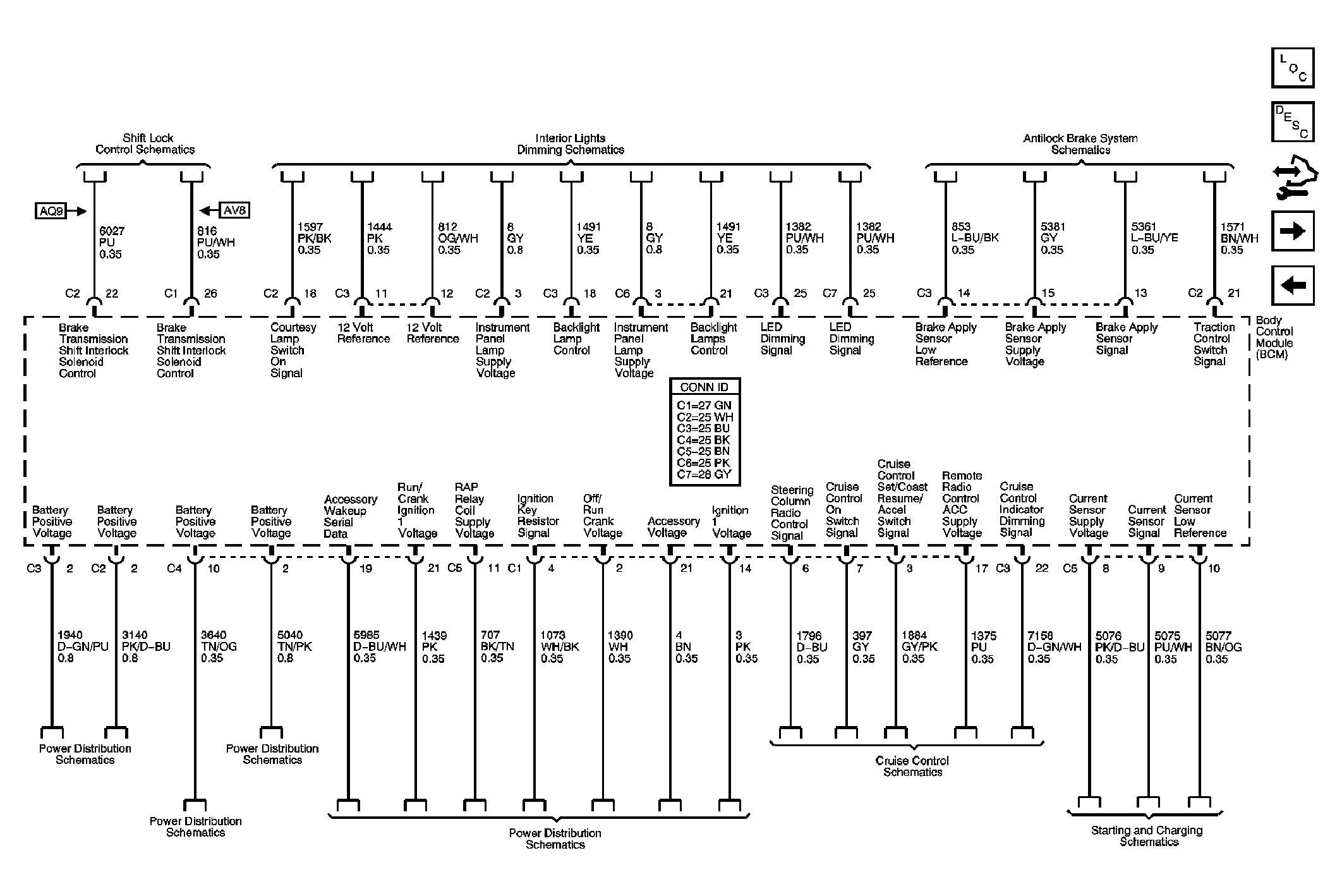

Fig 2: BCM Inputs and Outputs Schematics (1 of 4)

Courtesy of GENERAL MOTORS CORP.

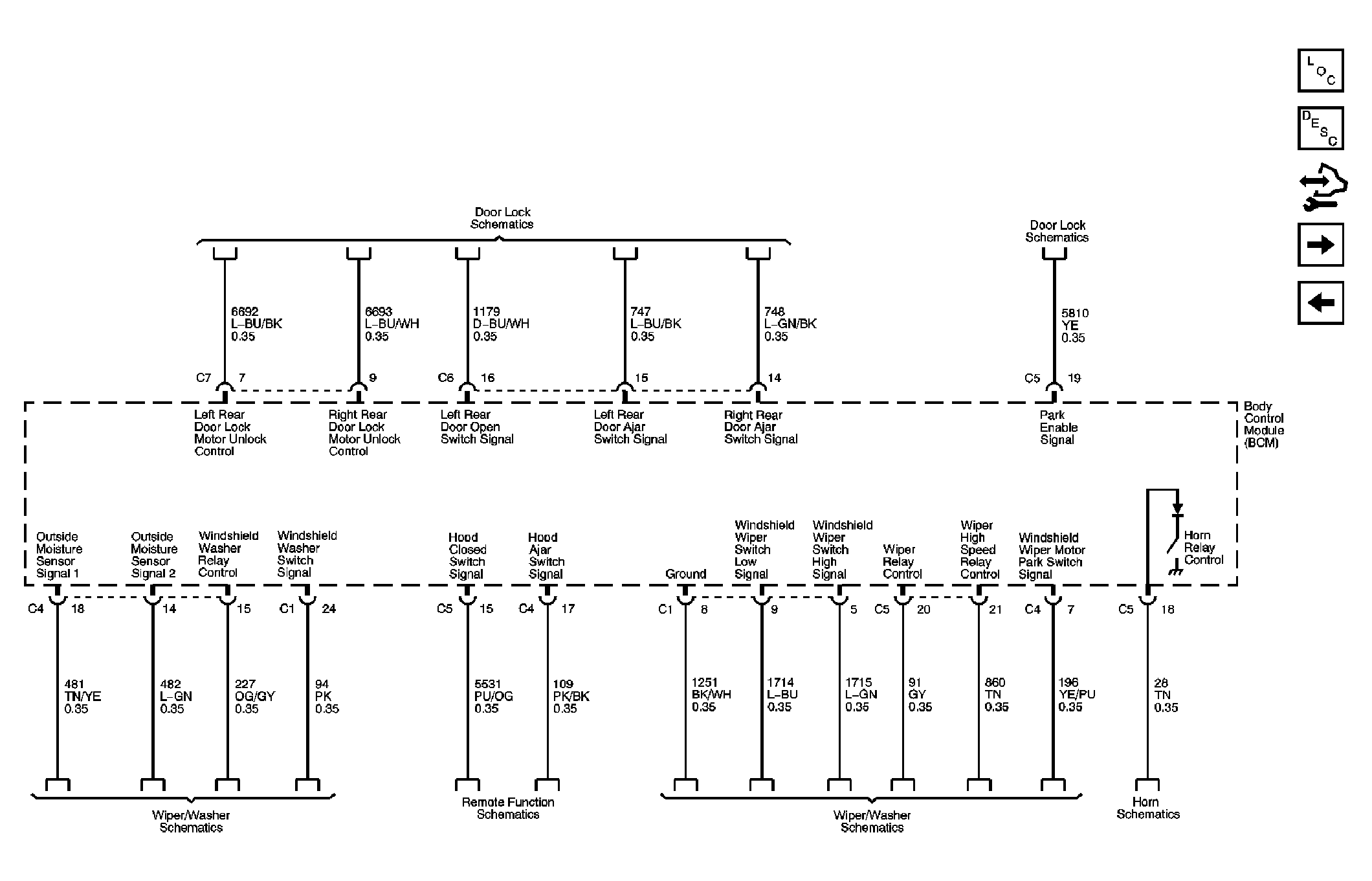

Fig 3: BCM Inputs and Outputs Schematics (2 of 4)

Courtesy of GENERAL MOTORS CORP.

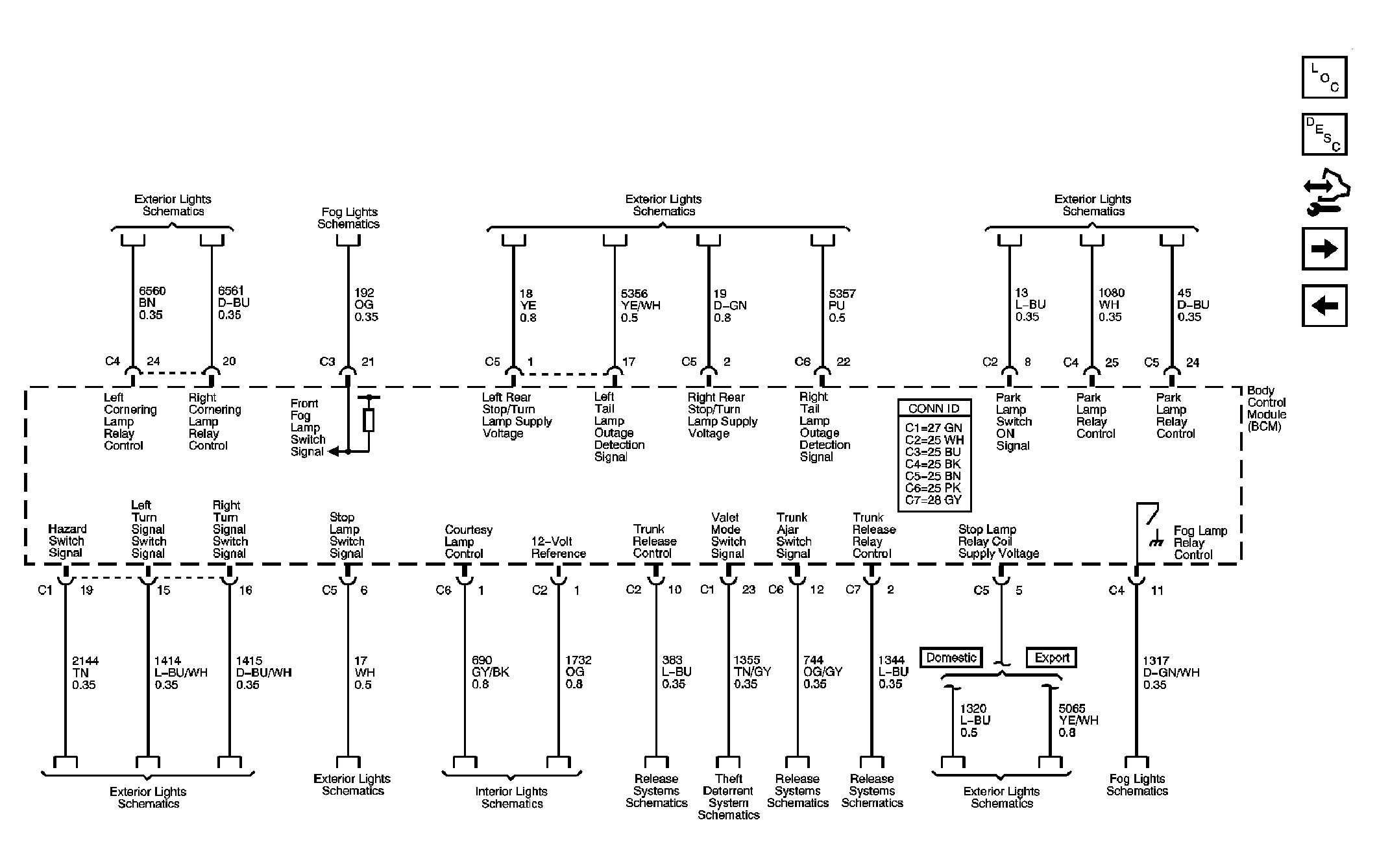

Fig 4: BCM Inputs and Outputs Schematics (3 of 4)

Courtesy of GENERAL MOTORS CORP.

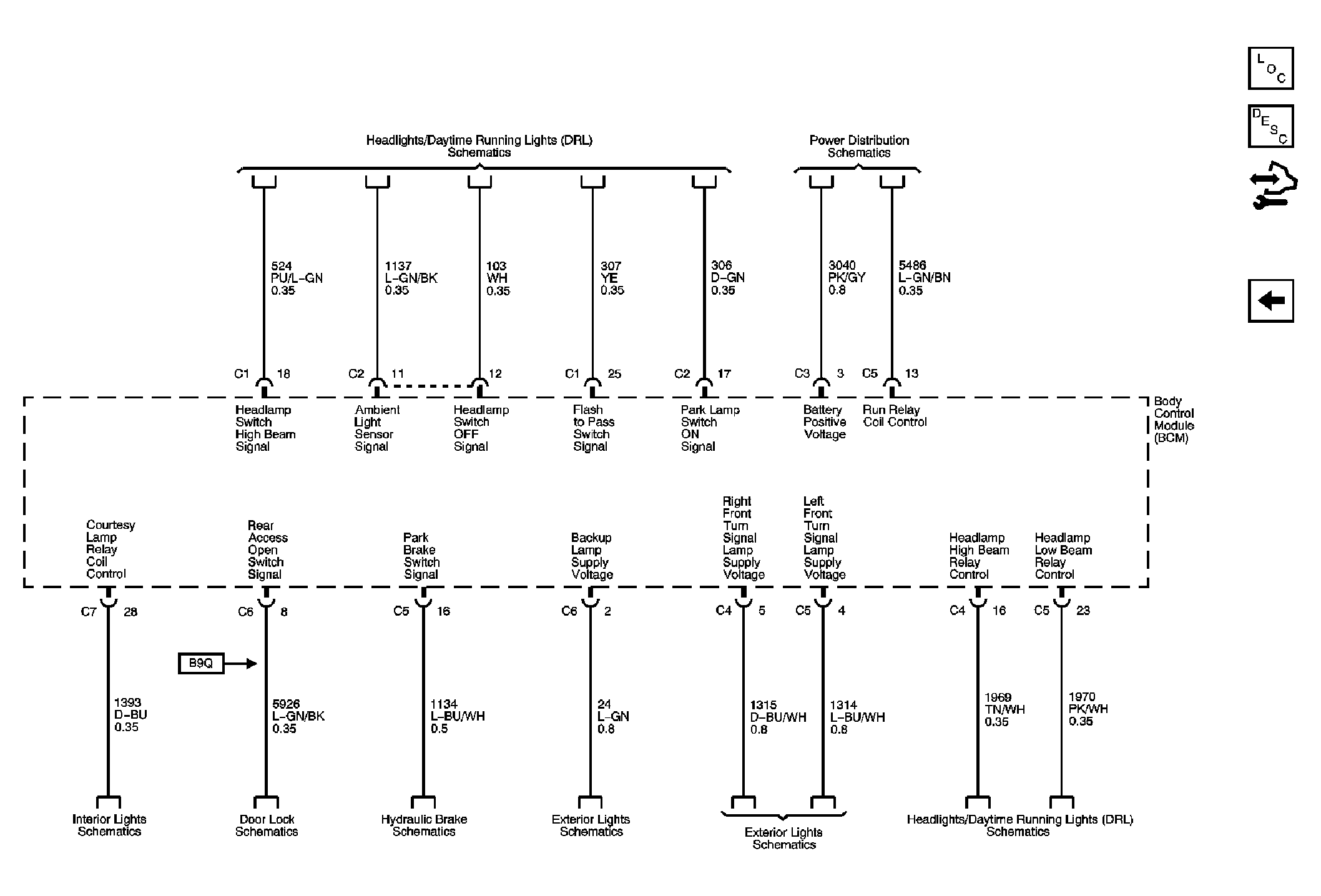

Fig 5: BCM Inputs and Outputs Schematics (4 of 4)

Courtesy of GENERAL MOTORS CORP.
