Servo Control Unit

Servo Control Unit

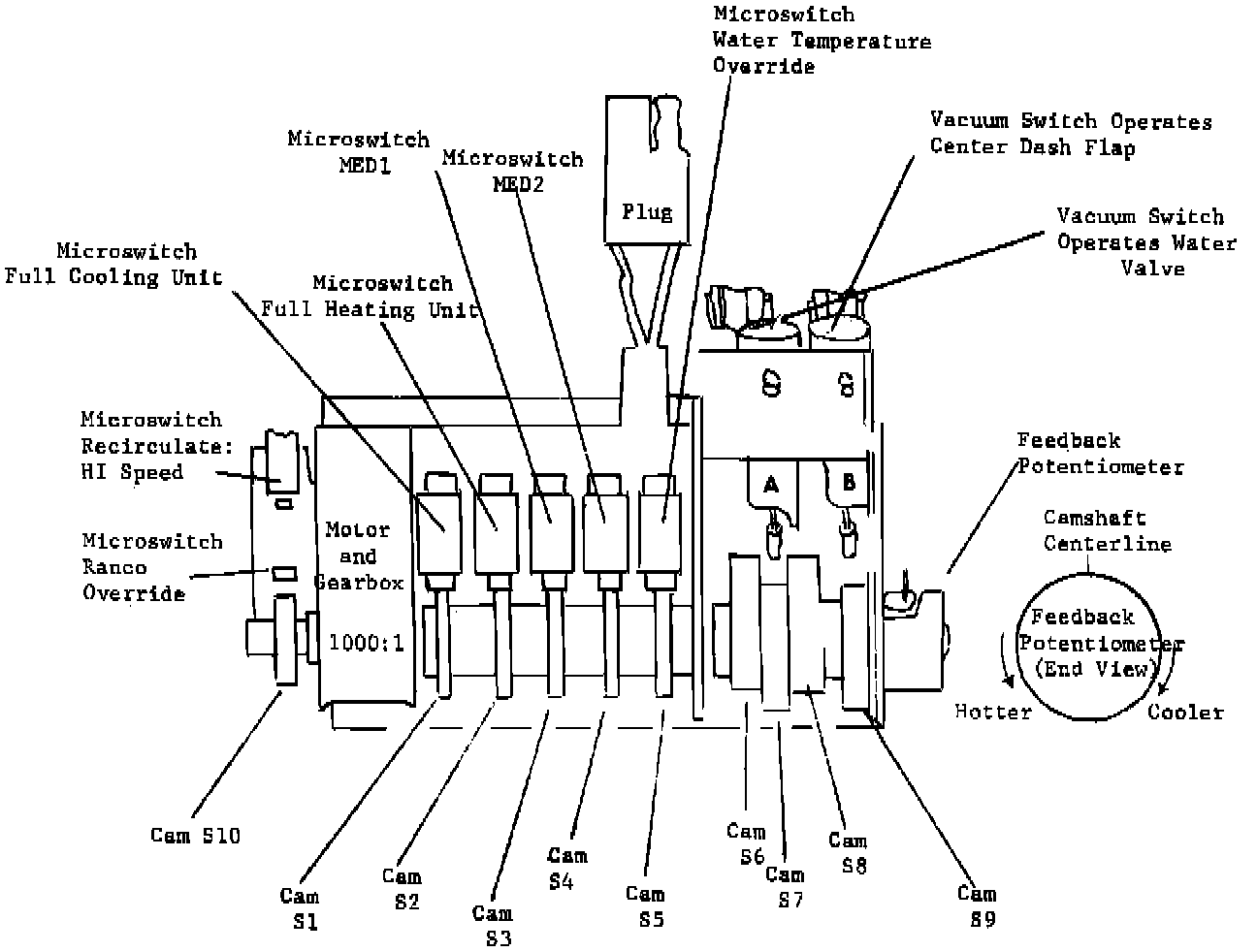

Servo Control Unit:




Servo Control Unit Operation:

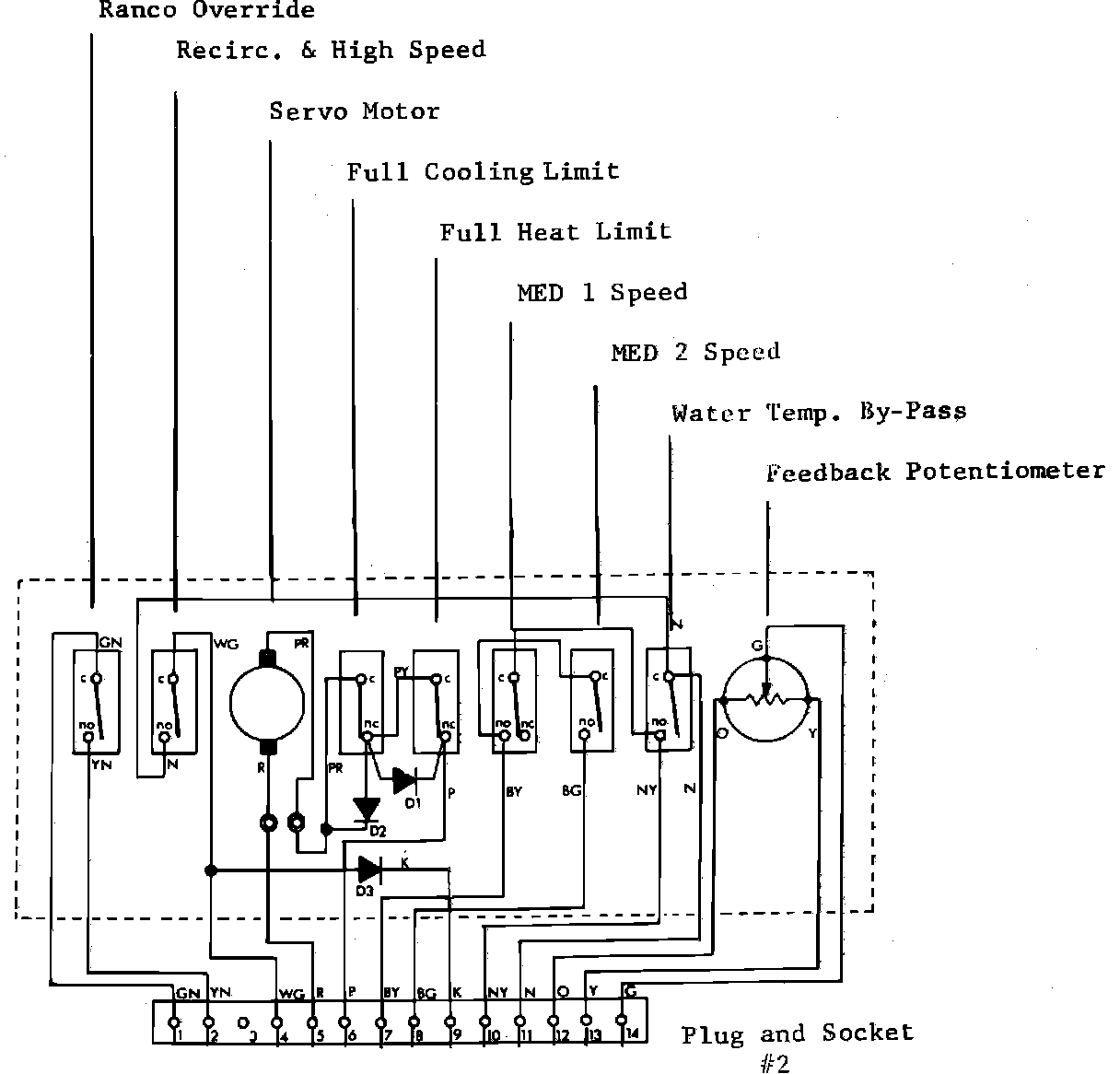

Servo Control Unit:





Testing: Check continuity and operation of microswitches.

Do not apply 12 volts to servo motor.
Feedback potentiometer - check continuity resistance.
