System Specifications

Jaguar 4.2L engines are numbered from the rear to front. Number 1 cylinder is next to the firewall.

General Data
Number of cylinders 6 (in line), #1 at rear of engine
Bore 92.07 mm (3.625 in)
Stroke 106 mm (4.173 in)
Cubic capacity 4235 cc (258 cu in)

General Data

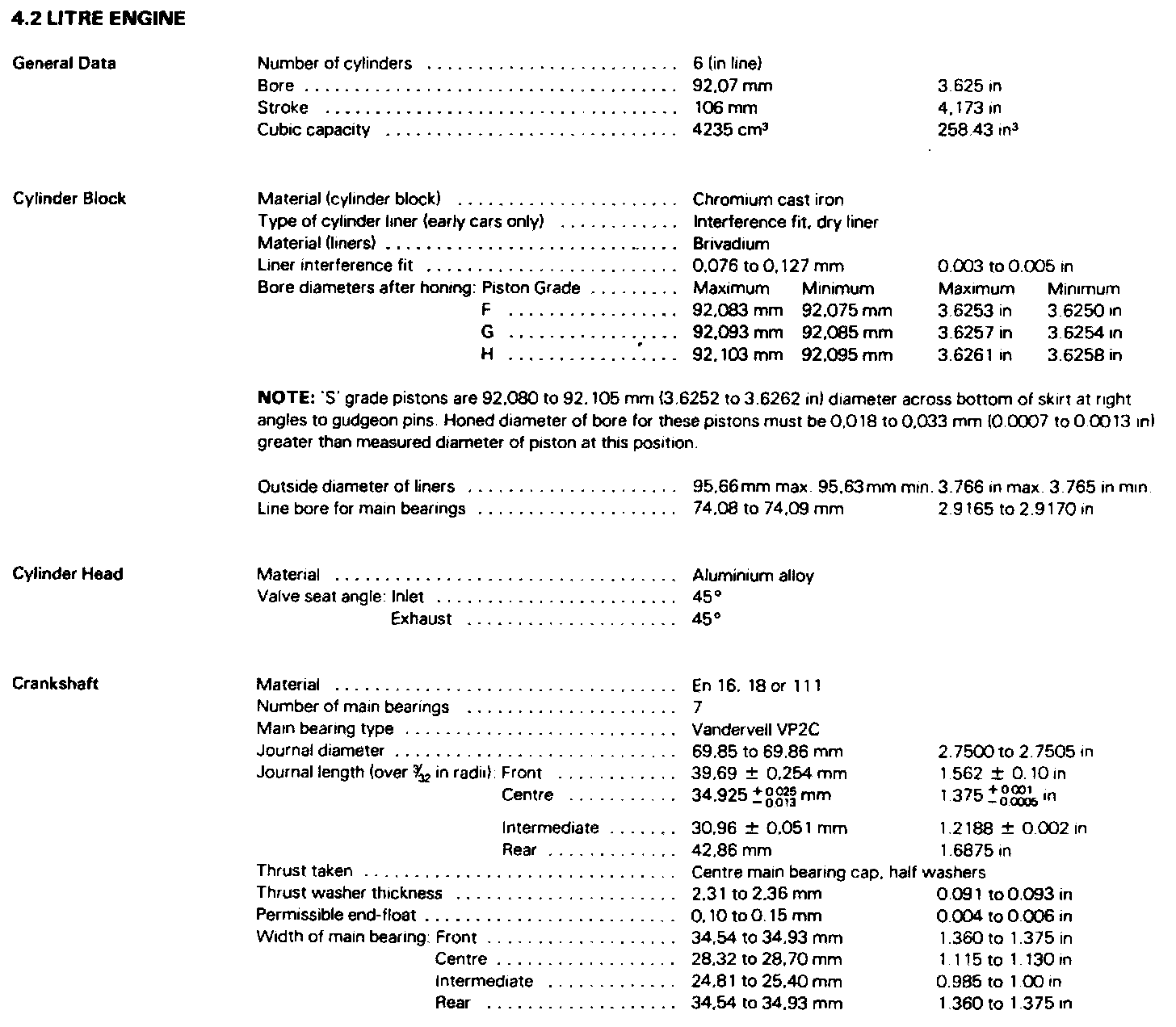

General Specifications:

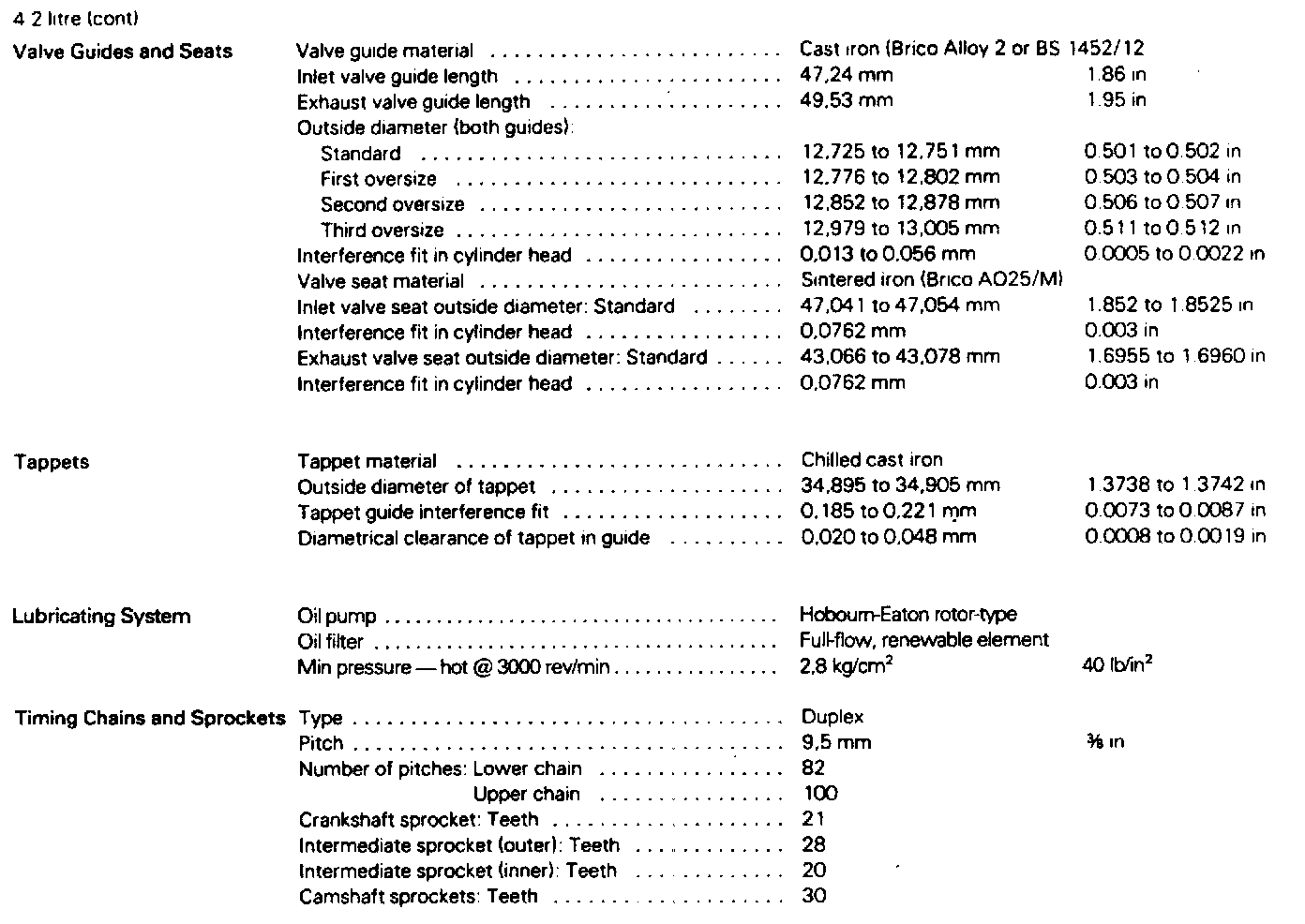

Specifications Continued:

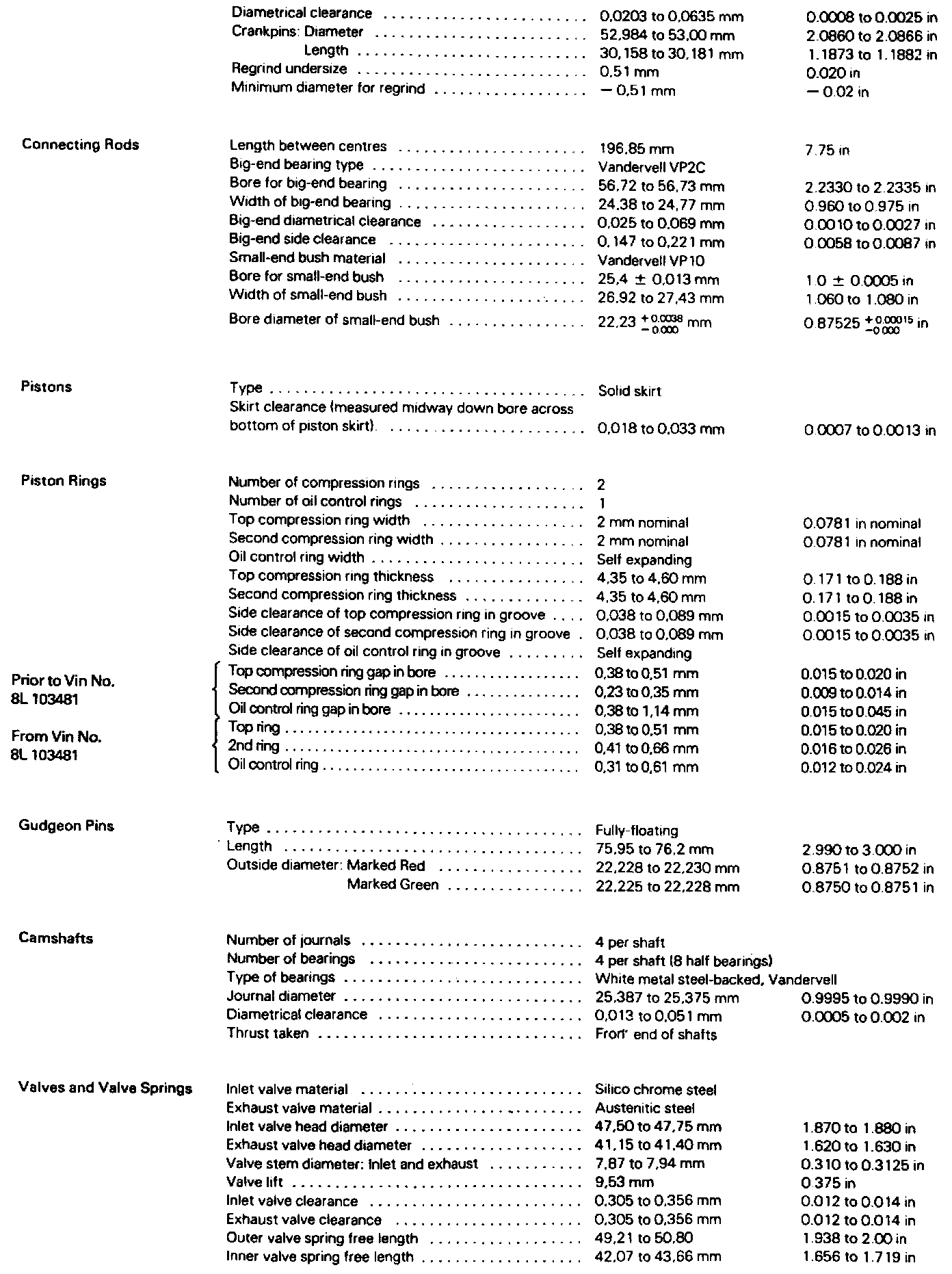

Specifications Continued:
