Ohms Measurments

35 Position ECU Plug:

For Terminal ID please refer to "Computers and Control Systems : Engine Control Module : Diagrams". Connector Views

CAUTION: When measuring ohms, disconnect the ECU from the harness plug and never turn the ignition key on. It is possible that failure to follow these steps will result in damage to the ECU.

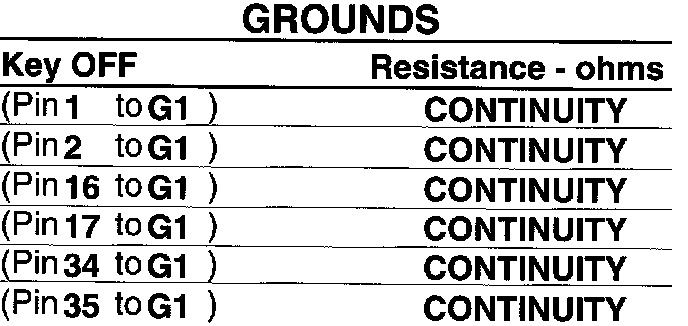

Grounds

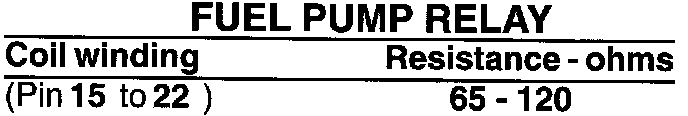

Fuel Pump Relay

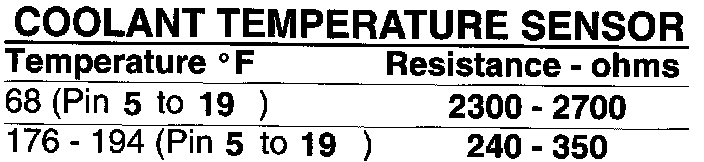

Coolant Temperature Sensor

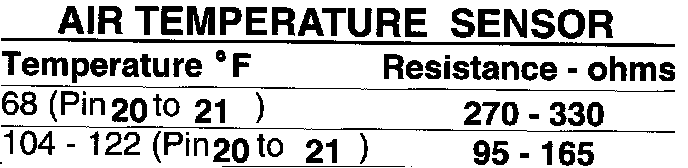

Air Temperature Sensor

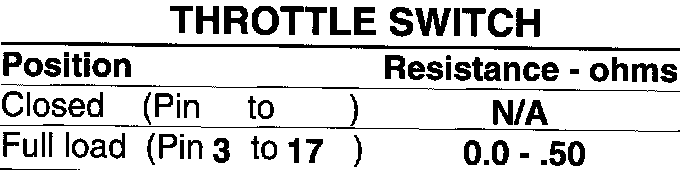

Throttle Switch

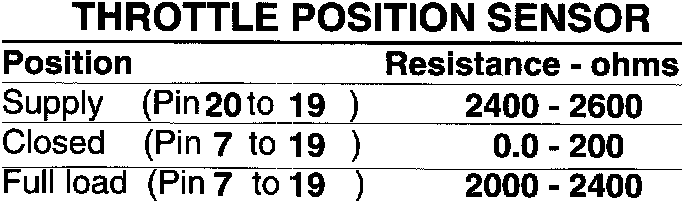

Throttle Position Sensor

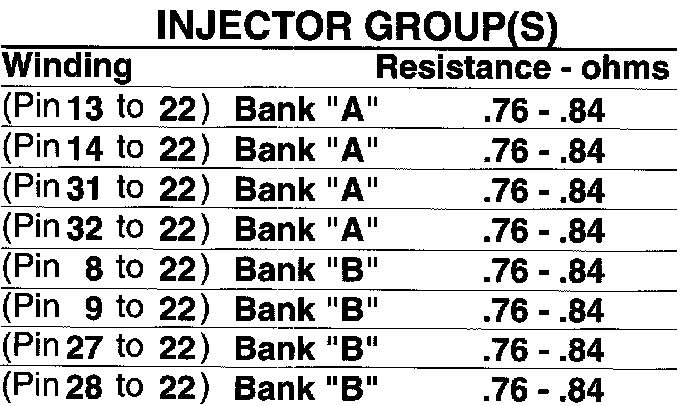

Injector Group(s)

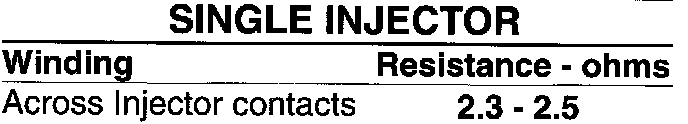

Single Injector

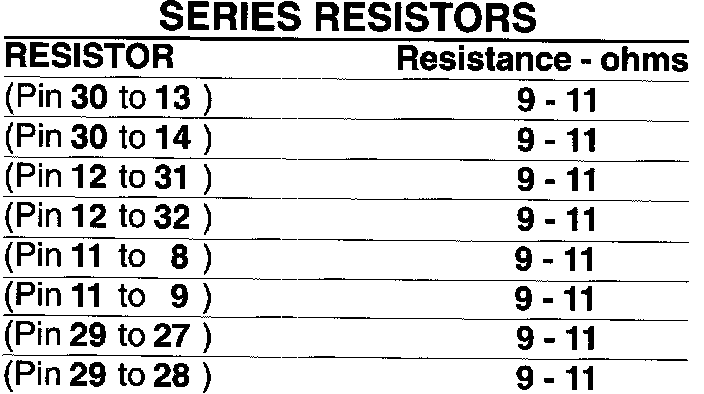

Series Resistors
