Keyless Entry Transmitter: Service and Repair

Battery Replacement:

^ Carefully depress the spring tags through the openings in the case and remove the battery compartment cover from the handset body.

^ Remove the discharged battery cells.

^ Install three new battery cells, ensuring correct polarity is maintained.

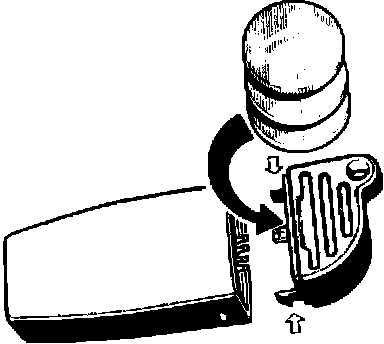

FIGURE 2:

^ Install handset battery cover onto the handset body (ensure spring tags click into position).

NOTE: To prevent complete battery discharge, batteries should be replaced (Fig. 2) at the 15,000 mile/12 month service interval. Use genuine Jaguar replacement batteries only, (JLM 1727).
