Transmission Decoder Module

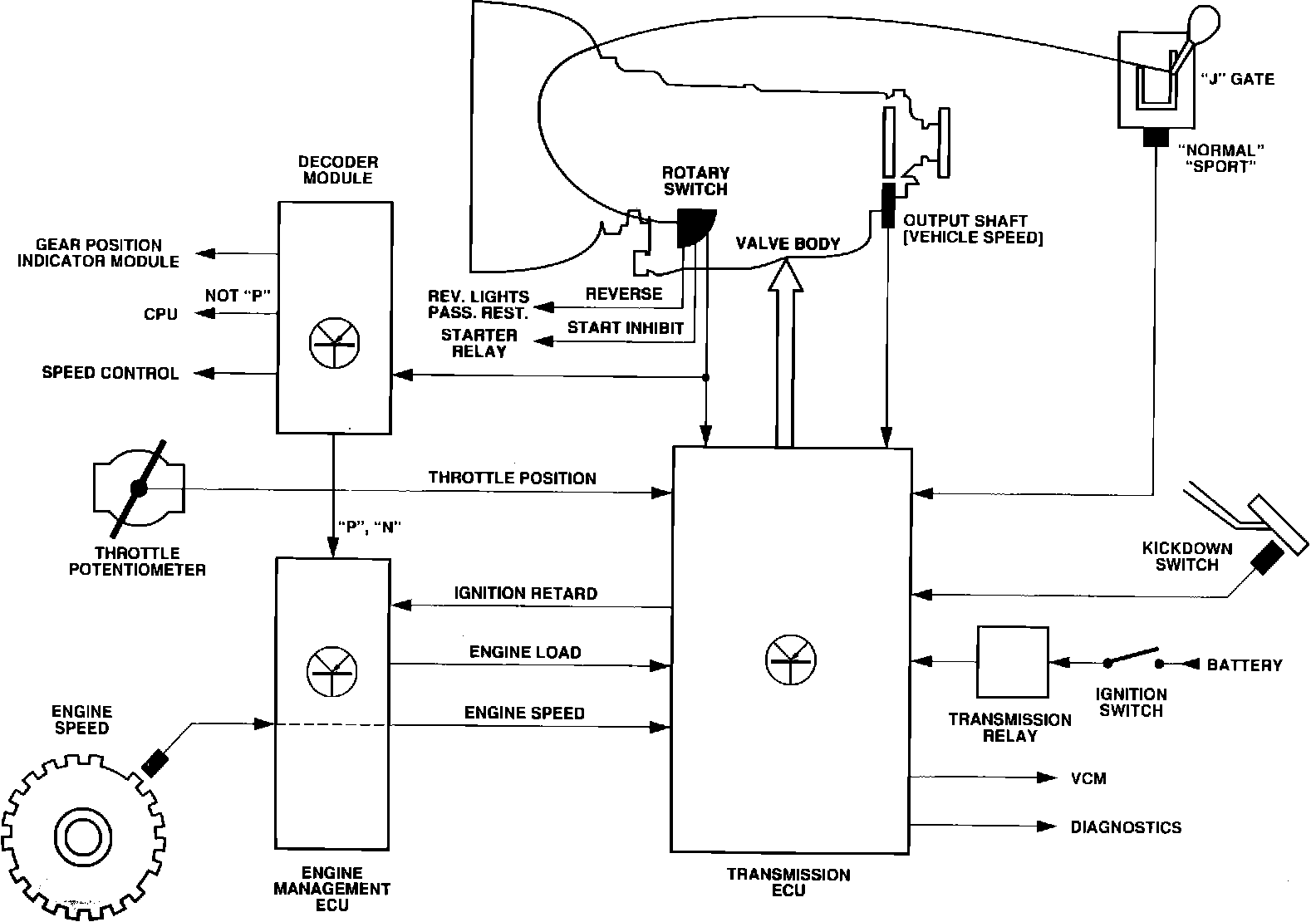

Transmission Control System:

PURPOSE
Decoder module informs the engine management ECM when either "P" or "N" is selected. The input is used by the ECM to make adjustments required to compensate for engine load changes that occur when "P" or "N" are engaged or disengaged.

OPERATION
A cable operated rotary switch (neutral safety switch) converts gear selections into electrical signals transmitted to transmission ECM and decoder module. Module informs engine management ECM when either "P" or "N" is selected.

LOCATION
Mounted on side of transmission.
