Removal & Installation
- Remove fuel tank. See FUEL TANK

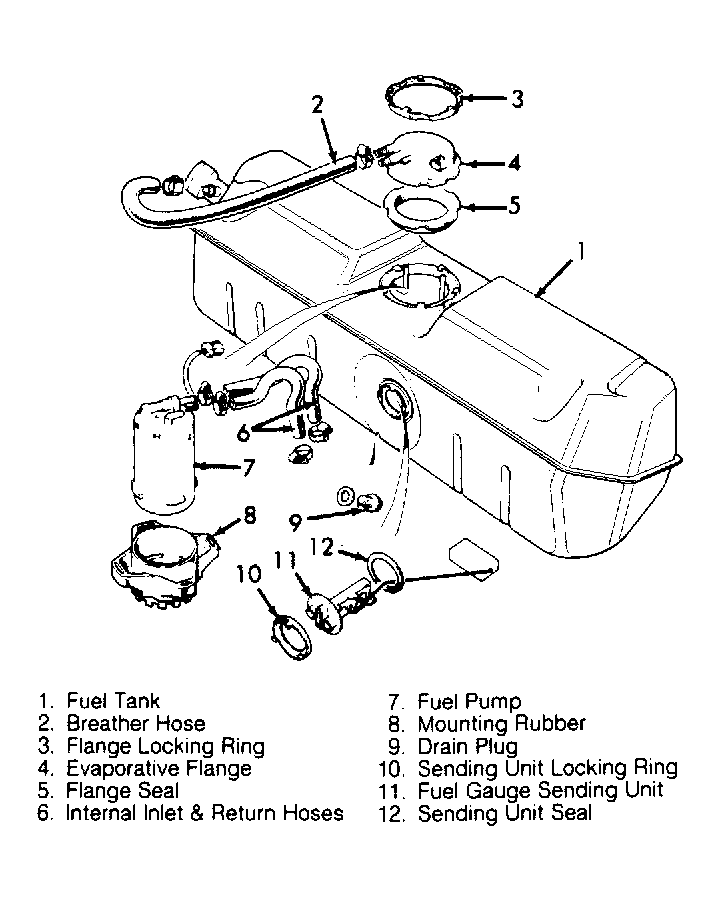

. Release clamp, and disconnect evaporative breather hose. See Fig 1
. Using Lock Ring Wrench (JD-174), remove locking ring from evaporative flange.
- Reposition flange to access fuel pump wiring harness connector, and disconnect connector. Disconnect fuel hoses from fuel pump. Remove tie wrap from pump mounting rubber.
- Using a twisting motion, lift and remove fuel pump. To install, reverse removal procedure. Ensure pump is fully seated in mounting bracket inside fuel tank.
