Crankshaft Position Sensor: Service and Repair

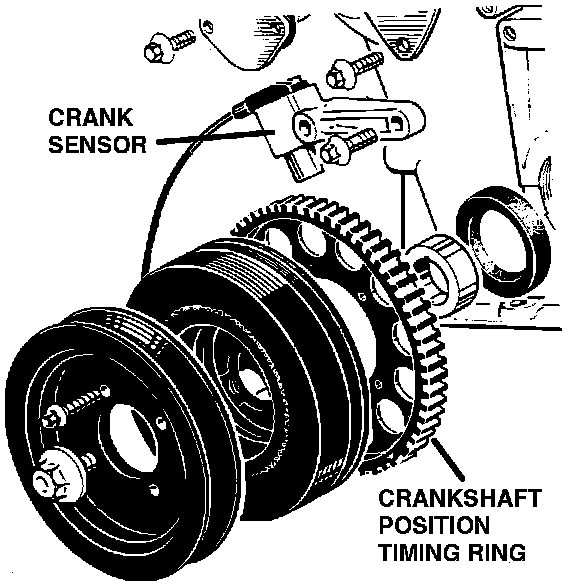

Crank Sensor & Toothed Gear:

- Disconnect the battery ground cable.
- Remove the clips securing the CKPS cable.
- Disconnect the multi-pin cable connector.
- Remove the bolts securing the CKPS housing and remove the housing complete with the CKPS.
- With a suitable allen key remove the bolt securing the CKPS and remove the CKPS from its housing.
- Fitting a new CKPS is the reversal of the removal procedure ensuring the connector is secure, clean and tight.
- Reconnect the battery ground cable.
