Ignition Control Module: Locations

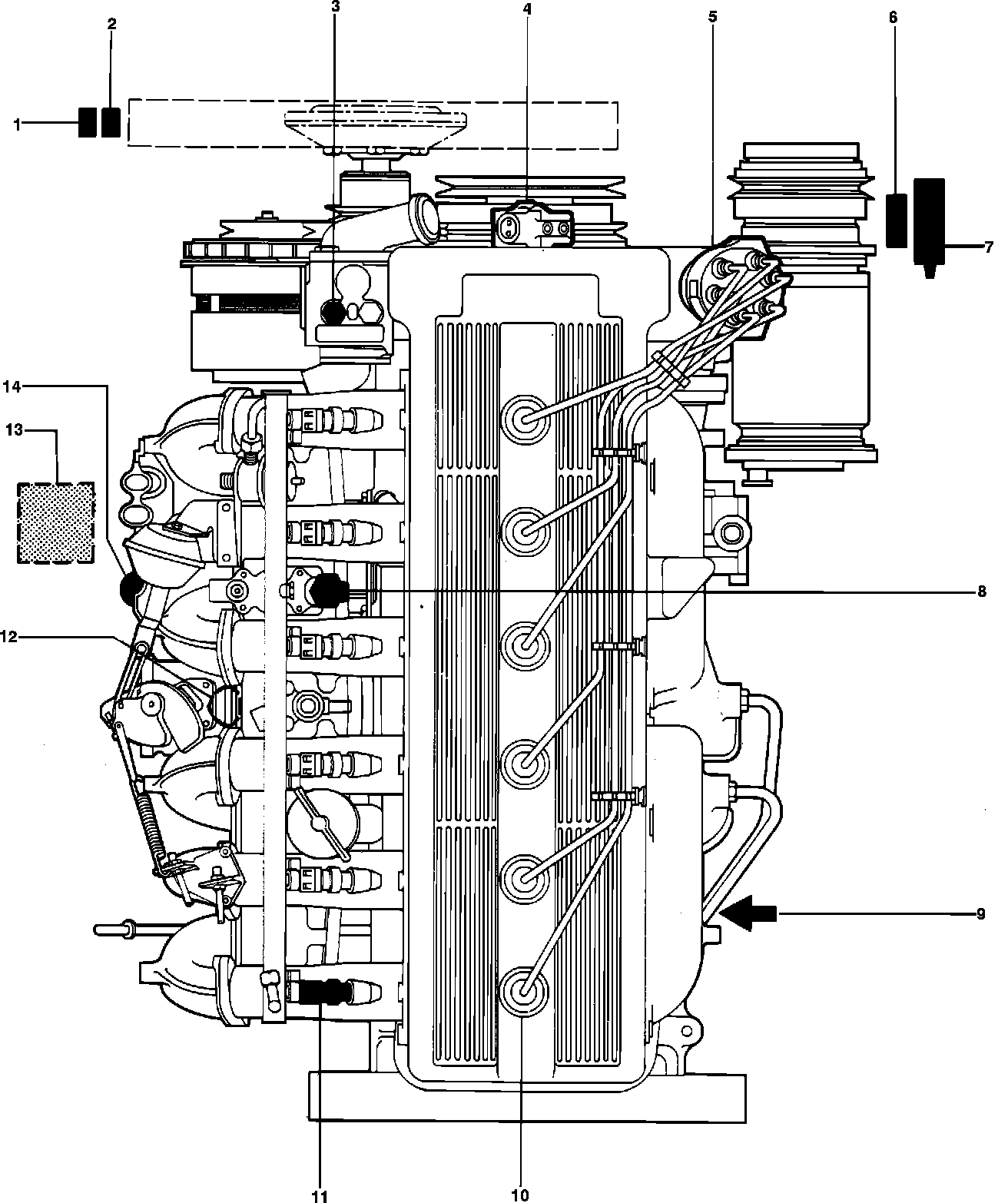

Component Locations, Engine Compartment:

1. Air pump relay
2. Breather pipe heater relay
3. Coolant temperature sensor
4. Crankshaft sensor
5. Distributor
6. ignition power module
7. Ignition coil
8. Idle speed control valve
9. Oxygen (Lambda) sensor
10. Spark plugs
11. Fuel injectors
12. Throttle potentiometer
13. Air mass meter
14. Supplementary air valve
