Control Units

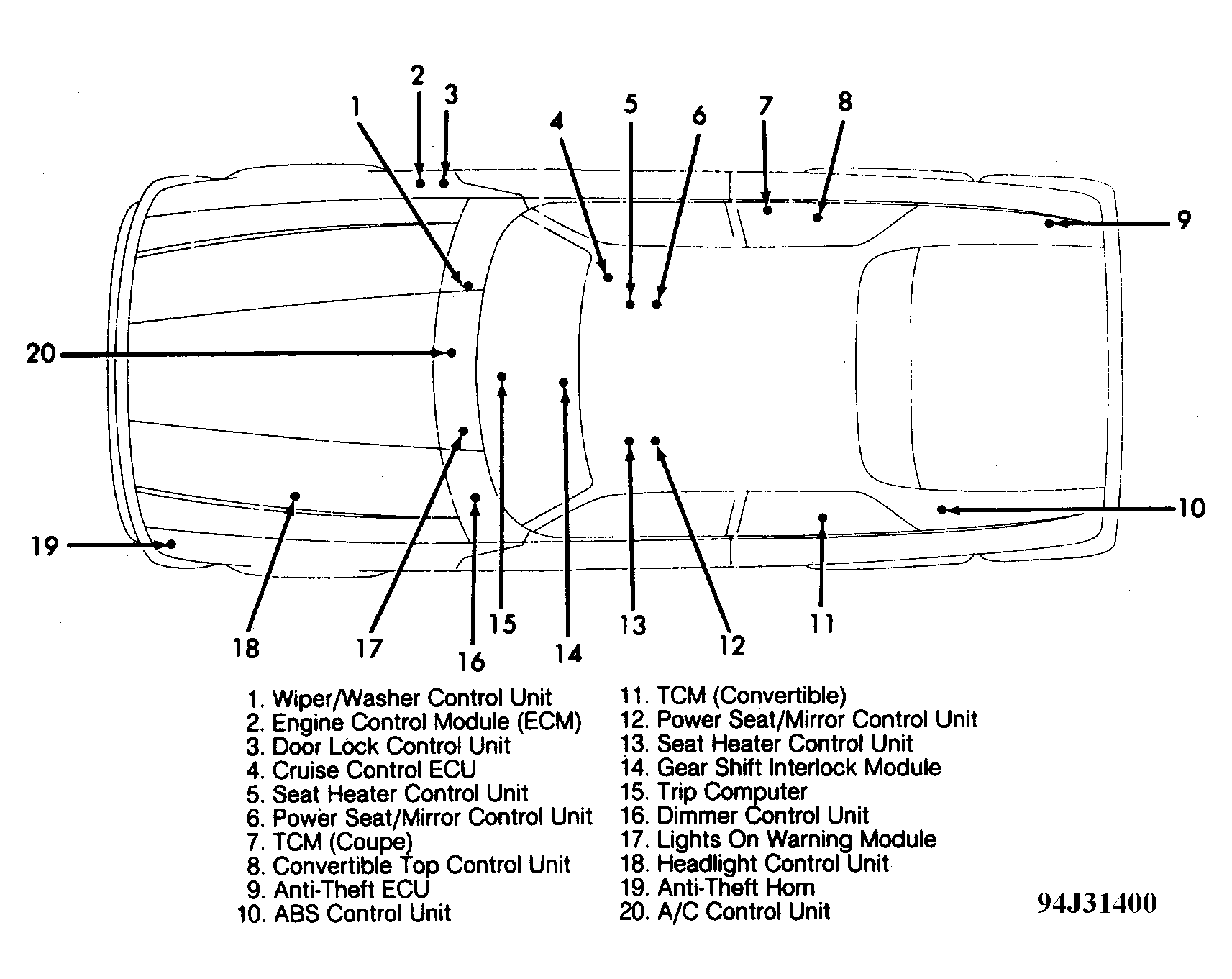

CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Behind trim panel, on left side of luggage compartment. See Figure . | |
| A/C Control Unit | On right side of A/C unit, behind right side of dash. See Figure & Figure . | |
| Anti-Slosh Module (Fuel Level) | On left rear wheelwell arch, in luggage compartment. See Figure . | |
| Anti-Theft ECU | Behind right taillight, in luggage compartment. See Figure . | |
| Bulb Failure Modules | ||
| Brake/Stoplights | Behind left side of dash. See Figure . | |
| Front Lights | Behind right side of dash. See Figure . | |
| Rear Lights | Behind right and left taillight assembly. See Figure . | |
| Convertible Top Control Unit | Under rear deck lid. See Figure & Figure . | |
| Cruise Control ECU | Under right front footwell. See Figure . | |
| Dimmer Control Unit | Behind left side of dash. See Figure & Figure . | |
| Door Lock Control Unit | Behind right kick panel. See Figure . | |
| Engine Control Module (ECM) | Under passenger's side footwell panel. See Figure . | |
| Gear Shift Interlock Module | On front of base of shift lever assembly. See Figure . | |
| Headlight Control Unit | On left inner fender panel, near relays. See Figure & Figure . | |
| Interior Light Delay Module | Behind right side of dash. See Figure . | |
| Lights On Warning Module | Under left side of dash. See Figure . | |
| Low Coolant Module | Behind right side of dash. See Figure . | |
| Power Seat/Mirror Control Unit | Under footwell cover, in front of left and right front seats. See Figure . | |
| Seat Belt Logic Module | Under right side of dash. | |
| Seat Heater Control Unit | Under left and right front seats. See Figure . | |
| Transmission Control Module (TCM) | ||
| Convertible | Inside left of convertible top deck lid. See Figure . | |
| Coupe | Behind right quarterpanel, near door post. See Figure . | |
| Wiper/Washer Control Unit | Behind right side of dash. See Figure & Figure . | |
