Ignition System

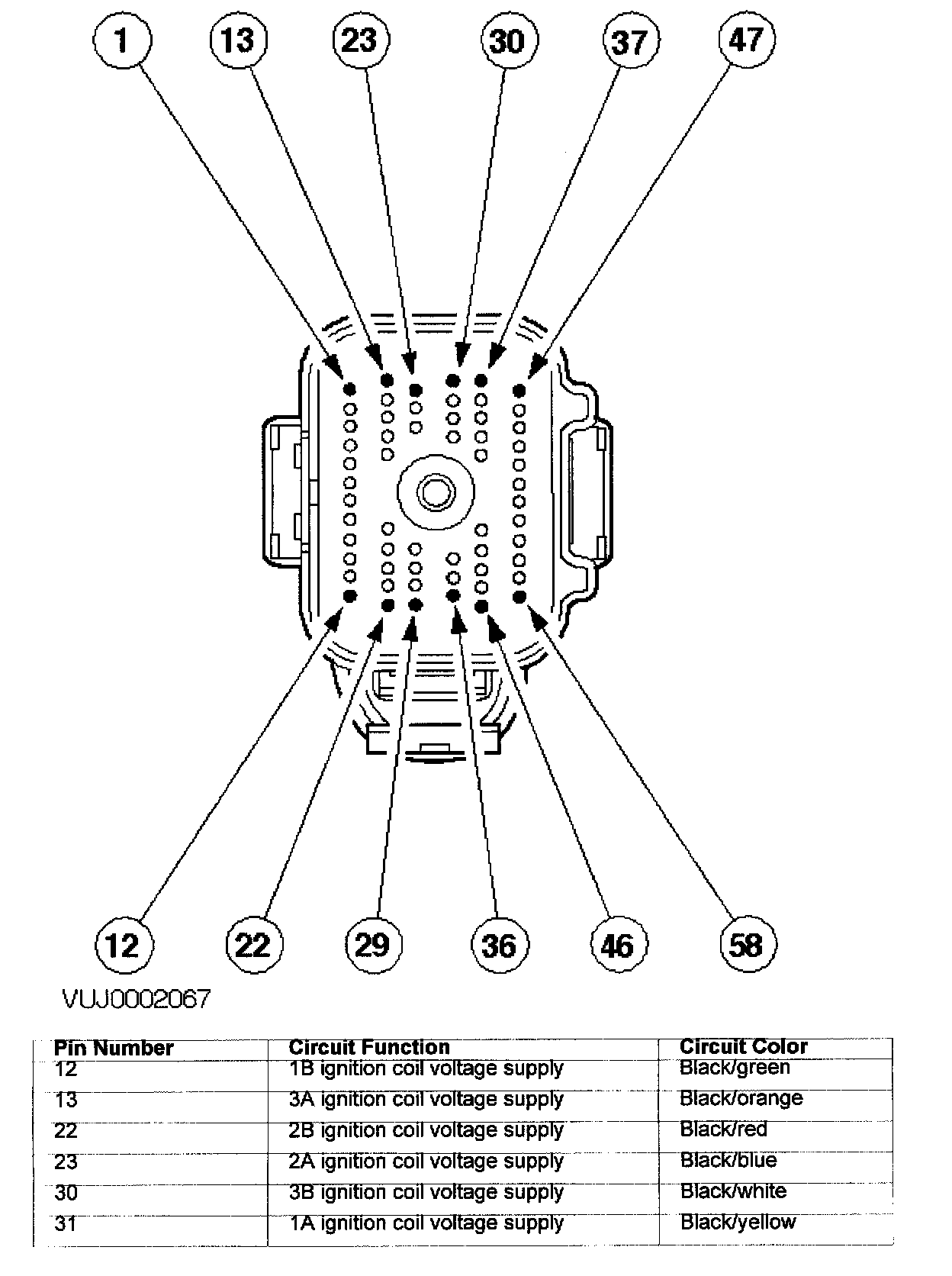

Powertrain Control Module Harness Connector:





1A Ignition Coil Harness Connector:





2A Ignition Coil Harness Connector:





3A Ignition Coil Harness Connector:





1B Ignition Coil Harness Connector:





2B Ignition Coil Harness Connector:





3B Ignition Coil Harness Connector:
