Control Assembly: Service and Repair

Removal
1. Remove the center control stack. Service and Repair

NOTE: When the battery is disconnected and reconnected all previous panel settings and fault codes will be lost. It is necessary to record any non-standard settings or fault codes before battery disconnection to prevent customer complaint and carry out correct diagnosis.

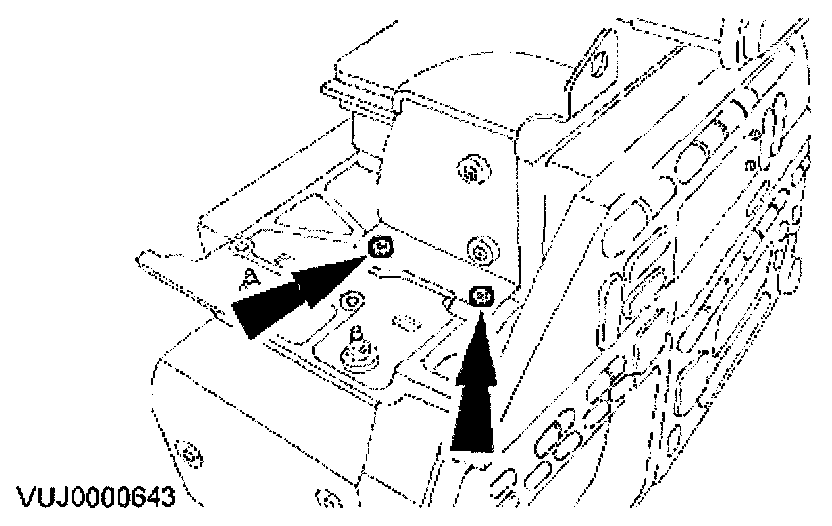

2. Remove the control assembly screws.

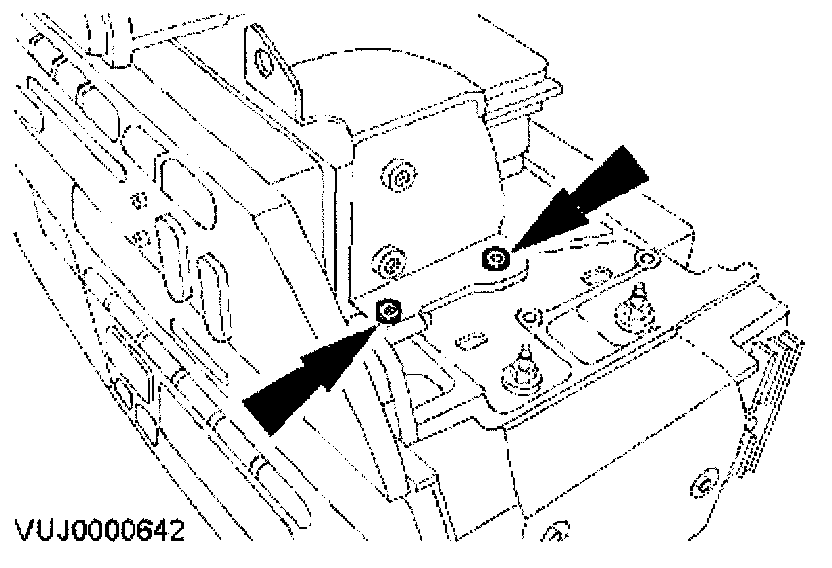

3. Remove the control assembly screws.





4. Remove the control assembly.


Installation
1. To install, reverse the removal procedure.
