System Pressure Fault Classification

System Pressure Fault Classification

NOTE: If erratic or unusual gauge movements occur, check the equipment against a known (calibrated) manifold gauge set.

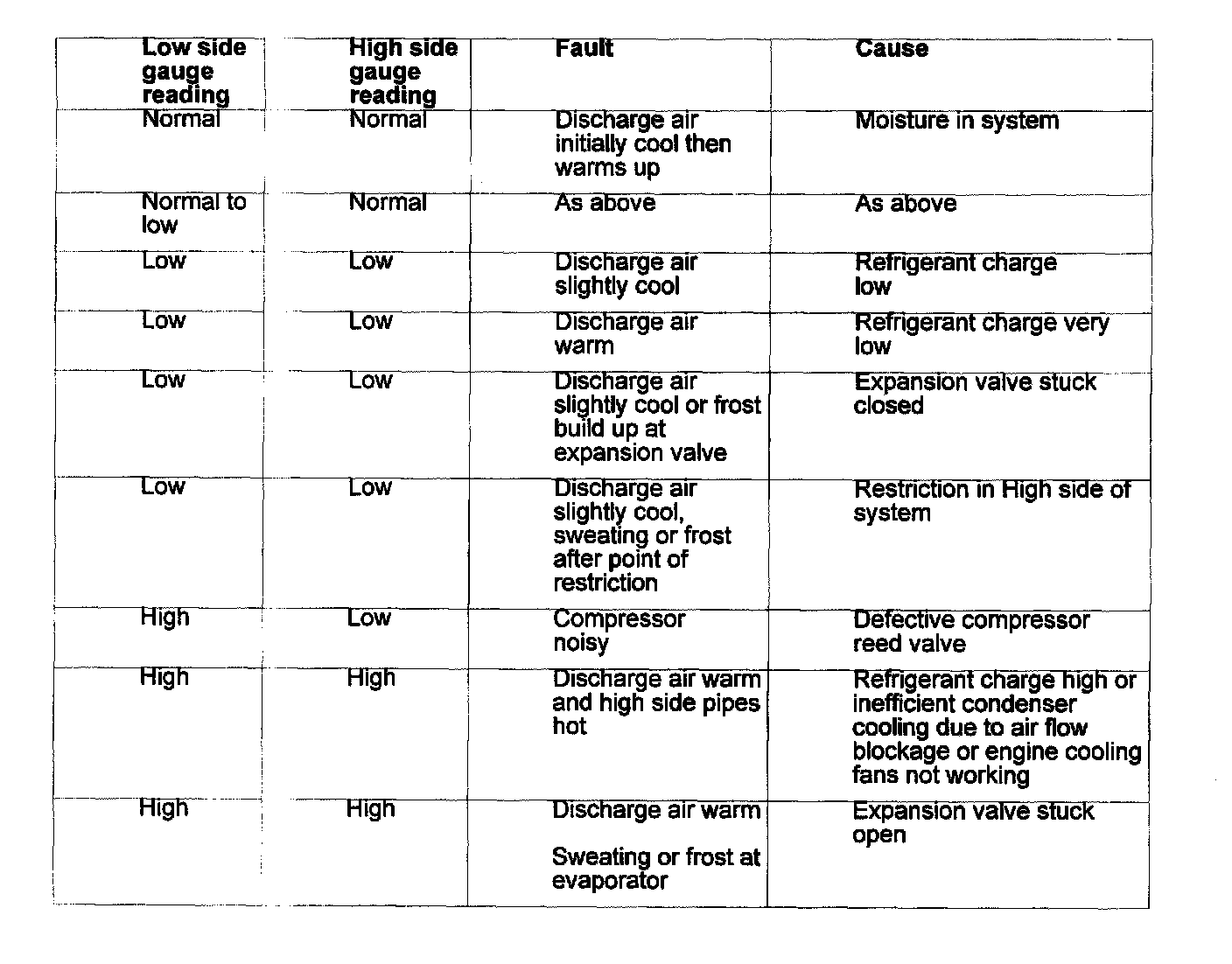

This table should be used in conjunction with the graphical representations of "High side" pressure / ambient temperature and "Low side" pressure / evaporator temperature.
