Removal & Installation (XK8)

  1. Remove battery cover and disconnect negative battery cable. Release cover from fuse/relay box. See Fig 1 . Release latch and remove fuse/relay panel from mounting box.
  2. Lift fuse/relay panel, note position of wiring harness connectors, and disconnect wiring harness from security control module. Remove bolts and security control module from fuse/relay panel. To install, reverse removal procedure.

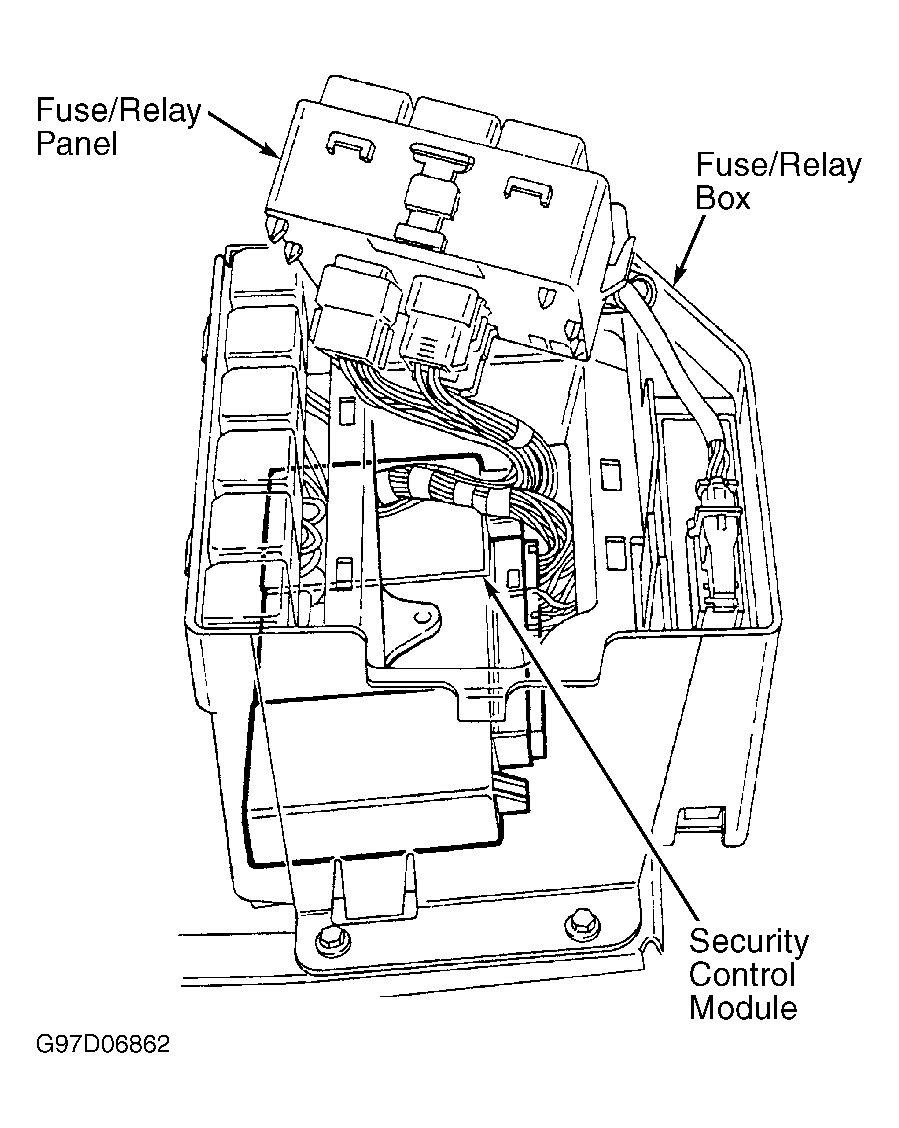

Fig 1: Removing Fuse/Relay Panel (XK8)
G97D06862Courtesy of JAGUAR CARS, INC.
