Catalyst Monitor Sensor RH: Installation

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the wiring harness is not twisted or damaged on installation. Failure to follow this instruction may result in damage to the vehicle.

NOTE: Left-hand shown, right-hand similar.

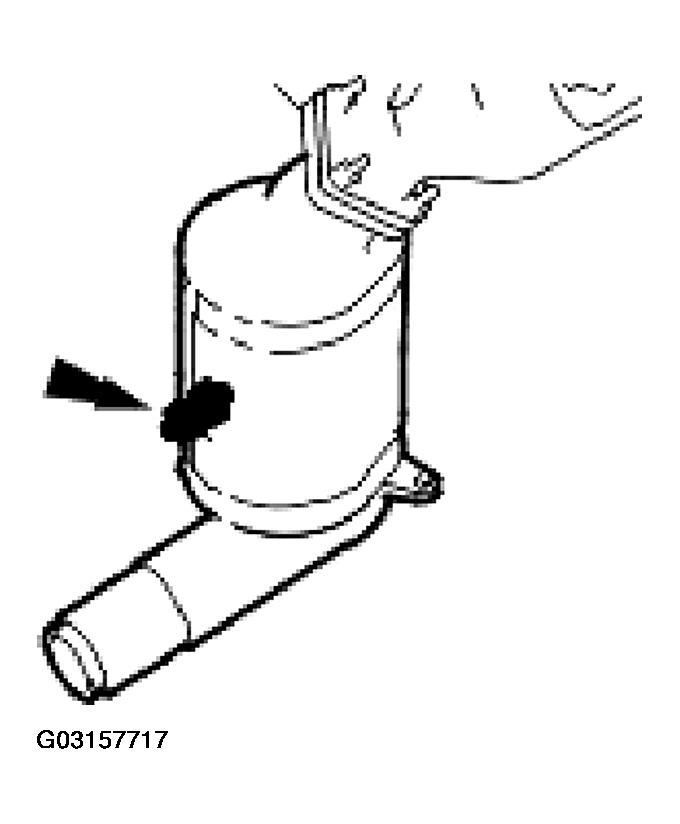

Fig 1: Installing Catalyst Monitor Sensor

Courtesy of JAGUAR CARS, INC.

To install, reverse the removal procedure.
- Tighten to 45 Nm.
